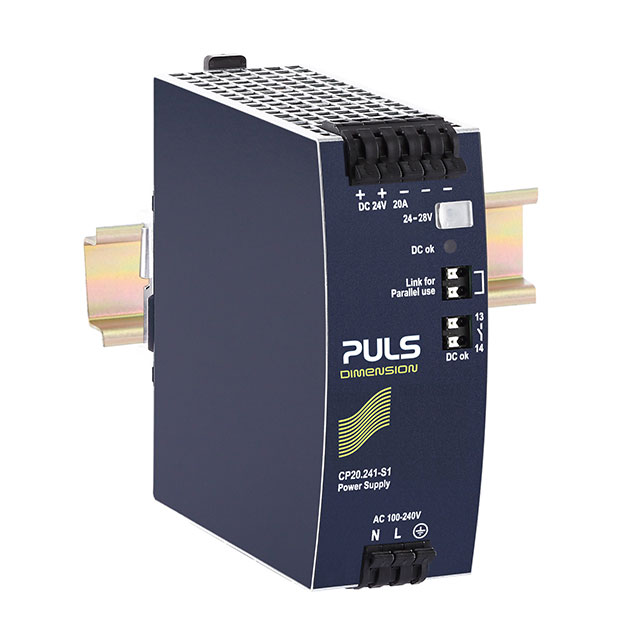

CP20.241-S1 - CP20.241-S1

CP20.241-S1

Active
PULS, LP

AC/DC DIN RAIL SUPPLY 24V 480W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
CP20.241-S1 - CP20.241-S1

CP20.241-S1

Active
PULS, LP

AC/DC DIN RAIL SUPPLY 24V 480W

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationCP20.241-S1CP20 Series
AC Voltage - Input [Max]264 VAC264 VAC
AC Voltage - Input [Min]85 VAC85 VAC
ApplicationsITE (Commercial), Industrial, Hazardous LocationsIndustrial, ITE (Commercial), Hazardous Locations
Approval AgencyIECEx, IEC, ATEX, UL, EACIECEx, IEC, ATEX, UL, EAC, cULus, CE
Current - Output (Max) [Max]20 A20 A
DC Voltage - Input (Max)-150 V
DC Voltage - Input (Max) [custom]180 V180 V
DC Voltage - Input (Min) [Min]88 V88 - 110 V
Efficiency95.6 %93.8 - 95.6 %
FeaturesPFC, Adjustable Output, Universal InputPFC, Universal Input, Load Sharing, Adjustable Output, IP20, Remote On/Off
Input TypeAC or DCAC or DC
Number of Outputs11
Operating Temperature [Max]70 °C70 °C
Operating Temperature [Min]-25 °C-25 °C
Power (Watts)480 W480 W
Size / Dimension [x]127 mm127 mm
Size / Dimension [x]5 in5 in
Size / Dimension [y]48 mm48 mm
Size / Dimension [y]1.89 in1.89 in
Size / Dimension [z]4.88 "4.88 "
Size / Dimension [z]124 mm124 mm
Standard Number61010-2-201, Class I Div 261010-2-201, Class I Div 2
Voltage - Isolation-500 - 3000 V
Voltage - Output 124 V24 V

CP20 Series

AC/DC DIN RAIL SUPPLY 24V 480W

PartInput TypeOperating Temperature [Min]Operating Temperature [Max]Standard NumberVoltage - IsolationPower (Watts)AC Voltage - Input [Min]AC Voltage - Input [Max]Approval AgencyApplicationsNumber of OutputsEfficiencyVoltage - Output 1DC Voltage - Input (Max) [Max]DC Voltage - Input (Min) [Min]FeaturesCurrent - Output (Max) [Max]Size / Dimension [z]Size / Dimension [y]Size / Dimension [z]Size / Dimension [x]Size / Dimension [y]Size / Dimension [x]DC Voltage - Input (Max) [custom]
PULS, LP
CP20.241-S2
AC or DC
-25 °C
70 °C
61010-2-201, Class I Div 2
500 V
480 W
85 VAC
264 VAC
ATEX, EAC, IEC, IECEx, UL
Industrial, ITE (Commercial)
1
94.2 %
24 V
150 V
110 V
Adjustable Output, IP20, Load Sharing, PFC, Universal Input
20 A
4.88 "
48 mm
124 mm
127 mm
1.89 in
5 in
PULS, LP
CP20.242
AC or DC
-25 °C
70 °C
61010-2-201
500 V
480 W
85 VAC
264 VAC
EAC, IEC, UL
Industrial, ITE (Commercial)
1
94.2 %
24 V
150 V
110 V
Adjustable Output, IP20, Load Sharing, PFC, Universal Input
20 A
4.88 "
48 mm
124 mm
127 mm
1.89 in
5 in
PULS, LP
CP20.241-R2-C1
AC or DC
500 V
480 W
85 VAC
264 VAC
CE, cULus, EAC
Industrial, ITE (Commercial)
1
93.8 %
24 V
150 V
110 V
Adjustable Output, IP20, Load Sharing, PFC, Universal Input
20 A
4.88 "
48 mm
124 mm
127 mm
1.89 in
5 in
PULS, LP
CP20.241-S1
AC or DC
-25 °C
70 °C
61010-2-201, Class I Div 2
480 W
85 VAC
264 VAC
ATEX, EAC, IEC, IECEx, UL
Hazardous Locations, Industrial, ITE (Commercial)
1
95.6 %
24 V
88 V
Adjustable Output, PFC, Universal Input
20 A
4.88 "
48 mm
124 mm
127 mm
1.89 in
5 in
180 V
PULS, LP
CP20.241
AC or DC
-25 °C
70 °C
61010-2-201, Class I Div 2
480 W
85 VAC
264 VAC
ATEX, EAC, IEC, IECEx, UL
Hazardous Locations, ITE (Commercial)
1
95.6 %
24 V
150 V
110 V
Adjustable Output, PFC, Universal Input
20 A
4.88 "
48 mm
124 mm
127 mm
1.89 in
5 in
PULS, LP
CP20.241-C1
AC or DC
-25 °C
70 °C
61010-2-201, Class I Div 2
3000 V
480 W
85 VAC
264 VAC
ATEX, EAC, IEC, IECEx, UL
Hazardous Locations, Industrial, ITE (Commercial)
1
95.6 %
24 V
88 V
Adjustable Output, PFC, Universal Input
20 A
4.88 "
48 mm
124 mm
127 mm
1.89 in
5 in
180 V
PULS, LP
CP20.241-R1
AC or DC
-25 °C
70 °C
61010-2-201, Class I Div 2
480 W
85 VAC
264 VAC
ATEX, EAC, IEC, IECEx, UL
Hazardous Locations, Industrial, ITE (Commercial)
1
95.2 %
24 V
88 V
Adjustable Output, PFC, Universal Input
20 A
4.88 "
48 mm
124 mm
127 mm
1.89 in
5 in
180 V
PULS, LP
CP20.241-R2
AC or DC
-25 °C
70 °C
61010-2-201, Class I Div 2
480 W
85 VAC
264 VAC
ATEX, EAC, IEC, IECEx, UL
Hazardous Locations, Industrial, ITE (Commercial)
1
95.2 %
24 V
88 V
Adjustable Output, PFC, Universal Input
20 A
4.88 "
48 mm
124 mm
127 mm
1.89 in
5 in
180 V
PULS, LP
CP20.241-V1
AC or DC
-25 °C
70 °C
61010-2-201, Class I Div 2
480 W
85 VAC
264 VAC
ATEX, EAC, IEC, IECEx, UL
Hazardous Locations, Industrial, ITE (Commercial)
1
95.6 %
24 V
88 V
Adjustable Output, PFC, Remote On/Off, Universal Input
20 A
4.88 "
48 mm
124 mm
127 mm
1.89 in
5 in
180 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 486.00

Description

General part information

CP20 Series

AC/DC DIN RAIL SUPPLY 24V 480W
