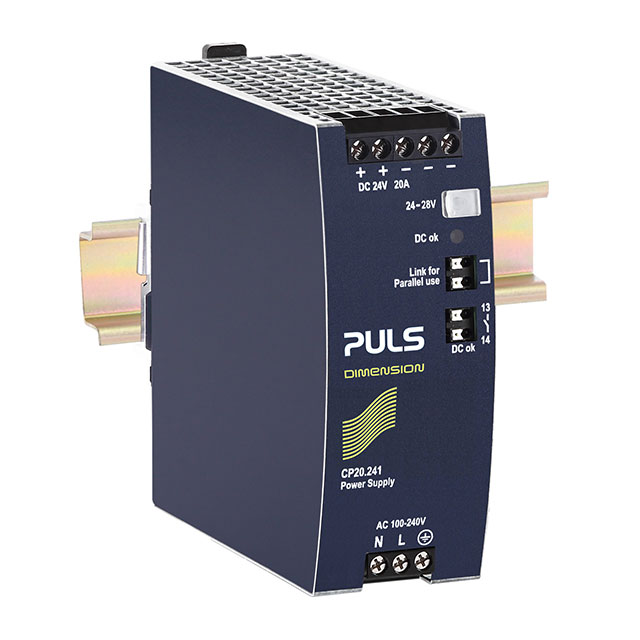

CP20.241-C1

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 480W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CP20.241-C1

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 480W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 540.00

Description

General part information

CP20 Series

AC/DC DIN RAIL SUPPLY 24V 480W

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CP20.241-C1	CP20 Series

AC Voltage - Input [Max]	264 VAC	264 VAC
AC Voltage - Input [Min]	85 VAC	85 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations	Industrial, ITE (Commercial), Hazardous Locations
Approval Agency	IECEx, IEC, ATEX, UL, EAC	IECEx, IEC, ATEX, UL, EAC, cULus, CE
Current - Output (Max) [Max]	20 A	20 A
DC Voltage - Input (Max)	-	150 V
DC Voltage - Input (Max) [custom]	180 V	180 V
DC Voltage - Input (Min) [Min]	88 V	88 - 110 V
Efficiency	95.6 %	93.8 - 95.6 %
Features	PFC, Adjustable Output, Universal Input	PFC, Universal Input, Load Sharing, Adjustable Output, IP20, Remote On/Off
Input Type	AC or DC	AC or DC
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Power (Watts)	480 W	480 W
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [x]	5 in	5 in
Size / Dimension [y]	48 mm	48 mm
Size / Dimension [y]	1.89 in	1.89 in
Size / Dimension [z]	4.88 "	4.88 "
Size / Dimension [z]	124 mm	124 mm
Standard Number	61010-2-201, Class I Div 2	61010-2-201, Class I Div 2
Voltage - Isolation	3000 V	500 - 3000 V
Voltage - Output 1	24 V	24 V

CP20 Series

AC/DC DIN RAIL SUPPLY 24V 480W

Part	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Voltage - Isolation	Power (Watts)	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Approval Agency	Applications	Number of Outputs	Efficiency	Voltage - Output 1	DC Voltage - Input (Max) [Max]	DC Voltage - Input (Min) [Min]	Features	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	DC Voltage - Input (Max) [custom]
PULS, LP CP20.241-S2	AC or DC	-25 °C	70 °C	61010-2-201, Class I Div 2	500 V	480 W	85 VAC	264 VAC	ATEX, EAC, IEC, IECEx, UL	Industrial, ITE (Commercial)	1	94.2 %	24 V	150 V	110 V	Adjustable Output, IP20, Load Sharing, PFC, Universal Input	20 A	4.88 "	48 mm	124 mm	127 mm	1.89 in	5 in
PULS, LP CP20.242	AC or DC	-25 °C	70 °C	61010-2-201	500 V	480 W	85 VAC	264 VAC	EAC, IEC, UL	Industrial, ITE (Commercial)	1	94.2 %	24 V	150 V	110 V	Adjustable Output, IP20, Load Sharing, PFC, Universal Input	20 A	4.88 "	48 mm	124 mm	127 mm	1.89 in	5 in
PULS, LP CP20.241-R2-C1	AC or DC				500 V	480 W	85 VAC	264 VAC	CE, cULus, EAC	Industrial, ITE (Commercial)	1	93.8 %	24 V	150 V	110 V	Adjustable Output, IP20, Load Sharing, PFC, Universal Input	20 A	4.88 "	48 mm	124 mm	127 mm	1.89 in	5 in
PULS, LP CP20.241-S1	AC or DC	-25 °C	70 °C	61010-2-201, Class I Div 2		480 W	85 VAC	264 VAC	ATEX, EAC, IEC, IECEx, UL	Hazardous Locations, Industrial, ITE (Commercial)	1	95.6 %	24 V		88 V	Adjustable Output, PFC, Universal Input	20 A	4.88 "	48 mm	124 mm	127 mm	1.89 in	5 in	180 V
PULS, LP CP20.241	AC or DC	-25 °C	70 °C	61010-2-201, Class I Div 2		480 W	85 VAC	264 VAC	ATEX, EAC, IEC, IECEx, UL	Hazardous Locations, ITE (Commercial)	1	95.6 %	24 V	150 V	110 V	Adjustable Output, PFC, Universal Input	20 A	4.88 "	48 mm	124 mm	127 mm	1.89 in	5 in
PULS, LP CP20.241-C1	AC or DC	-25 °C	70 °C	61010-2-201, Class I Div 2	3000 V	480 W	85 VAC	264 VAC	ATEX, EAC, IEC, IECEx, UL	Hazardous Locations, Industrial, ITE (Commercial)	1	95.6 %	24 V		88 V	Adjustable Output, PFC, Universal Input	20 A	4.88 "	48 mm	124 mm	127 mm	1.89 in	5 in	180 V
PULS, LP CP20.241-R1	AC or DC	-25 °C	70 °C	61010-2-201, Class I Div 2		480 W	85 VAC	264 VAC	ATEX, EAC, IEC, IECEx, UL	Hazardous Locations, Industrial, ITE (Commercial)	1	95.2 %	24 V		88 V	Adjustable Output, PFC, Universal Input	20 A	4.88 "	48 mm	124 mm	127 mm	1.89 in	5 in	180 V
PULS, LP CP20.241-R2	AC or DC	-25 °C	70 °C	61010-2-201, Class I Div 2		480 W	85 VAC	264 VAC	ATEX, EAC, IEC, IECEx, UL	Hazardous Locations, Industrial, ITE (Commercial)	1	95.2 %	24 V		88 V	Adjustable Output, PFC, Universal Input	20 A	4.88 "	48 mm	124 mm	127 mm	1.89 in	5 in	180 V
PULS, LP CP20.241-V1	AC or DC	-25 °C	70 °C	61010-2-201, Class I Div 2		480 W	85 VAC	264 VAC	ATEX, EAC, IEC, IECEx, UL	Hazardous Locations, Industrial, ITE (Commercial)	1	95.6 %	24 V		88 V	Adjustable Output, PFC, Remote On/Off, Universal Input	20 A	4.88 "	48 mm	124 mm	127 mm	1.89 in	5 in	180 V
