5218559F

Active

DIALIGHT

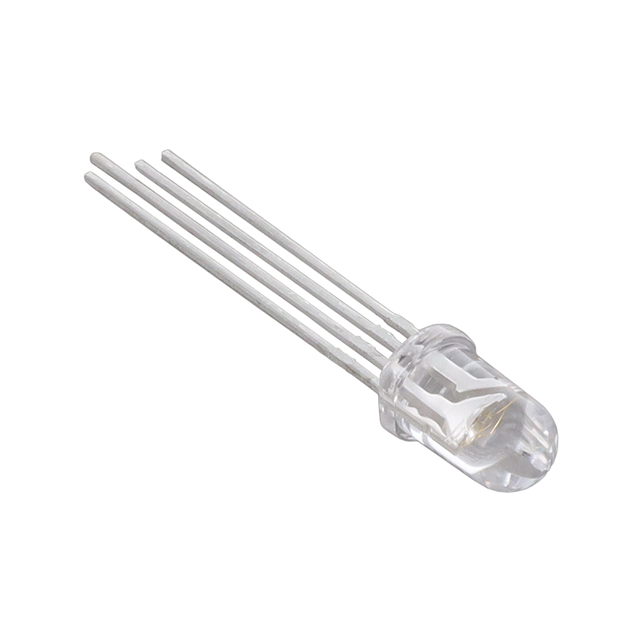

LED RGB CLEAR 5MM T/H

Search across all available documentation for this part.

Active

DIALIGHT

LED RGB CLEAR 5MM T/H

Technical Specifications

Parameters and characteristics for this part

Specification	5218559F

Color	Red, Green, Blue
Configuration	Common Anode
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Height (Max) [Max] [z]	8.6 mm
Lens Size [diameter]	5 mm Dia
Lens Style	Round with Domed Top
Lens Transparency	Clear
Millicandela Rating [custom]	1900 mcd
Millicandela Rating [custom]	2500 mcd
Millicandela Rating [custom]	1450 mcd
Mounting Type	Through Hole
Package / Case	Radial - 4 Leads
Size / Dimension [diameter]	5 mm
Supplier Device Package	5 mm
Viewing Angle	50 °
Voltage - Forward (Vf) (Typ) [custom]	3.2 V
Voltage - Forward (Vf) (Typ) [custom]	2.2 V
Voltage - Forward (Vf) (Typ) [custom]	3.3 V
Wavelength - Dominant	525 nm, 625 nm, 470 nm
Wavelength - Peak	525 nm, 470 nm, 634 nm

LED RGB CLEAR 5MM T/H

Part	Color	Size / Dimension [diameter]	Lens Size [diameter]	Wavelength - Peak	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Dominant	Height (Max) [Max] [z]	Lens Style	Package / Case	Mounting Type	Configuration	Lens Transparency	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Supplier Device Package	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Viewing Angle
DIALIGHT 5218559F	Blue, Green, Red	5 mm	5 mm Dia	470 nm, 525 nm, 634 nm	1900 mcd	2500 mcd	1450 mcd	470 nm, 525 nm, 625 nm	8.6 mm	Round with Domed Top	Radial - 4 Leads	Through Hole	Common Anode	Clear	3.2 V	2.2 V	3.3 V	5 mm	20 mA	20 mA	20 mA	50 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red, Green, Blue (RGB) 625nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2.2V Red, 3.2V Green, 3.3V Blue Radial - 4 Leads
