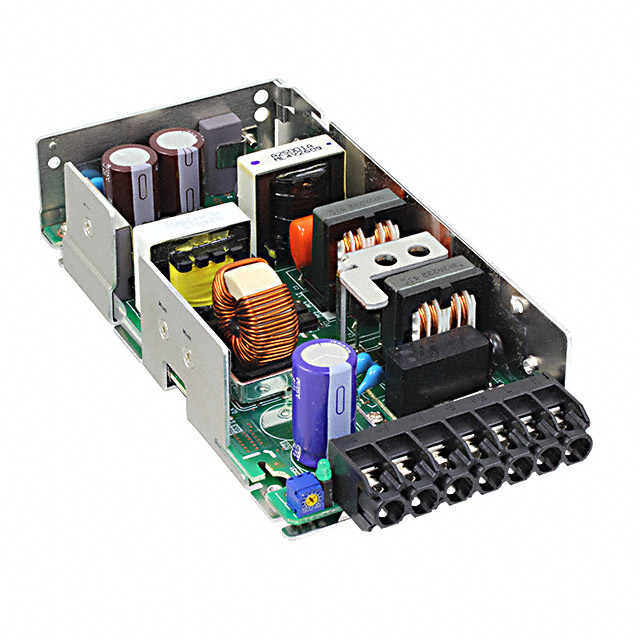

HWS150A-48/ME

Active

TDK-LAMBDA

AC/DC CONVERTER 48V 150W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HWS150A-48/ME

Active

TDK-LAMBDA

AC/DC CONVERTER 48V 150W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HWS150A-48/ME

Applications	ITE (Commercial), Medical
Approval Agency	CE
Current - Output 1	3.3 A
Efficiency	91 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	150 W
Size / Dimension	82 mm, 160 mm, 42 mm
Size / Dimension	41.91 mm, 3.23 in, 6.3 in
Type	Open Frame
Voltage - Input [Max]	265 VAC
Voltage - Input [Min]	85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

HWS150 Series

Part	Size / Dimension	Size / Dimension	Approval Agency	Applications	Type	Efficiency	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Isolation	Number of Outputs	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current - Output 1	Features	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]
TDK-LAMBDA HWS150A-24/ME	42 mm 82 mm 160 mm	3.23 in 6.3 in 41.91 mm	CE	ITE (Commercial) Medical	Open Frame	90 %	24 V	85 VAC	265 VAC	3000 V	1	150 W	-10 °C	70 °C	Chassis Mount
TDK-LAMBDA HWS150A-5/ME	42 mm 82 mm 160 mm	3.23 in 6.3 in 41.91 mm	CE	ITE (Commercial) Medical	Open Frame	87 %	5 V	85 VAC	265 VAC	3000 V	1	150 W	-10 °C	70 °C	Chassis Mount	30 A
TDK-LAMBDA HWS150A-48/ME	42 mm 82 mm 160 mm	3.23 in 6.3 in 41.91 mm	CE	ITE (Commercial) Medical	Open Frame	91 %	48 V	85 VAC	265 VAC	3000 V	1	150 W	-10 °C	70 °C	Chassis Mount	3.3 A
TDK-LAMBDA HWS150A-24			CE	Industrial ITE (Commercial)	Open Frame	90 %	24 V	85 VAC 120 VDC	264 VAC 370 VDC	3000 V	1	150 W	-10 °C	70 °C	Chassis Mount		Adjustable Output Remote Sense Universal Input	6.3 "	160 mm	42 mm	1.65 in	82 mm	3.23 in
TDK-LAMBDA HWS150A-48			CE	Industrial ITE (Commercial)	Open Frame	91 %	48 V	85 VAC 120 VDC	264 VAC 370 VDC	3000 V	1	150 W	-10 °C	70 °C	Chassis Mount	3.3 A	Adjustable Output Remote Sense Universal Input	6.3 "	160 mm	42 mm	1.65 in	82 mm	3.23 in
TDK-LAMBDA HWS150A-3/A			CE	Industrial ITE (Commercial)	Enclosed	81 %	3.3 V	85 VAC 120 VDC	264 VAC 370 VDC	3000 V	1	150 W	-10 °C	70 °C	Chassis Mount	30 A	Adjustable Output Remote Sense Universal Input	6.3 "	160 mm	41.9 mm	1.65 in	82 mm	3.23 in
TDK-LAMBDA HWS150A-12/A			CE	Industrial ITE (Commercial)	Enclosed	86 %	12 V	85 VAC 120 VDC	264 VAC 370 VDC	3000 V	1	150 W	-10 °C	70 °C	Chassis Mount	13 A	Adjustable Output Remote Sense Universal Input	6.3 "	160 mm	41.9 mm	1.65 in	82 mm	3.23 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 151.76
		10	$ 144.01
		25	$ 135.15
		50	$ 132.80

Description

General part information

HWS150 Series

Open Frame AC DC Converters 1 Output 48V 85 ~ 265 VAC Input

Documents

Technical documentation and resources
