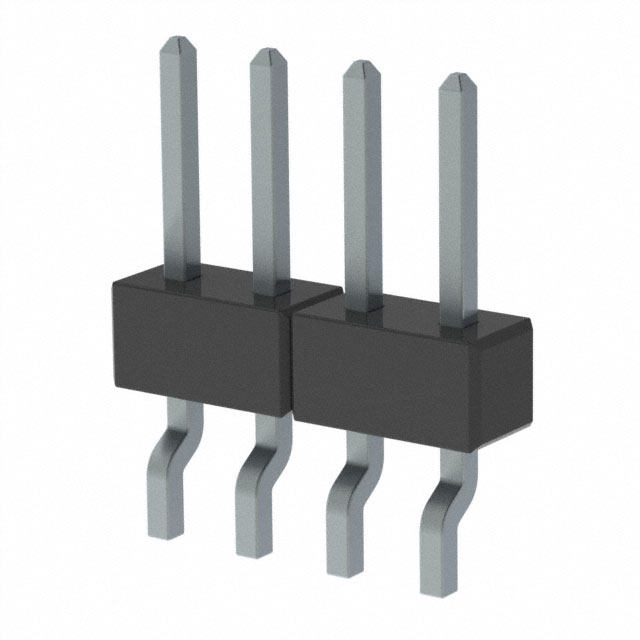

MMT-104-02-T-SH-K

Active

Samtec Inc.

CONN HEADER SMD R/A 4POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

MMT-104-02-T-SH-K

Active

Samtec Inc.

CONN HEADER SMD R/A 4POS 2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MMT-104-02-T-SH-K

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	4.45 mm
Contact Length - Mating	0.175 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.079 in
Insulation Height	2 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

MMT-120 Series

Headers & Wire Housings 2.00 mm Horizontal Surface Mount Terminal Strip

...

Part	Number of Rows	Number of Positions Loaded	Contact Finish - Post	Shrouding	Features	Number of Positions	Contact Length - Mating	Contact Length - Mating	Mounting Type	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Contact Type	Style	Connector Type	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [custom]	Insulation Height [custom]	Current Rating (Amps)	Contact Finish - Mating	Fastening Type	Insulation Color	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height
Samtec Inc. MMT-109-01-F-DH-P-TR	2	All	Tin	Unshrouded	Pick and Place	18	3.2 mm	0.126 "	Surface Mount Right Angle	Solder	0.079 in	2 mm	Male Pin	Board to Board Cable	Header	UL94 V-0	3 µin	0.076 µm	0.157 in	4 mm	3 A	Gold	Push-Pull	Black	Square	0.079 in	2 mm	Liquid Crystal Polymer (LCP)	Phosphor Bronze	-55 °C	125 °C
Samtec Inc. MMT-110-01-L-SV-A-P-TR	1	All	Tin	Unshrouded	Board Guide Pick and Place	10	3.2 mm	0.126 "	Surface Mount	Solder	0.079 in	2 mm	Male Pin	Board to Board Cable	Header	UL94 V-0	10 çin	0.25 çm			3 A	Gold	Push-Pull	Black	Square			Liquid Crystal Polymer (LCP)	Phosphor Bronze	-55 °C	125 °C	0.079 in	2 mm
Samtec Inc. MMT-104-02-T-SH-K	1	All	Tin	Unshrouded	Pick and Place	4	4.45 mm	0.175 in	Surface Mount Right Angle	Solder	0.079 in	2 mm	Male Pin	Board to Board Cable	Header	UL94 V-0					3 A		Push-Pull	Black	Square			Liquid Crystal Polymer (LCP)	Phosphor Bronze	-55 °C	105 ░C	0.079 in	2 mm
Samtec Inc. MMT-102-01-S-DH	2	All	Tin	Unshrouded		4	3.2 mm	0.126 "	Surface Mount Right Angle	Solder	0.079 in	2 mm	Male Pin	Board to Board Cable	Header	UL94 V-0	30 Áin	0.76 Ám	0.157 in	4 mm	3 A	Gold	Push-Pull	Black	Square	0.079 in	2 mm	Liquid Crystal Polymer (LCP)	Phosphor Bronze	-55 °C	125 °C
Samtec Inc. MMT-122-01-F-DH-P-TR	2	All	Tin	Unshrouded	Pick and Place	44	3.2 mm	0.126 "	Surface Mount Right Angle	Solder	0.079 in	2 mm	Male Pin	Board to Board Cable	Header	UL94 V-0	3 µin	0.076 µm	0.157 in	4 mm	3 A	Gold	Push-Pull	Black	Square	0.079 in	2 mm	Liquid Crystal Polymer (LCP)	Phosphor Bronze	-55 °C	125 °C
Samtec Inc. MMT-110-01-TM-DH-A-P-TR	2	All	Tin	Unshrouded	Board Guide Pick and Place	20	3.2 mm	0.126 "	Surface Mount Right Angle	Solder	0.079 in	2 mm	Male Pin	Board to Board Cable	Header	UL94 V-0			0.157 in	4 mm	3 A		Push-Pull	Black	Square	0.079 in	2 mm	Liquid Crystal Polymer (LCP)	Phosphor Bronze	-55 °C	105 ░C
Samtec Inc. MMT-107-02-F-MT-K-TR	2	All	Tin	Unshrouded	Pick and Place	14	4.45 mm	0.175 in	Surface Mount Right Angle Through Hole	Solder	0.079 in	2 mm	Male Pin	Board to Board Cable	Header	UL94 V-0	3 µin	0.076 µm	0.157 in	4 mm	3 A	Gold	Push-Pull	Black	Square	0.079 in	2 mm	Liquid Crystal Polymer (LCP)	Phosphor Bronze	-55 °C	125 °C
Samtec Inc. MMT-110-02-LM-SH-A	1	All	Tin	Unshrouded	Board Guide	10	4.45 mm	0.175 in	Surface Mount Right Angle	Solder	0.079 in	2 mm	Male Pin	Board to Board Cable	Header	UL94 V-0	10 çin	0.25 çm			3 A	Gold	Push-Pull	Black	Square			Liquid Crystal Polymer (LCP)	Phosphor Bronze	-55 °C	125 °C	0.079 in	2 mm
Samtec Inc. MMT-118-01-T-DH	2	All	Tin	Unshrouded		36	3.2 mm	0.126 "	Surface Mount Right Angle	Solder	0.079 in	2 mm	Male Pin	Board to Board Cable	Header	UL94 V-0			0.157 in	4 mm	3 A		Push-Pull	Black	Square	0.079 in	2 mm	Liquid Crystal Polymer (LCP)	Phosphor Bronze	-55 °C	105 ░C
Samtec Inc. MMT-109-01-S-SH	1	All	Tin	Unshrouded		9	3.2 mm	0.126 "	Surface Mount Right Angle	Solder	0.079 in	2 mm	Male Pin	Board to Board Cable	Header	UL94 V-0	30 Áin	0.76 Ám			3 A	Gold	Push-Pull	Black	Square			Liquid Crystal Polymer (LCP)	Phosphor Bronze	-55 °C	125 °C	0.079 in	2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.43

Description

General part information

MMT-120 Series

Headers & Wire Housings 2.00 mm Horizontal Surface Mount Terminal Strip

Documents

Technical documentation and resources

No documents available
