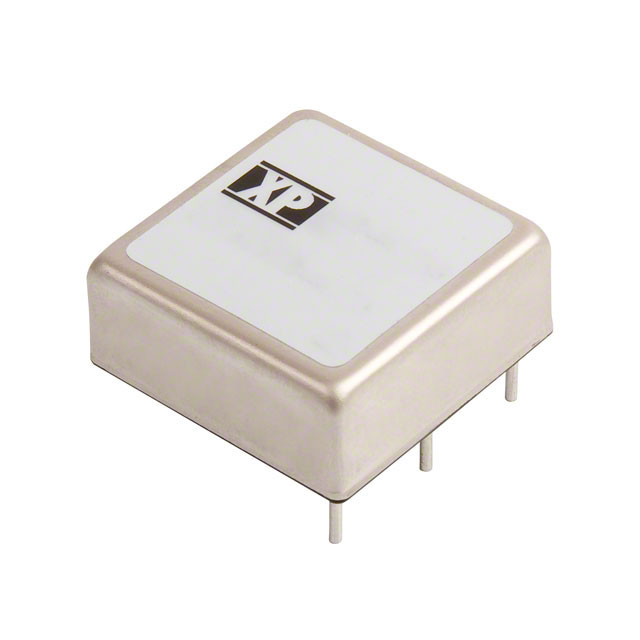

JCM1524S05
ActiveXP POWER
DC DC CONVERTER 5V 15W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JCM1524S05
ActiveXP POWER
DC DC CONVERTER 5V 15W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JCM1524S05 |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 3 A |
| Efficiency | 87 % |
| Features | OVP, OCP, Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 1 in |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.39 in |
| Size / Dimension [z] | 9.9 mm |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.6 kV |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 33.83 | |
| 5 | $ 32.82 | |||
| 10 | $ 31.80 | |||
| 25 | $ 30.45 | |||
| 100 | $ 28.42 | |||
Description
General part information
JCM1524 Series
Isolated Module DC DC Converter 1 Output 5V 3A 18V - 36V Input
