1932 BK003

Active

ALPHA WIRE

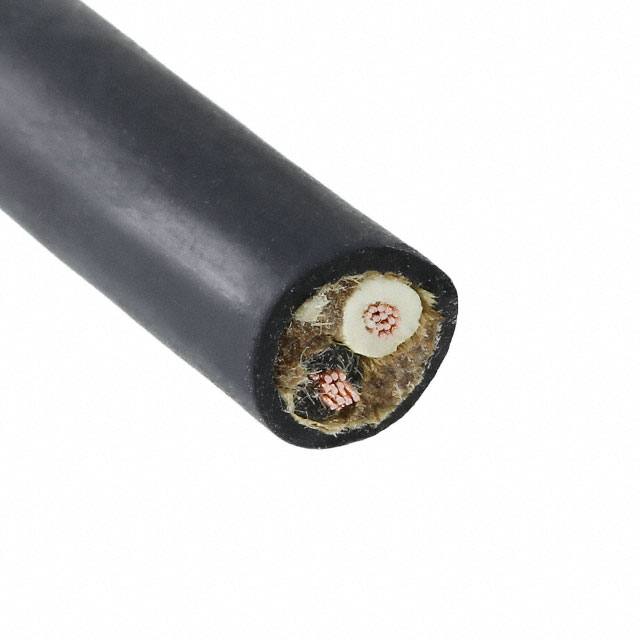

CABLE 2COND 18AWG BLACK 50'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 2COND 18AWG BLACK 50'

Technical Specifications

Parameters and characteristics for this part

Specification	1932 BK003

Cable Type	Multi-Conductor
Conductor Insulation	Rubber
Conductor Material	Copper, Bare
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	7.47 mm
Jacket (Insulation) Diameter [diameter]	0.294 in
Jacket (Insulation) Material	Polyethylene (PE)
Jacket (Insulation) Thickness	0.864 mm
Jacket (Insulation) Thickness	0.034 in
Jacket Color	Black
Length	10 ft
Length	3.05 m, 15.24 m
Length [x]	30.5 m
Length [x]	100 ft, 50 ft
Number of Conductors	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Voltage	300 V
Wire Gauge	18 AWG

CABLE 2COND 18AWG BLACK 50'

Part	Jacket (Insulation) Material	Cable Type	Number of Conductors	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Jacket Color	Length	Length	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Conductor Insulation
ALPHA WIRE 1932 BK003	Polyethylene (PE)	Multi-Conductor	2	30.5 m	50 ft, 100 ft	16	30 AWG	300 V	90 °C	-40 °C	Black	10 ft	3.05 m, 15.24 m	Copper, Bare	0.864 mm	0.034 in	7.47 mm	0.294 in	18 AWG	Rubber

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Black 18 AWG 50.00' (15.24m)
