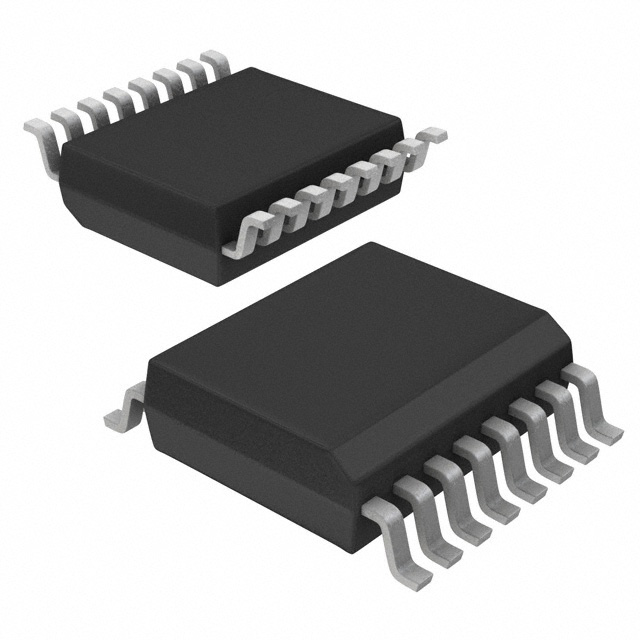

T0816M-TCQG19
ActiveMicrochip Technology
IC LASER DRVR 5.5V 16SSO
Deep-Dive with AI
Search across all available documentation for this part.
T0816M-TCQG19
ActiveMicrochip Technology
IC LASER DRVR 5.5V 16SSO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T0816M-TCQG19 | T0816 Series |
|---|---|---|
| Mounting Type | Surface Mount | Surface Mount |
| Number of Channels [custom] | 3 | 3 |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Package / Case | 16-LSSOP | 16-LSSOP, 16-VQFN Exposed Pad |
| Package / Case [x] | 0.154 in | 0.154 in |
| Package / Case [y] | 3.9 mm | 3.9 mm |
| Supplier Device Package | 16-SSO | 16-SSO, 16-QFN (4x4) |
| Type | Laser Diode Driver (CD/DVD) | Laser Diode Driver (CD/DVD) |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 4.5 V | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
T0816 Series
IC LASER DRVR 5.5V 16SSO
| Part | Type | Package / Case [x] | Package / Case | Package / Case [y] | Voltage - Supply [Min] | Voltage - Supply [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Channels [custom] | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology T0816M-TCQG19 | Laser Diode Driver (CD/DVD) | 0.154 in | 16-LSSOP | 3.9 mm | 4.5 V | 5.5 V | 70 °C | 0 °C | 3 | Surface Mount | 16-SSO |
Microchip Technology T0816-PEQG | Laser Diode Driver (CD/DVD) | 16-VQFN Exposed Pad | 4.5 V | 5.5 V | 70 °C | 0 °C | 3 | Surface Mount | 16-QFN (4x4) |
Description
General part information
T0816 Series
Laser Driver IC 3 Channel 4.5V ~ 5.5V 16-SSO
Documents
Technical documentation and resources
No documents available
