OD9238-24MBVXC10A

Active

Orion Fans

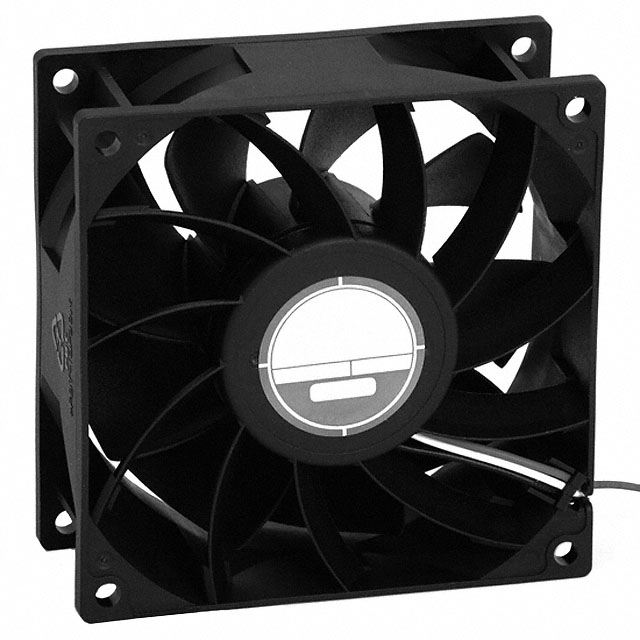

FAN AXIAL 92.5X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

OD9238-24MBVXC10A

Active

Orion Fans

FAN AXIAL 92.5X38MM 24VDC WIRE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	520	$ 15.51

Description

General part information

OD9238 Series

Fan Tubeaxial 24VDC Square - 92.5mm L x 92.5mm H Ball 118.0 CFM (3.30mł/min) 4 Wire Leads

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	OD9238-24MBVXC10A	OD9238 Series

Air Flow	118 CFM	76.5 - 174 CFM
Air Flow	3.3 m³/min	2.14 - 112 CFM
Air Flow	-	3.14 m³/min
Air Flow	-	109.2 CFM
Approval Agency	cURus, TUV	cURus, TUV, CE, UR
Bearing Type	Ball	Ball
Current Rating (Amps)	0.5 A	0.2 - 900 A
Fan Type	Tubeaxial	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach), PWM Control	Auto Restart, Speed Sensor (Tach), PWM Control, Locked Rotor Sensor
Ingress Protection	-	IP69K, IP68 - Dust Tight, Waterproof
Lifetime @ Temp.	50000 Hrs	50000 - 75000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	Polybutylene Terephthalate (PBT), Fiberglass Reinforced, Polybutylene Terephthalate (PBT)
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	55 dB	47 - 68 dB(A)
Operating Temperature	-	70 °C
Operating Temperature [Max]	70 °C	65 - 70 °C
Operating Temperature [Max]	70 °C	65 - 70 °C
Operating Temperature [Min]	-10 °C	-20 - -10 °C
Operating Temperature [Min]	-10 °C	-20 - -10 °C
Power (Watts)	11 W	4.8 - 42 W
RPM	4800 RPM	3500 - 8000 RPM
Size / Dimension [x]	92.5 mm	92.5 mm
Size / Dimension [z]	92.5 mm	92.5 mm
Static Pressure	0.59 in H2O	0.34 - 1.7 in H2O
Static Pressure	147 Pa	84.7 - 423.5 Pa
Termination	4 Wire Leads	3 Wire Leads, 4 Wire Leads, 2 Wire Leads
Voltage - Rated	24 VDC	12 - 24 VDC
Voltage - Rated	-	48 VDC
Voltage Range	-	13.2 - 26.4 VDC
Voltage Range	-	7 - 17 VDC
Weight	-	0.441 - 0.463 lb
Weight	-	200 - 210.01 g
Width [y]	38 mm	38 mm

OD9238 Series

FAN AXIAL 92.5X38MM 12VDC WIRE

Part	Approval Agency	Power (Watts)	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Noise	Material - Blade	Voltage - Rated	Width [y]	Fan Type	RPM	Bearing Type	Air Flow	Air Flow	Termination	Features	Size / Dimension [x]	Size / Dimension [z]	Material - Frame	Lifetime @ Temp.	Static Pressure	Static Pressure	Air Flow	Voltage - Rated [custom]
Orion Fans OD9238-12HHB-VXC01A	cURus, TUV	22 W	1.9 A	70 °C	70 °C	-10 °C	-10 °C	60 dB(A)	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	12 VDC	38 mm	Tubeaxial	7100 RPM	Ball	112 CFM	3.14 m³/min	3 Wire Leads	Auto Restart, Speed Sensor (Tach)	92.5 mm	92.5 mm	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	50000 Hrs	1.1 in H2O	274 Pa
Orion Fans OD9238-12HB-VXC5	cURus, TUV	16 W	1.3 A	70 °C	70 °C	-10 °C	-10 °C	58 dB(A)	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	12 VDC	38 mm	Tubeaxial	5400 RPM	Ball	3.78 mł/min		3 Wire Leads	Auto Restart, PWM Control	92.5 mm	92.5 mm	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	50000 Hrs	0.74 in H2O	184.3 Pa	135 CFM
Orion Fans OD9238-48HBVXC01A	CE, cURus, TUV, UR	16.8 W	0.35 A	70 °C	70 °C	-10 °C	-10 °C	61.2 dB(A)	Polybutylene Terephthalate (PBT)		38 mm	Tubeaxial	5400 RPM	Ball	3.5 m³/min		3 Wire Leads	Auto Restart, Speed Sensor (Tach)	92.5 mm	92.5 mm		75000 Hrs	0.75 in H2O	186.8 Pa	125 CFM	48 VDC
Orion Fans OD9238-12HHB-VXC5	cURus, TUV	22 W	1.9 A	70 °C	70 °C	-10 °C	-10 °C	60 dB(A)	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	12 VDC	38 mm	Tubeaxial	7100 RPM	Ball	112 CFM	3.14 m³/min	3 Wire Leads	Auto Restart, PWM Control	92.5 mm	92.5 mm	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	50000 Hrs	1.1 in H2O	274 Pa
Orion Fans OD9238-24LB-VXC10A	cURus, TUV	8 W		70 °C	70 °C	-10 °C	-10 °C	52 dB	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	24 VDC	38 mm	Tubeaxial	4400 RPM	Ball	3.02 m³/min		4 Wire Leads	Auto Restart, PWM Control, Speed Sensor (Tach)	92.5 mm	92.5 mm	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	50000 Hrs	0.5 in H2O	124.5 Pa	108 CFM
Orion Fans OD9238-12HBVXC02A	CE, cURus, TUV, UR	16.56 W	1.38 A	70 °C	70 °C	-10 °C	-10 °C	58.5 dB	Polybutylene Terephthalate (PBT)	12 VDC	38 mm	Tubeaxial	5400 RPM	Ball	3.78 mł/min		3 Wire Leads	Auto Restart, Locked Rotor Sensor	92.5 mm	92.5 mm		75000 Hrs	0.74 in H2O	184.3 Pa	135 CFM
Orion Fans OD9238-48MB-VXC10A	cURus, TUV	12 W		70 °C	70 °C	-10 °C	-10 °C	55 dB	Polybutylene Terephthalate (PBT), Fiberglass Reinforced		38 mm	Tubeaxial	4800 RPM	Ball	3.3 m³/min		4 Wire Leads	Auto Restart, PWM Control, Speed Sensor (Tach)	92.5 mm	92.5 mm	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	50000 Hrs	0.59 in H2O	147 Pa	118 CFM	48 VDC
Orion Fans OD9238-24HBVXC01A	cURus, TUV	16 W	0.7 A	70 °C	70 °C	-10 °C	-10 °C	58 dB(A)	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	24 VDC	38 mm	Tubeaxial	5400 RPM	Ball	3.78 mł/min		3 Wire Leads	Auto Restart, Speed Sensor (Tach)	92.5 mm	92.5 mm	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	50000 Hrs	0.74 in H2O	184.3 Pa	135 CFM
Orion Fans OD9238-12MBVXC10A	cURus, TUV	11 W	900 mA	70 °C	70 °C	-10 °C	-10 °C	55 dB	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	12 VDC	38 mm	Tubeaxial	4800 RPM	Ball	3.3 m³/min		4 Wire Leads	Auto Restart, PWM Control, Speed Sensor (Tach)	92.5 mm	92.5 mm	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	50000 Hrs	0.59 in H2O	147 Pa	118 CFM
Orion Fans OD9238-24MBVXC10A	cURus, TUV	11 W	0.5 A	70 °C	70 °C	-10 °C	-10 °C	55 dB	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	24 VDC	38 mm	Tubeaxial	4800 RPM	Ball	3.3 m³/min		4 Wire Leads	Auto Restart, PWM Control, Speed Sensor (Tach)	92.5 mm	92.5 mm	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	50000 Hrs	0.59 in H2O	147 Pa	118 CFM
