FFG.1B.304.CLAD52Z

Active

LEMO

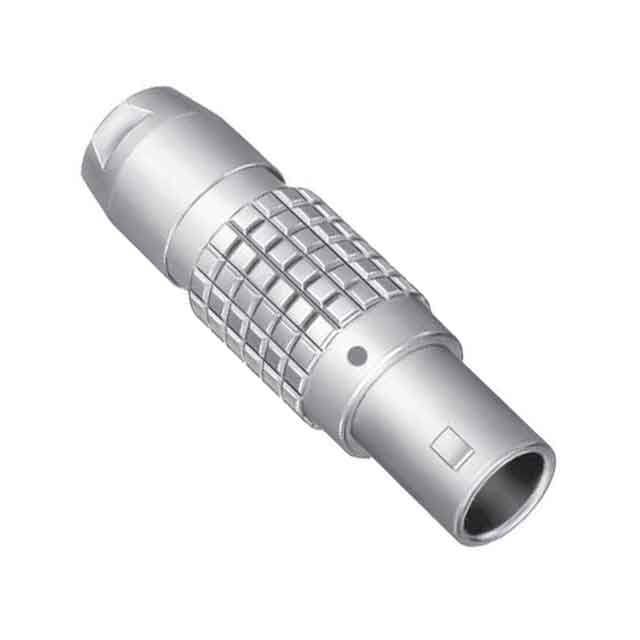

CONN PLUG MALE 4P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FFG.1B.304.CLAD52Z

Active

LEMO

CONN PLUG MALE 4P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 37.50
		10	$ 32.84
		25	$ 31.42
		50	$ 30.41
		100	$ 29.39
		250	$ 27.77

Description

General part information

FFG.1B Series

4 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FFG.1B.304.CLAD52Z	FFG.1B Series

	-	-
Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Cable Opening	-	0.122 - 0.165 in
Cable Opening	-	6.2 mm
Cable Opening	-	5.2 mm
Cable Opening	-	0.205 in
Cable Opening	-	0.244 in
Cable Opening	-	0.244 - 0.283 in
Cable Opening	-	6.2 - 7.2 mm
Cable Opening [diameter]	0.205 in, 0.165 in	0.165 - 0.205 in
Cable Opening [diameter]	4.2 mm	3.1 - 4.2 mm
Cable Opening [diameter]	5.2 mm	5.2 mm
Color	Silver	Silver
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	10 A	2 - 15 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	2 - 14
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	304	302 - 314
Shielding	Shielded	Shielded
Termination	-	Crimp

FFG.1B Series

CONN PLUG MALE 6POS GOLD CRIMP

Part	Insert Material	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Shielding	Backshell Material, Plating	Contact Material	Material Flammability Rating	Mounting Type	Number of Positions	Fastening Type	Orientation	Current Rating (Amps)	Connector Type	Color	Termination	Features	Ingress Protection	Primary Material	Shell Material	Cable Opening [diameter]	Cable Opening [diameter]	Shell Finish	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [custom]	Cable Opening [custom]
LEMO FFG.1B.306.CYCD42Z	Polyetheretherketone (PEEK)	Gold	1 µm	39.4 µin	-55 °C	250 °C	306	Shielded	Brass, Chrome	Brass	UL94 V-0	Free Hanging (In-Line)	6	Push-Pull	G	7 A	Male Pins, Plug	Silver	Crimp	Backshell	IP50	Metal	Brass	3.1 mm, 4.2 mm	0.122 in, 0.165 in	Chrome
LEMO FFG.1B.307.CYCD62Z	Polyetheretherketone (PEEK)	Gold	1 µm	39.4 µin	-55 °C	250 °C	307	Shielded	Brass, Chrome	Brass	UL94 V-0	Free Hanging (In-Line)	7	Push-Pull	G	7 A	Male Pins, Plug	Silver	Crimp	Backshell	IP50	Metal	Brass			Chrome	6.2 mm	5.2 mm	0.205 in	0.244 in
LEMO FFG.1B.306.CLAD42Z	Polyetheretherketone (PEEK)	Gold	1 µm	39.4 µin	-55 °C	250 °C	306	Shielded	Brass, Chrome	Brass	UL94 V-0	Free Hanging (In-Line)	6	Push-Pull	G	7 A	Male Pins, Plug	Silver		Backshell	IP50	Metal	Brass	3.1 mm, 4.2 mm	0.122 in, 0.165 in	Chrome
LEMO FFG.1B.306.CLAD52	Polyetheretherketone (PEEK)	Gold	1 µm	39.4 µin	-55 °C	250 °C	306	Shielded	Brass, Chrome	Brass	UL94 V-0	Free Hanging (In-Line)	6	Push-Pull	G	7 A	Male Pins, Plug	Silver		Backshell	IP50	Metal	Brass	4.2 mm		Chrome					0.165 in, 0.205 in	5.2 mm
LEMO FFG.1B.306.CLAD62Z	Polyetheretherketone (PEEK)	Gold	1 µm	39.4 µin	-55 °C	250 °C	306	Shielded	Brass, Chrome	Brass	UL94 V-0	Free Hanging (In-Line)	6	Push-Pull	G	7 A	Male Pins, Plug	Silver		Backshell	IP50	Metal	Brass			Chrome	6.2 mm	5.2 mm	0.205 in	0.244 in
LEMO FFG.1B.304.CLAD72	Polyetheretherketone (PEEK)	Gold	1 µm	39.4 µin	-55 °C	250 °C	304	Shielded	Brass, Chrome	Brass	UL94 V-0	Free Hanging (In-Line)	4	Push-Pull	G	10 A	Male Pins, Plug	Silver		Backshell	IP50	Metal	Brass			Chrome							0.244 in, 0.283 in	6.2 mm, 7.2 mm
LEMO FFG.1B.314.CLAD52Z	Polyetheretherketone (PEEK)	Gold	1 µm	39.4 µin	-55 °C	250 °C	314	Shielded	Brass, Chrome	Brass	UL94 V-0	Free Hanging (In-Line)	14	Push-Pull	G	2 A	Male Pins, Plug	Silver		Backshell	IP50	Metal	Brass	4.2 mm		Chrome					0.165 in, 0.205 in	5.2 mm
LEMO FFG.1B.308.CLAD42Z	Polyetheretherketone (PEEK)	Gold	1 µm	39.4 µin	-55 °C	250 °C	308	Shielded	Brass, Chrome	Brass	UL94 V-0	Free Hanging (In-Line)	8	Push-Pull	G	5 A	Male Pins, Plug	Silver		Backshell	IP50	Metal	Brass	3.1 mm, 4.2 mm	0.122 in, 0.165 in	Chrome
LEMO FFG.1B.307.CYCD42	Polyetheretherketone (PEEK)	Gold	1 µm	39.4 µin	-55 °C	250 °C	307	Shielded	Brass, Chrome	Brass	UL94 V-0	Free Hanging (In-Line)	7	Push-Pull	G	7 A	Male Pins, Plug	Silver	Crimp	Backshell	IP50	Metal	Brass	3.1 mm, 4.2 mm	0.122 in, 0.165 in	Chrome
LEMO FFG.1B.304.CLAD52Z	Polyetheretherketone (PEEK)	Gold	1 µm	39.4 µin	-55 °C	250 °C	304	Shielded	Brass, Chrome	Brass	UL94 V-0	Free Hanging (In-Line)	4	Push-Pull	G	10 A	Male Pins, Plug	Silver		Backshell	IP50	Metal	Brass	4.2 mm		Chrome					0.165 in, 0.205 in	5.2 mm
