General part information

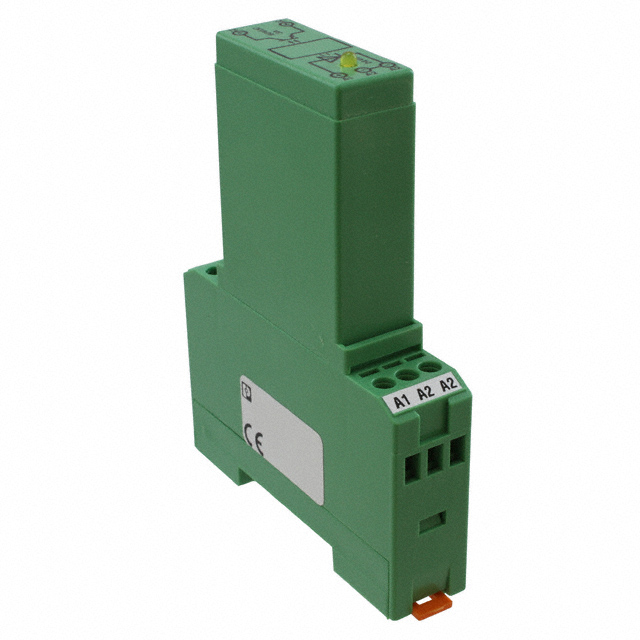

Solid State SPST-NO (1 Form A) Module
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 2954154 |
|---|---|
| Approval Agency | EAC |
| Load Current | 3 A |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Output Type | DC |
| Package / Case | Module |
| Termination Style | Screw Terminal |
| Voltage - Input | 24 V |
| Voltage - Load [Max] | 60 V |
| Voltage - Load [Min] | 12 V |
SOLID STATE RELAY, 3A, 28.8V ROHS COMPLIANT: YES
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Termination Style | Voltage - Load [Min] | Voltage - Load [Max] | Package / Case | Mounting Type | Output Type | Voltage - Input | Load Current |
|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2954154 | -20 C | 60 °C | EAC | Screw Terminal | 12 V | 60 V | Module | DIN Rail | DC | 24 V | 3 A |
