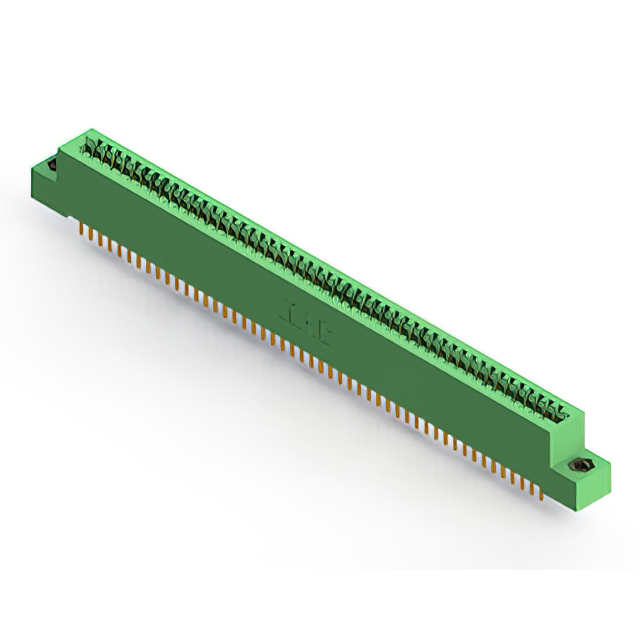

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 98 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
342-098-521-208
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 98 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-098-521-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 98 |
| Number of Positions/Bay/Row [custom] | 49 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
342-098 Series
| Part | Mounting Type | Pitch [x] | Pitch [x] | Gender | Contact Material | Contact Type | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Contact Finish | Termination Rows | Termination | Color | Read Out | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | 2.54 mm | 0.1 in | Female | Copper Alloy | Cantilever | 98 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | 2 | Solder Eyelet(s) | Green | Dual | 49 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | |
EDAC Inc. | Board Edge Straddle Mount | 2.54 mm | 0.1 in | Female | Copper Alloy | Cantilever | 98 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | 2 | Solder | Green | Dual | 49 | Card Extender | |||
EDAC Inc. | Through Hole | 2.54 mm | 0.1 in | Female | Copper Alloy | Cantilever | 98 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | 2 | Wire Wrap | Green | Dual | 49 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | |
EDAC Inc. | Through Hole | 2.54 mm | 0.1 in | Female | Copper Alloy | Cantilever | 98 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | 2 | Solder | Green | Dual | 49 | Flush Mount M3 Threaded Insert Top Opening | |||
EDAC Inc. | Through Hole | 2.54 mm | 0.1 in | Female | Copper Alloy | Cantilever | 98 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | 2 | Solder | Green | Dual | 49 | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | Board Edge Straddle Mount | 2.54 mm | 0.1 in | Female | Copper Alloy | Cantilever | 98 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | 2 | Solder | Green | Dual | 49 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Card Extender |
EDAC Inc. | Through Hole Right Angle | 2.54 mm | 0.1 in | Female | Copper Alloy | Cantilever | 98 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | 2 | Solder Wire Wrap | Green | Dual | 49 | ||||
EDAC Inc. | Board Edge Straddle Mount | 2.54 mm | 0.1 in | Female | Copper Alloy | Cantilever | 98 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | 2 | Solder Eyelet(s) | Green | Dual | 49 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Card Extender |
EDAC Inc. | Through Hole | 2.54 mm | 0.1 in | Female | Copper Alloy | Cantilever | 98 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | 2 | Solder | Green | Dual | 49 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | |
EDAC Inc. | Board Edge Straddle Mount | 2.54 mm | 0.1 in | Female | Copper Alloy | Cantilever | 98 | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | 2 | Solder | Green | Dual | 49 | 4-40 Flush Mount Threaded Insert Top Opening | Card Extender |
