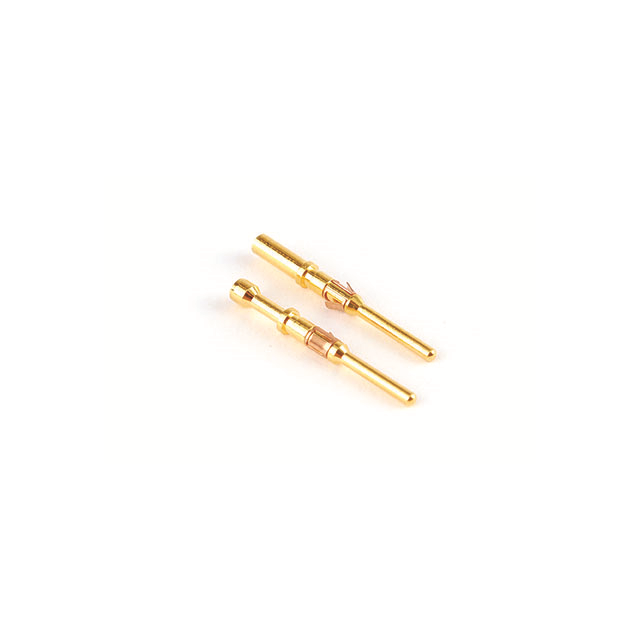

MP24M23F
ActiveAmphenol Sine Systems Corp
PIN CONTACT, MACHINED, GOLD FLAS
Deep-Dive with AI
Search across all available documentation for this part.
MP24M23F
ActiveAmphenol Sine Systems Corp
PIN CONTACT, MACHINED, GOLD FLAS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MP24M23F |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Termination | Crimp |
| Pin or Socket | Pin |
| Type | Machined |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.39 | |
| 10 | $ 1.21 | |||
| 25 | $ 1.16 | |||
| 50 | $ 1.13 | |||
| 100 | $ 1.08 | |||
| 250 | $ 0.98 | |||
| 500 | $ 0.90 | |||
| 2000 | $ 0.75 | |||
| 4000 | $ 0.72 | |||
Description
General part information
MP24M23 Series
Pin Contact Gold Crimp 24-26 AWG Machined
