Specification	2209570116

Cable Type	Round Cable
Color	Green
Connector Type	Plug to Plug
Features	Molded Plugs
Length	3.28 ft
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts	Single Pair Ethernet (SPE), 2P2C
Shielding	Shielded
Style	Industrial Environments - IP65/IP67

220957 Series

T1 Industrial Single-Pair Ethernet (SPE) PCB Jack, M12, Right-Angle, IP67

Part	Style	Connector Type	Length	Features	Mounting Type	Shielding	Cable Type	Color	Number of Positions/Contacts	Housing Material	Operating Temperature (Min)	Operating Temperature (Max)	Number of Ports	Termination	Contact Finish	Orientation Angle	Orientation Direction	LED Color	Number of Rows	Ingress Protection	Contact Material	Orientation	Ingress Protection Description	Ingress Protection IP Rating	Tab Direction
Molex 2209570104	Industrial Environments - IP20	Plug to Plug	3.28 ft	Latch Lock Molded Plugs	Free Hanging (In-Line)	Shielded	Round Cable	Green	2P2C Single Pair Ethernet (SPE)

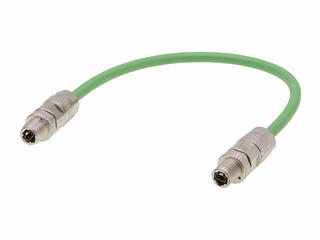

Molex 2209570115
Molex 2209570002		Jack			Panel Mount Through Hole	Unshielded			2P2C Single Pair Ethernet (SPE)	Nylon PA Polyamide	-20 °C	80 °C	1	Solder	Gold	90 °	Right	Does Not Contain LED	1	IP20	Brass
Molex 2209570102		Plug to Plug	0.98 ft		Free Hanging (In-Line)	Shielded	Round Cable	Green	2P2C Single Pair Ethernet (SPE)
Molex 2209570101	Industrial Environments - IP20	Plug to Plug	0.66 ft	Latch Lock Molded Plugs	Free Hanging (In-Line)	Shielded	Round Cable	Green	2P2C Single Pair Ethernet (SPE)
Molex 2209570111
Molex 2209570125
Molex 2209570110
Molex 2209570116	Industrial Environments - IP65/IP67	Plug to Plug	3.28 ft	Molded Plugs	Free Hanging (In-Line)	Shielded	Round Cable	Green	2P2C Single Pair Ethernet (SPE)
Molex 2209570008		Jack			Panel Mount Through Hole	Unshielded			2P2C Single Pair Ethernet (SPE)	Nylon PA Polyamide	-25 °C	80 °C	1	Solder	Gold			Does Not Contain LED	1		Brass	Straight	Dust Tight Waterproof	IP67	User Selectable
