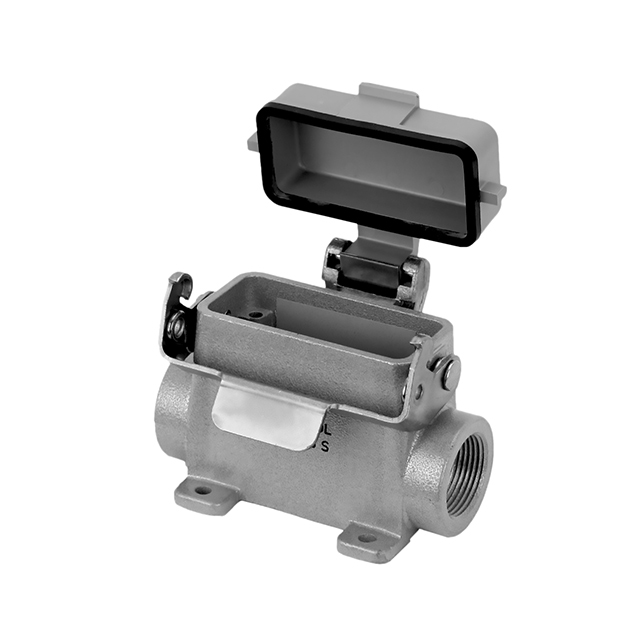

C14610F0156072

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZA10 PG16

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZA10 PG16

Technical Specifications

Parameters and characteristics for this part

Specification	C14610F0156072

Connector Type	Base - Box Mount
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	A10
Size / Dimension [x]	3.307 in
Size / Dimension [x]	84 mm
Size / Dimension [y]	1.969 in
Size / Dimension [y]	50 mm
Size / Dimension [z]	2.047 in
Size / Dimension [z]	52 mm
Style	Side Entry
Thread Size	PG16

Part	Operating Temperature [Max]	Operating Temperature [Min]	Style	Ingress Protection	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Housing Material	Lock Location	Size	Connector Type	Features	Thread Size	Size / Dimension [y]	Size / Dimension [z]
Amphenol Tuchel Industrial C14610F0150002	100 °C	-40 °C	Bottom Entry	IP65 - Dust Tight Water Resistant	3.189 in	1.161 "	29.5 mm	81 mm	1.024 in	26 mm	Aluminum Alloy Die Cast	Locking Clip (1) on Base Bottom	A10	Base - Panel Mount
Amphenol Tuchel Industrial C14610F0158062	100 °C	-40 °C	Side Entry	IP65 - Dust Tight Water Resistant	3.307 in	1.969 in		84 mm	2.047 in		Aluminum Alloy Die Cast	Locking Clip (1) on Base Bottom	A10	Base - Box Mount	Cover	PG21	50 mm	52 mm
Amphenol Tuchel Industrial C14610F0156072	100 °C	-40 °C	Side Entry	IP65 - Dust Tight Water Resistant	3.307 in	1.969 in		84 mm	2.047 in		Aluminum Alloy Die Cast	Locking Clip (1) on Base Bottom	A10	Base - Box Mount		PG16	50 mm	52 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 26.48

General part information

Base - Box Mount Connector Side Entry PG16 A10 IP65 - Dust Tight, Water Resistant
