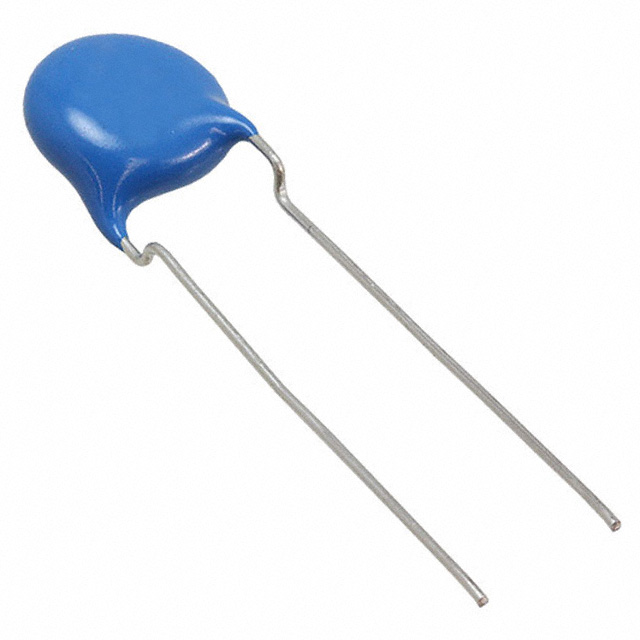

C905U200JYSDAA7317
ActiveKEMET
CERAMIC CAPACITOR, MULTILAYER, CERAMIC, 5% +TOL, 5% -TOL, SL, -1000/+350PPM/CEL TC, 0.00002UF, THROUGH HOLE MOUNT, RADIAL LEADED
Deep-Dive with AI
Search across all available documentation for this part.
C905U200JYSDAA7317
ActiveKEMET
CERAMIC CAPACITOR, MULTILAYER, CERAMIC, 5% +TOL, 5% -TOL, SL, -1000/+350PPM/CEL TC, 0.00002UF, THROUGH HOLE MOUNT, RADIAL LEADED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C905U200JYSDAA7317 |
|---|---|
| Applications | Safety |
| Capacitance | 20 pF |
| Height - Seated (Max) [Max] [z] | 0.197 in |
| Height - Seated (Max) [Max] [z] | 5 mm |
| Lead Spacing | 5 mm |
| Lead Spacing | 0.197 in |
| Lead Style | Straight |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Disc, Radial |
| Ratings [custom] | 2 |
| Ratings [custom] | 1 |
| Size / Dimension [diameter] | 7 mm |
| Size / Dimension [diameter] | 0.276 in |
| Temperature Coefficient | SL |
| Tolerance | 5 % |
| Voltage - Rated | 400 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 10000 | $ 0.09 | |
Description
General part information
C905U Series
20 pF ±5% 400VAC Ceramic Capacitor SL Radial, Disc
