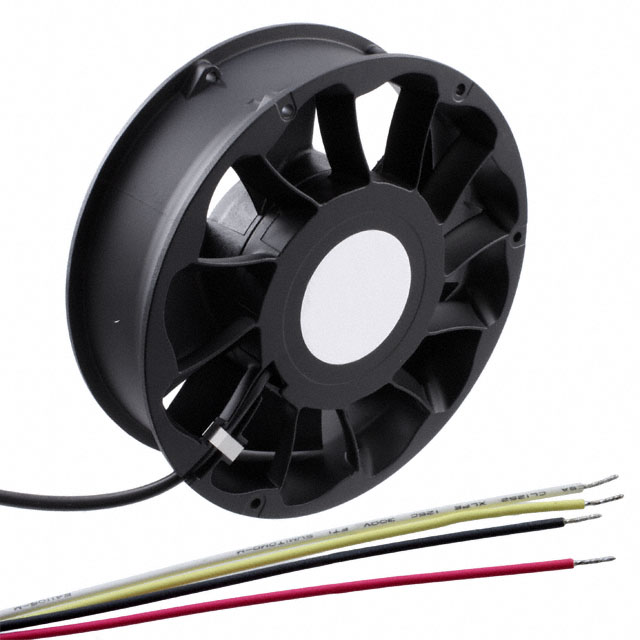

R172A0-051-D0790

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 48 V, CIRCULAR, 172 MM, 51 MM, BALL BEARING, 585 CFM

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 48 V, CIRCULAR, 172 MM, 51 MM, BALL BEARING, 585 CFM

Technical Specifications

Parameters and characteristics for this part

Specification	R172A0-051-D0790

Air Flow	16.91 mł/min
Air Flow	604 CFM
Bearing Type	Ball
Current Rating (Amps)	4.4 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise	82 dB(A)
Operating Temperature [Max] [custom]	70 °C
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-30 °C
Operating Temperature [Min] [custom]	-22 °F
Power (Watts)	211.2 W
RPM	9300 RPM
Size / Dimension	Round
Size / Dimension [diameter]	172.7 mm
Static Pressure	6.05 in H2O
Static Pressure	1507.1 Pa
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	72 VDC
Voltage Range [Min]	30 VDC
Weight	2.4 lbs
Weight	1.1 kg
Width [y]	2 "

DC Fans DC Axial Fan, High Power, 172x51mm Round, 48VDC, 604CFM

Part	Fan Type	Voltage Range [Min]	Voltage Range [Max]	Air Flow	Air Flow	Static Pressure	Static Pressure	Operating Temperature [Min] [custom]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Operating Temperature [Max] [custom]	Features	Current Rating (Amps)	Size / Dimension [diameter]	Size / Dimension	RPM	Width [y]	Voltage - Rated [custom]	Weight	Weight	Lifetime @ Temp.	Bearing Type	Termination	Noise	Material - Frame	Material - Blade	Power (Watts)
NMB TECHNOLOGIES R172A0-051-D0790	Tubeaxial	30 VDC	72 VDC	16.91 mł/min	604 CFM	6.05 in H2O	1507.1 Pa	-30 °C	-22 °F	70 °C	158 °F	PWM Control, Speed Sensor (Tach)	4.4 A	172.7 mm	Round	9300 RPM	2 "	48 VDC	2.4 lbs	1.1 kg	70000 Hrs	Ball	4 Wire Leads	82 dB(A)	Aluminum	Plastic	211.2 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 175.44
Newark	Each	1	$ 218.94

General part information

DC Fans DC Axial Fan, High Power, 172x51mm Round, 48VDC, 604CFM
