1792384
ActivePhoenix Contact

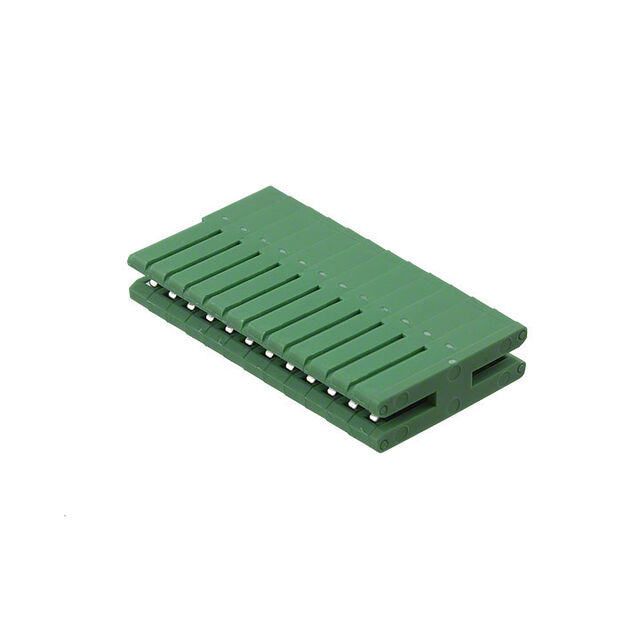

TERM BLOCK PLUG 12POS 3.5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1792384
ActivePhoenix Contact
TERM BLOCK PLUG 12POS 3.5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1792384 | ZEC 1,0 Series |
|---|---|---|
| Convert From (Adapter End) | 12 pos | 3 - 12 pos |
| Convert From (Adapter End) | Card Edge Connector | Card Edge Connector, Card Edge Connector, 7 pos, Card Edge Connector, 4 pos, Card Edge Connector, 9 pos |
| Convert To (Adapter End) | 12 Pos | 2 - 12 Pos |
| Convert To (Adapter End) | Card Edge Connector | Card Edge Connector, Card Edge Connector, 8 Pos, Card Edge Connector, 3 Pos |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
ZEC 1,0 Series
TERM BLOCK PLUG 12POS 3.5MM
| Part | Mounting Type | Convert To (Adapter End) | Convert To (Adapter End) | Convert From (Adapter End) | Convert From (Adapter End) |
|---|---|---|---|---|---|
Phoenix Contact 1792384 | Free Hanging (In-Line) | 12 Pos | Card Edge Connector | 12 pos | Card Edge Connector |
Phoenix Contact 1915709 | Free Hanging (In-Line) | 7 Pos | Card Edge Connector | Card Edge Connector, 7 pos | |
Phoenix Contact 1915657 | Free Hanging (In-Line) | 2 Rows | Card Edge Connector | ||
Phoenix Contact 1751697 | Free Hanging (In-Line) | 4 Pos | Card Edge Connector | Card Edge Connector, 4 pos | |
Phoenix Contact 1751707 | Free Hanging (In-Line) | 10 Pos | Card Edge Connector | ||
Phoenix Contact 1915725 | Free Hanging (In-Line) | 9 | Card Edge Connector | Card Edge Connector, 9 pos | |
Phoenix Contact 1915712 | Free Hanging (In-Line) | Card Edge Connector, 8 Pos | 8 Pos | Card Edge Connector | |
Phoenix Contact 1915660 | Free Hanging (In-Line) | Card Edge Connector, 3 Pos | 3 pos | Card Edge Connector | |
Phoenix Contact 1915754 | Free Hanging (In-Line) | 12 Pos | Card Edge Connector | 12 pos | Card Edge Connector |
Phoenix Contact 1915738 | Free Hanging (In-Line) | 10 Pos | Card Edge Connector |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 22.69 | |
Description
General part information
ZEC 1,0 Series
Adapter Card Edge Connector, 12 pos To Card Edge Connector, 12 Pos
Documents
Technical documentation and resources
