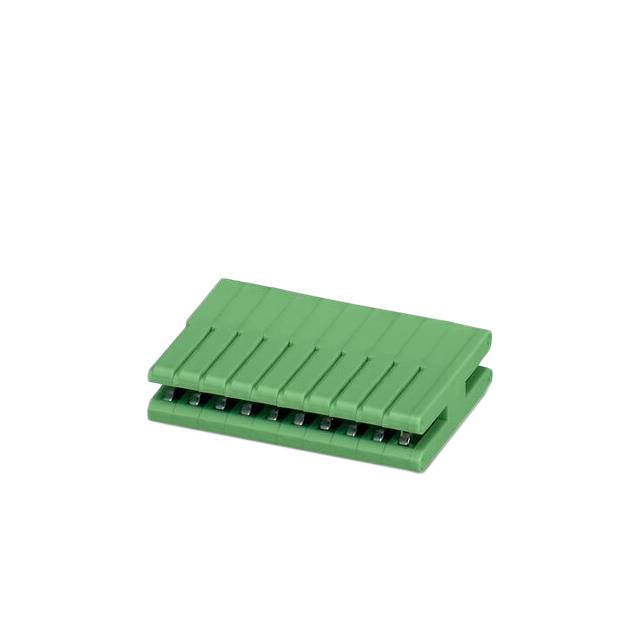

1915725

Active

Phoenix Contact

TERM BLOCK PCB

Search across all available documentation for this part.

Active

Phoenix Contact

TERM BLOCK PCB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1915725	ZEC 1,0 Series

Convert From (Adapter End)	Card Edge Connector, 9 pos	Card Edge Connector, Card Edge Connector, 7 pos, Card Edge Connector, 4 pos, Card Edge Connector, 9 pos
Convert From (Adapter End)	-	3 - 12 pos
Convert To (Adapter End)	Card Edge Connector	Card Edge Connector, Card Edge Connector, 8 Pos, Card Edge Connector, 3 Pos
Convert To (Adapter End)	9	2 - 12 Pos
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)

TERM BLOCK PLUG 12POS 3.5MM

Part	Mounting Type	Convert To (Adapter End)	Convert To (Adapter End)	Convert From (Adapter End)	Convert From (Adapter End)
Phoenix Contact 1792384	Free Hanging (In-Line)	12 Pos	Card Edge Connector	12 pos	Card Edge Connector
Phoenix Contact 1915709	Free Hanging (In-Line)	7 Pos	Card Edge Connector		Card Edge Connector, 7 pos
Phoenix Contact 1915657	Free Hanging (In-Line)	2 Rows	Card Edge Connector
Phoenix Contact 1751697	Free Hanging (In-Line)	4 Pos	Card Edge Connector		Card Edge Connector, 4 pos
Phoenix Contact 1751707	Free Hanging (In-Line)			10 Pos	Card Edge Connector
Phoenix Contact 1915725	Free Hanging (In-Line)	9	Card Edge Connector		Card Edge Connector, 9 pos
Phoenix Contact 1915712	Free Hanging (In-Line)		Card Edge Connector, 8 Pos	8 Pos	Card Edge Connector
Phoenix Contact 1915660	Free Hanging (In-Line)		Card Edge Connector, 3 Pos	3 pos	Card Edge Connector
Phoenix Contact 1915754	Free Hanging (In-Line)	12 Pos	Card Edge Connector	12 pos	Card Edge Connector
Phoenix Contact 1915738	Free Hanging (In-Line)			10 Pos	Card Edge Connector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 16.65

General part information

Adapter Card Edge Connector, 9 pos To Card Edge Connector, 9 Pos
