19K202-270L5-NM

Active

Rosenberger

SMP NON MAGNETIC RIGHT ANGLE JAC

Search across all available documentation for this part.

Active

Rosenberger

SMP NON MAGNETIC RIGHT ANGLE JAC

Technical Specifications

Parameters and characteristics for this part

Specification	19K202-270L5-NM

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	UT-47
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	26.5 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Contact Termination	Connector Type	Body Finish	Voltage Rating	Fastening Type	Body Material	Dielectric Material	Frequency - Max [Max]	Impedance	Center Contact Plating	Includes	Shield Termination	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Number of Ports	Housing Color	Mounting Type	Cable Group	Mating Cycles
Rosenberger 19K202-270L5	Solder	Female Socket Jack	Gold	335 V	Snap-On	Beryllium Copper	Polytetrafluoroethylene (PTFE)	26.5 GHz	50 Ohms	Gold	1 Connector 1 End Cap 1 Insulator	Solder	155 °C	-65 ░C	Beryllium Copper	1	Gold	Free Hanging (In-Line) Right Angle	UT-47
Rosenberger 19K202-270L5-NM	Solder	Female Socket Jack	Gold	335 V	Snap-On	Beryllium Copper	Polytetrafluoroethylene (PTFE)	26.5 GHz	50 Ohms	Gold		Solder	155 °C	-65 ░C	Beryllium Copper	1	Gold	Free Hanging (In-Line)	UT-47	1000
Rosenberger 19K202-301L5	Solder	Female Socket Jack	Gold	335 V	Snap-On	Brass	Polytetrafluoroethylene (PTFE)	26.5 GHz	50 Ohms	Gold	1 Connector 1 End Cap	Crimp	155 °C	-65 ░C	Beryllium Copper	1	Gold	Free Hanging (In-Line) Right Angle	196A RG-178B
Rosenberger 19K202-301L5-NM	Solder	Female Socket Jack	Gold	335 V	Snap-On	Bronze	Polytetrafluoroethylene (PTFE)	26.5 GHz	50 Ohms	Gold		Crimp	155 °C	-65 ░C	Beryllium Copper	1	Gold	Free Hanging (In-Line) Right Angle	196A RG-178B	1000

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

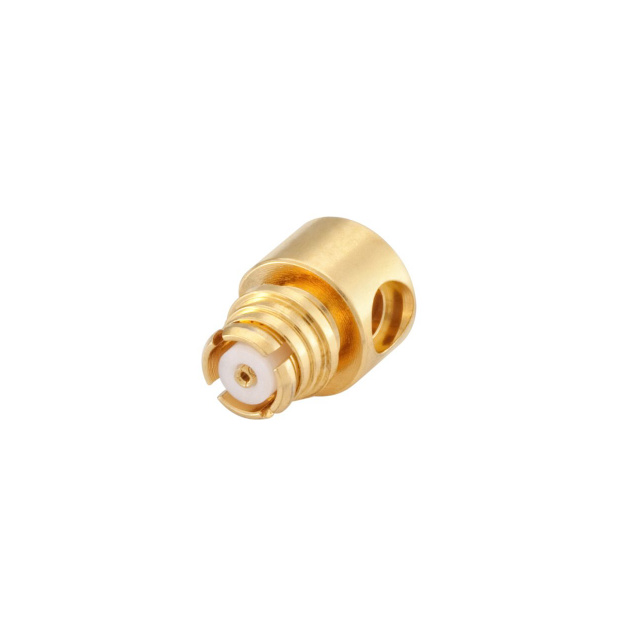

SMP Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
