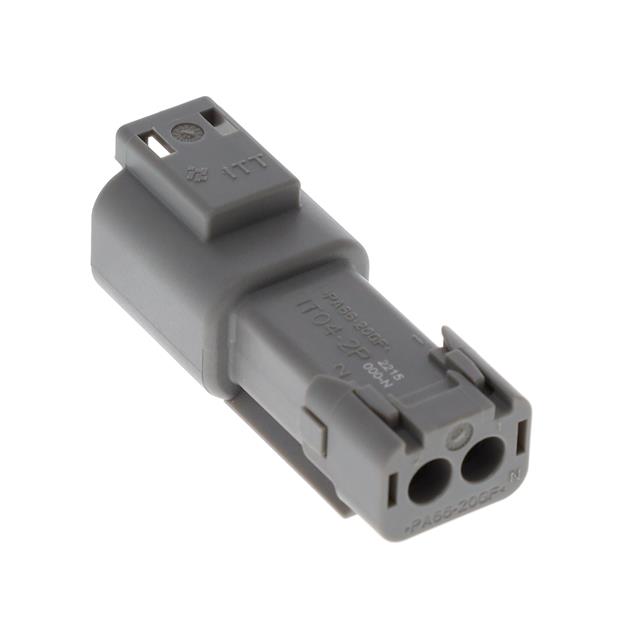

IT04-2P-000-N

Active

ITT Cannon, LLC

AUTOMOTIVE CONNECTOR SOCKET

Search across all available documentation for this part.

Active

ITT Cannon, LLC

AUTOMOTIVE CONNECTOR SOCKET

Technical Specifications

Parameters and characteristics for this part

Specification	IT04-2P-000-N

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	IP69K, IP67, Cap (Cover), Sealed, IP68
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

Part	Fastening Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Type	Insulation Material	Connector Type	Contact Termination	Color	Number of Rows	Features
ITT Cannon, LLC IT04-2P-002-N	Latch Holder	2	-55 °C	125 °C	Free Hanging (In-Line)	Male Pin	Glass Filled Nylon Polyamide (PA)	Receptacle	Crimp	Gray	1
ITT Cannon, LLC IT04-2P-000-N	Latch Holder	2	-55 °C	125 °C	Free Hanging (In-Line)	Male Pin	Glass Filled Nylon Polyamide (PA)	Receptacle	Crimp	Gray	1	Cap (Cover) IP67 IP68 IP69K Sealed
ITT Cannon, LLC IT04-2P-004	Latch Holder	2	-55 °C	125 °C	Free Hanging (In-Line)	Male Pin	Glass Filled Nylon Polyamide (PA)	Receptacle	Crimp	Black	1	Cap (Cover) IP67 IP68 IP69K Sealed
ITT Cannon, LLC IT04-2P-004-N	Latch Holder	2	-55 °C	125 °C	Free Hanging (In-Line)	Male Pin	Glass Filled Nylon Polyamide (PA)	Receptacle	Crimp	Black	1	Cap (Cover) IP67 IP68 IP69K Sealed
ITT Cannon, LLC IT04-2P-006-N	Latch Holder	2	-55 °C	125 °C	Free Hanging (In-Line)	Male Pin	Glass Filled Nylon Polyamide (PA)	Receptacle	Crimp	Black	1
ITT Cannon, LLC IT04-2P-006	Latch Holder	2	-55 °C	125 °C	Free Hanging (In-Line)	Male Pin	Glass Filled Nylon Polyamide (PA)	Receptacle	Crimp	Black	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Receptacle Gray
