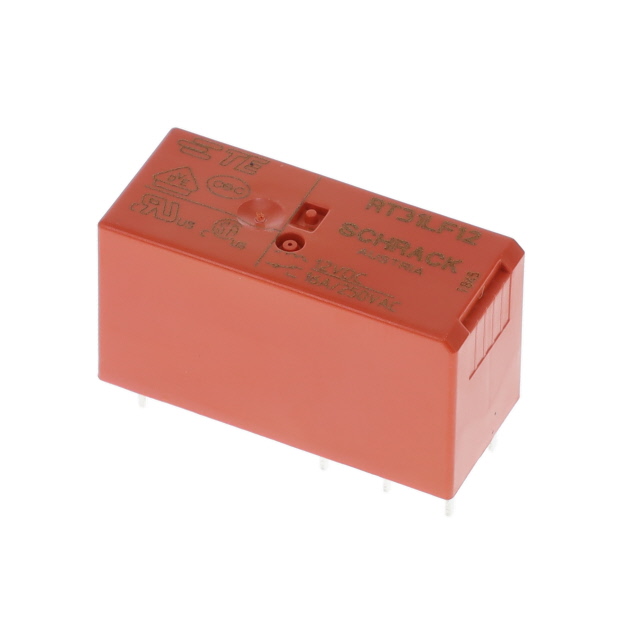

3-1415402-1
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 16A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-1415402-1
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 16A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-1415402-1 |
|---|---|
| Approval Agency | cURus, CQC, VDE, CSA |
| Coil Current | 50 mA |
| Coil Insulation | Class F |
| Coil Resistance | 240 Ohms |
| Coil Type | Latching, Dual Coil |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 16 A |
| Load - Max Switching | 6400 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 6.6 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Seal Rating | Sealed - Flux Protection |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.39 | |
| 20 | $ 5.36 | |||
| 40 | $ 5.14 | |||
| 60 | $ 5.02 | |||
| 100 | $ 4.87 | |||
| 260 | $ 4.61 | |||
| 500 | $ 4.43 | |||
| 1000 | $ 4.26 | |||
Description
General part information
RT31LF Series
General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
