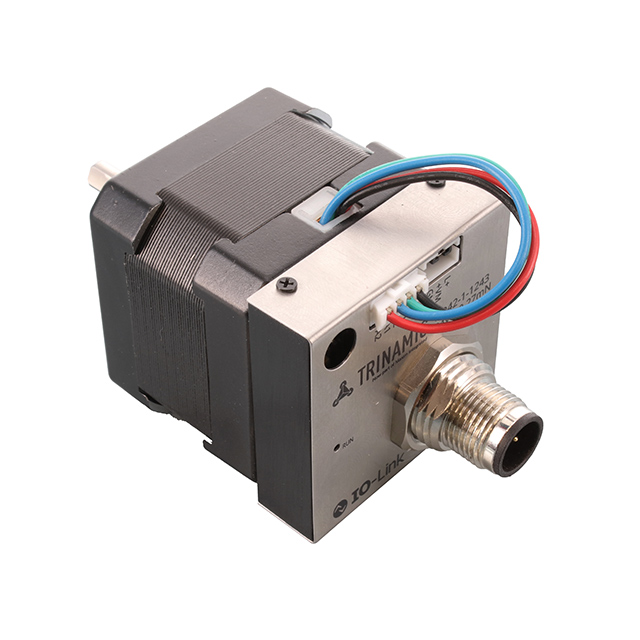

PD42-1-1243-IOLINK
ActiveAnalog Devices Inc./Maxim Integrated
PANDRIVE NEMA17, 28V, 0.27NM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PD42-1-1243-IOLINK
ActiveAnalog Devices Inc./Maxim Integrated
PANDRIVE NEMA17, 28V, 0.27NM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PD42-1-1243-IOLINK | PD42 Series |
|---|---|---|
| Coil Resistance | 4.5 Ohms | 1 - 4.5 Ohms |
| Coil Type | - | Bipolar |
| Current Rating (Amps) | 1 A | 1 A |
| Diameter - Shaft [diameter] | 0.197 in | 0.197 in |
| Diameter - Shaft [diameter] | 5 mm | 5 mm |
| Features | - | Integrated Controller, Round Shaft |
| Length - Shaft and Bearing [x] | 24 mm | 24 mm |
| Length - Shaft and Bearing [x] | 0.945 in | 0.945 in |
| Mounting Hole Spacing | 1.22 in | 1.22 in |
| Mounting Hole Spacing | 31 mm | 31 mm |
| NEMA Frame Size | 17 | 17 |
| Operating Temperature | - | 50 °C |
| Operating Temperature | - | -20 C |
| Rotor Inertia | 54 gcm² | 35 - 68 gcm² |
| Size / Dimension [x] | 42 mm | 42 mm |
| Size / Dimension [x] | 1.654 in | 1.654 in |
| Size / Dimension [y] | 1.654 " | 1.654 " |
| Size / Dimension [y] | 42 mm | 42 mm |
| Step Angle | 1.8 ° | 1.8 ° |
| Steps per Revolution | - | 200 |
| Termination Style | Connector | Connector |
| Torque - Holding (oz-in / mNm) | 49.56 oz-in | 31.2 - 62.3 oz-in |
| Torque - Holding (oz-in / mNm) | 350 mNm | 220 - 440 mNm |
| Type | Hybrid | Hybrid |
| Voltage - Rated | 24 VDC | 24 VDC |
| Weight | - | 219.99 - 350.17 g |
| Weight | - | 0.485 - 0.772 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 220.64 | |
PD42 Series
PANDRIVE NEMA17, 24V, 38 OZ IN/
| Part | Weight | Weight | Termination Style | Features | Current Rating (Amps) | Rotor Inertia | Step Angle | Mounting Hole Spacing | Mounting Hole Spacing | Coil Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Type | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Steps per Revolution | NEMA Frame Size | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Rated | Coil Resistance | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated PD42-1-1270-CANOPEN | 219.99 g | 0.485 lb | Connector | Integrated Controller, Round Shaft | 1 A | 35 gcm² | 1.8 ° | 1.22 in | 31 mm | Bipolar | 42 mm | 1.654 " | 1.654 in | 42 mm | Hybrid | 31.2 oz-in | 220 mNm | 200 | 17 | 50 °C | -20 C | 24 VDC | 1 Ohms | ||||
Analog Devices Inc./Maxim Integrated PD42-2-1270-TMCL | 239.95 g | 0.529 lb | Connector | Integrated Controller, Round Shaft | 1 A | 57 gcm² | 1.8 ° | 1.22 in | 31 mm | Bipolar | 42 mm | 1.654 " | 1.654 in | 42 mm | Hybrid | 51 oz-in | 360 mNm | 200 | 17 | 50 °C | -20 C | 24 VDC | 1.2 Ohms | ||||
Analog Devices Inc./Maxim Integrated PD42-3-1270-CANOPEN | 350.17 g | 0.772 lb | Connector | Integrated Controller, Round Shaft | 1 A | 68 gcm² | 1.8 ° | 1.22 in | 31 mm | Bipolar | 42 mm | 1.654 " | 1.654 in | 42 mm | Hybrid | 62.3 oz-in | 440 mNm | 200 | 17 | 50 °C | -20 C | 24 VDC | 1.4 Ohms | ||||
Analog Devices Inc./Maxim Integrated PD42-1-1270-TMCL | 219.99 g | 0.485 lb | Connector | Integrated Controller, Round Shaft | 1 A | 35 gcm² | 1.8 ° | 1.22 in | 31 mm | Bipolar | 42 mm | 1.654 " | 1.654 in | 42 mm | Hybrid | 31.2 oz-in | 220 mNm | 200 | 17 | 50 °C | -20 C | 24 VDC | 1 Ohms | ||||
Analog Devices Inc./Maxim Integrated PD42-1-1243-IOLINK | Connector | 1 A | 54 gcm² | 1.8 ° | 1.22 in | 31 mm | 42 mm | 1.654 " | 1.654 in | 42 mm | Hybrid | 49.56 oz-in | 350 mNm | 17 | 24 VDC | 4.5 Ohms | 0.197 in | 5 mm | 24 mm | 0.945 in | |||||||
Analog Devices Inc./Maxim Integrated PD42-3-1270-TMCL | 350.17 g | 0.772 lb | Connector | Integrated Controller, Round Shaft | 1 A | 1.8 ° | 1.22 in | 31 mm | Bipolar | 42 mm | 1.654 " | 1.654 in | 42 mm | Hybrid | 62.3 oz-in | 440 mNm | 200 | 17 | 50 °C | -20 C | 24 VDC | 1.4 Ohms | |||||
Analog Devices Inc./Maxim Integrated PD42-2-1270-CANOPEN | 239.95 g | 0.529 lb | Connector | Integrated Controller, Round Shaft | 1 A | 57 gcm² | 1.8 ° | 1.22 in | 31 mm | Bipolar | 42 mm | 1.654 " | 1.654 in | 42 mm | Hybrid | 51 oz-in | 360 mNm | 200 | 17 | 50 °C | -20 C | 24 VDC | 1.2 Ohms |
Description
General part information
PD42 Series
Stepper Motor Hybrid Frame Size 17 Step 1 A 24VDC
