ATESR-15-RY-Z

Active

Menics

COMPLETE UNIT RED/YL FLSH 2STACK

Search across all available documentation for this part.

Active

Menics

COMPLETE UNIT RED/YL FLSH 2STACK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 253.00

General part information

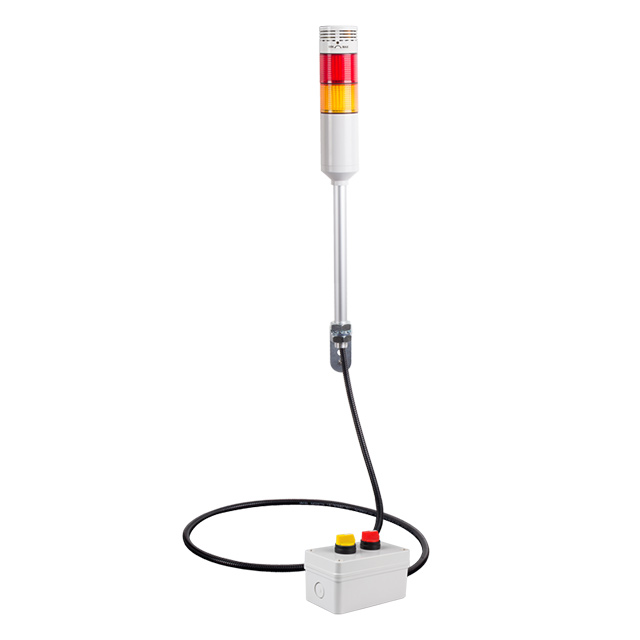

Stack Light Complete Unit Red, Yellow LED Adjustable Volume, Selector Control Cable with Connector

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ATESR-15-RY-Z	ATESR-15 Series

Features	Selector Control, Adjustable Volume	Selector Control, Adjustable Volume
Function - Audible	Continuous	Continuous
Function - Lighting	Steady, Flashing	Steady, Flashing
Light Color	Red, Yellow	Red, Green, Yellow, Blue, Clear
Number of Stacks	2	1 - 5
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-15 °C	-15 °C
Termination Style	Cable with Connector	Cable with Connector
Type	Complete Unit	Complete Unit
Voltage - Supply	110 VAC/DC	110 VAC/DC

COMPLETE UNIT GR/R FLASH 2STACK

Part	Voltage - Supply	Type	Termination Style	Function - Lighting	Number of Stacks	Features	Operating Temperature [Min]	Operating Temperature [Max]	Light Color	Function - Audible
Menics ATESR-15-RG-Z	110 VAC/DC	Complete Unit	Cable with Connector	Flashing, Steady	2	Adjustable Volume, Selector Control	-15 °C	40 °C	Green, Red	Continuous
Menics ATESR-15-RYG-Z	110 VAC/DC	Complete Unit	Cable with Connector	Flashing, Steady	3	Adjustable Volume, Selector Control	-15 °C	40 °C	Green, Red, Yellow	Continuous
Menics ATESR-15-RG-B	110 VAC/DC	Complete Unit	Cable with Connector	Flashing, Steady	2	Selector Control	-15 °C	40 °C	Green, Red	Continuous
Menics ATESR-15-G	110 VAC/DC	Complete Unit	Cable with Connector	Steady	1	Selector Control	-15 °C	40 °C	Green
Menics ATESR-15-R	110 VAC/DC	Complete Unit	Cable with Connector	Flashing	1	Selector Control	-15 °C	40 °C	Red
Menics ATESR-15-RY-Z	110 VAC/DC	Complete Unit	Cable with Connector	Flashing, Steady	2	Adjustable Volume, Selector Control	-15 °C	40 °C	Red, Yellow	Continuous
Menics ATESR-15-RYGB	110 VAC/DC	Complete Unit	Cable with Connector	Flashing, Steady	4	Selector Control	-15 °C	40 °C	Blue, Green, Red, Yellow
Menics ATESR-15-RYGB-B	110 VAC/DC	Complete Unit	Cable with Connector	Flashing, Steady	4	Selector Control	-15 °C	40 °C	Blue, Green, Red, Yellow	Continuous
Menics ATESR-15-RYG	110 VAC/DC	Complete Unit	Cable with Connector	Flashing, Steady	3	Selector Control	-15 °C	40 °C	Green, Red, Yellow
Menics ATESR-15-Y	110 VAC/DC	Complete Unit	Cable with Connector	Steady	1	Selector Control	-15 °C	40 °C	Yellow
