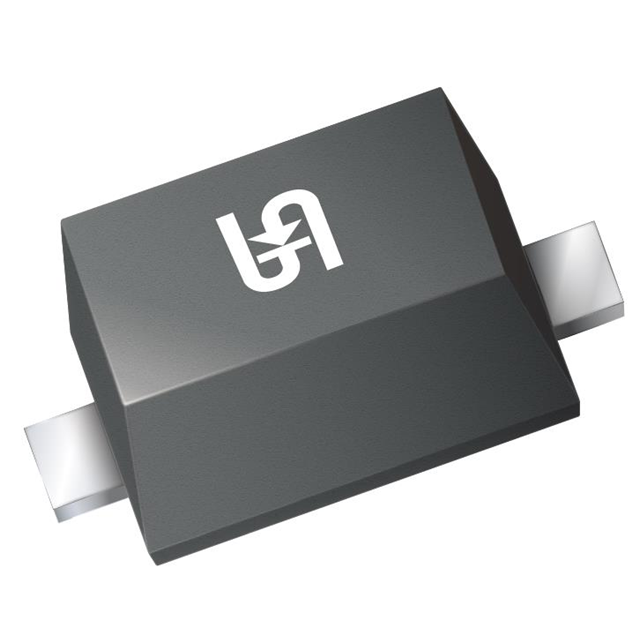

UDZS5V6B
ActiveTaiwan Semiconductor Corporation
SOD-323F, 200MW, 2%, SMALL SIGNA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UDZS5V6B
ActiveTaiwan Semiconductor Corporation
SOD-323F, 200MW, 2%, SMALL SIGNA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UDZS5V6B |
|---|---|
| Current - Reverse Leakage @ Vr | 900 nA |
| Impedance (Max) (Zzt) [Max] | 40 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SOD-323F, SC-90 |
| Power - Max [Max] | 200 mW |
| Supplier Device Package | SOD-323F |
| Tolerance | 2 % |
| Voltage - Zener (Nom) (Vz) | 5.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 10000 | $ 0.03 | |
| 30000 | $ 0.03 | |||
| 50000 | $ 0.03 | |||
| 100000 | $ 0.03 | |||
| 250000 | $ 0.03 | |||
Description
General part information
UDZS5V6 Series
Zener Diode 5.6 V 200 mW ±2% Surface Mount SOD-323F
