ANR58-UL-25A

Active

OptiFuse

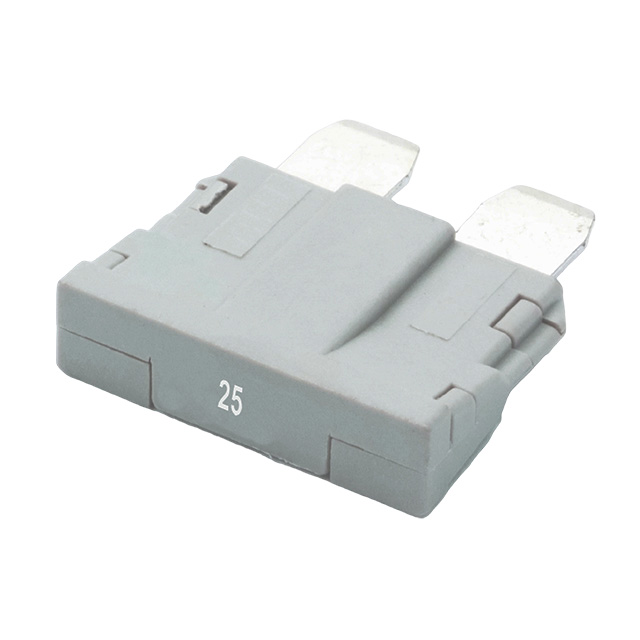

FUSE AUTO 25A 250VAC 58VDC BLADE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ANR58-UL-25A

Active

OptiFuse

FUSE AUTO 25A 250VAC 58VDC BLADE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.52
		10	$ 2.46
		25	$ 2.38
		50	$ 2.01
		100	$ 1.65
		250	$ 1.49
		500	$ 1.25
		1000	$ 1.09

Description

General part information

ANR58 Series

25 A AC 58 V DC Fuse Automotive Requires Holder Blade, ATO/ATC

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ANR58-UL-25A	ANR58 Series

Approval Agency	cURus, UL 248	cURus, UL 248
Breaking Capacity @ Rated Voltage	1 kA	1 kA
Color	Clear	Light Pink, Dark Blue, Clear, Tan, Blue, Yellow, Violet, Gray, Pink, Black, Light Green
Current Rating (Amps)	25 A	0.5 - 40 A
DC Cold Resistance	1.9 Ohms	0.004 - 16 Ohms
Fuse Type	Automotive	Automotive
Melting I˛t	-	9.6 - 3200
Melting I²t	813	0.3 - 813
Mounting Type	Requires Holder	Requires Holder
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	ATO, Blade, ATC	ATO, Blade, ATC
Response Time	Fast Blow	Fast Blow
Size / Dimension [x]	0.748 in	0.748 in
Size / Dimension [x]	19 mm	19 mm
Size / Dimension [y]	0.197 "	0.197 "
Size / Dimension [y]	5 mm	5 mm
Size / Dimension [z]	0.531 in	0.531 in
Size / Dimension [z]	13.5 mm	13.5 mm
Voltage Rating - DC	58 VDC	58 VDC

ANR58 Series

FUSE AUTO 12A 250VAC 58VDC BLADE

Part	Package / Case	Response Time	Color	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Approval Agency	Mounting Type	Fuse Type	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Breaking Capacity @ Rated Voltage	Current Rating (Amps)	Melting I²t	DC Cold Resistance	Melting I˛t
OptiFuse ANR58-UL-12A	ATC, ATO, Blade	Fast Blow	Light Pink	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	cURus, UL 248	Requires Holder	Automotive	58 VDC	125 °C	-40 °C	1 kA	12 A
OptiFuse ANR58-UL-500MA	ATC, ATO, Blade	Fast Blow	Dark Blue	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	cURus, UL 248	Requires Holder	Automotive	58 VDC	125 °C	-40 °C	1 kA	0.5 A	0.3	0.29 Ohms
OptiFuse ANR58-UL-25A	ATC, ATO, Blade	Fast Blow	Clear	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	cURus, UL 248	Requires Holder	Automotive	58 VDC	125 °C	-40 °C	1 kA	25 A	813	1.9 Ohms
OptiFuse ANR58-UL-5A	ATC, ATO, Blade	Fast Blow	Tan	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	cURus, UL 248	Requires Holder	Automotive	58 VDC	125 °C	-40 °C	1 kA	5 A	62.5	16 mOhms
OptiFuse ANR58-UL-15A	ATC, ATO, Blade	Fast Blow	Blue	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	cURus, UL 248	Requires Holder	Automotive	58 VDC	125 °C	-40 °C	1 kA	15 A	270	0.004 Ohms
OptiFuse ANR58-UL-20A	ATC, ATO, Blade	Fast Blow	Yellow	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	cURus, UL 248	Requires Holder	Automotive	58 VDC	125 °C	-40 °C	1 kA	20 A	360	3 mOhms
OptiFuse ANR58-UL-40A	ATC, ATO, Blade	Fast Blow		0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	cURus, UL 248	Requires Holder	Automotive	58 VDC	125 °C	-40 °C	1 kA	40 A		1.25 Ohms	3200
OptiFuse ANR58-UL-3A	ATC, ATO, Blade	Fast Blow	Violet	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	cURus, UL 248	Requires Holder	Automotive	58 VDC	125 °C	-40 °C	1 kA	3 A		0.03 Ohms
OptiFuse ANR58-UL-2A	ATC, ATO, Blade	Fast Blow	Gray	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	cURus, UL 248	Requires Holder	Automotive	58 VDC	125 °C	-40 °C	1 kA	2 A	9.6	0.043 Ohms
OptiFuse ANR58-UL-4A	ATC, ATO, Blade	Fast Blow	Pink	0.531 in	0.748 in	19 mm	0.197 "	13.5 mm	5 mm	cURus, UL 248	Requires Holder	Automotive	58 VDC	125 °C	-40 °C	1 kA	4 A	36.8	0.022 Ohms
