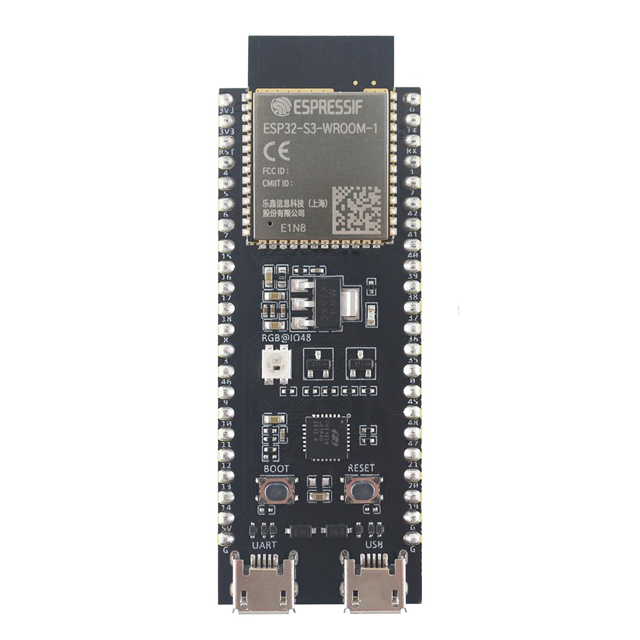

ESP32-S3-DEVKITC-1-N8

Active

Espressif Systems

ESP32-S3-WROOM-1-N8 DEV BRD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsESP32-S3 Download Functions Security Advisory

ESP32-S3-DEVKITC-1-N8

Active

Espressif Systems

ESP32-S3-WROOM-1-N8 DEV BRD

Deep-Dive with AI

DocumentsESP32-S3 Download Functions Security Advisory

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.00

Description

General part information

ESP32-S3 Series

ESP32-S ESP32-S3-WROOM-1-N8 Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® 5.x (BLE) 2.4GHz Evaluation Board

Documents

Technical documentation and resources

ESP32-S3 Download Functions Security Advisory

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ESP32-S3-DEVKITC-1-N8	ESP32-S3 Series

Antenna Type	-	Antenna Not Included, U.FL, PCB Trace, Antenna Not Included
Contents	-	Accessories, Board(s)
Current - Receiving	-	91 - 100 mA
Current - Receiving	-	88 - 97 mA
Current - Transmitting	-	330 - 355 mA
Current - Transmitting	-	273 - 285 mA
Data Rate	-	150 Mbps
Data Rate (Max)	-	150 Mbps
Embedded	-	False, True
For Use With/Related Products	ESP32-S3-WROOM-1-N8	ESP32-S3-WROOM-1-N8, ESP32-S3-WROOM-2-N32R8V, ESP32-S3, ESP32-S3-WROOM-1-N8R2, ESP32-S3-WROOM-1U-N8R8, ESP32-S3-WROOM-1U-N8R2, ESP32-S3-WROOM-1U-N8
Frequency	2.4 GHz	2.4 GHz
Frequency	-	2.484 GHz
Frequency	-	2.412 GHz
Function	-	LCD Touch Screen, Voice Recognition
GPIO	-	30
Memory Size	-	2 - 512 MB
Memory Size	-	8 MB
Memory Size	-	8 MB
Memory Size	-	384 kB
Mounting Type	-	Surface Mount
Operating Temperature	-	65 - 105 °C
Operating Temperature	-	-40 °C
Package / Case	-	41-SMD Module, 56-VFQFN Exposed Pad
Power - Output	-	20.5 - 21 dBm
Primary Attributes	-	3.95 in
Primary Attributes	-	480x480
Protocol	-	Bluetooth v5.0, 802.11b/g/n, 802.11a/b/g/n
RF Family/Standard	-	WiFi, Bluetooth
Secondary Attributes	-	Capacitive Touch Screen
Sensitivity	-	-104.5 - -98.4 dBm
Serial Interfaces	-	SPI, GPIO, PWM, UART, I2C, USB, I2S, ADC, PCM, SDIO, JTAG, IrDA
Supplied Contents	Board(s)	Board(s), Accessories, Cable(s)
Supplier Device Package	-	7
Supplier Device Package	-	56-QFN
Supplier Device Package	-	7
Type	802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® 5.x (BLE), Transceiver	802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® 5.x (BLE), Transceiver, Display, Audio, 802.11 a/b/g/n (Wi-Fi, WiFi, WLAN), TxRx + MCU, Bluetooth® 5.x
Utilized IC / Part	-	ESP32-S3, GC9503CV, FT5x06, ESP32-S3-WROOM-1, ESP32-S3R2, ESP32-S3-MINI-1, ESP32-S3R8V
Voltage - Supply	-	3.6 V
Voltage - Supply	-	1.8 - 3 V
Voltage - Supply	-	3.3 V

ESP32-S3 Series

ESP32-S3-WROOM-1-N8 DEV BRD

Part	For Use With/Related Products	Supplied Contents	Type	Frequency	Memory Size	Antenna Type	RF Family/Standard	Current - Receiving [Max]	Current - Receiving [Min]	Data Rate	Package / Case	Mounting Type	Power - Output	Protocol	Serial Interfaces	Sensitivity	Current - Transmitting [Max]	Current - Transmitting [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Utilized IC / Part	Contents	Secondary Attributes	Primary Attributes	Primary Attributes	Function
Espressif Systems ESP32-S3-DEVKITC-1-N8	ESP32-S3-WROOM-1-N8	Board(s)	802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® 5.x (BLE), Transceiver	2.4 GHz
Espressif Systems ESP32-S3-WROOM-1U-N16R8				2.4 GHz	8 MB, 16 MB, 384 kB	Antenna Not Included, U.FL	Bluetooth, WiFi	97 mA	95 mA	150 Mbps	41-SMD Module	Surface Mount	20.5 dBm	802.11b/g/n, Bluetooth v5.0	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB	-103.5 dBm	355 mA	285 mA	65 °C	-40 °C	3.6 V	3 V
Espressif Systems ESP32-S3-DEVKITC-1-N32R8V	ESP32-S3-WROOM-2-N32R8V	Board(s)	802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® 5.x (BLE), Transceiver	2.4 GHz
Espressif Systems ESP32-S3-WROOM-1-N4				2.4 GHz	4 MB, 384 kB	PCB Trace	Bluetooth, WiFi	97 mA	95 mA	150 Mbps	41-SMD Module	Surface Mount	20.5 dBm	802.11b/g/n, Bluetooth v5.0	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB	-103.5 dBm	355 mA	285 mA	85 °C	-40 °C	3.6 V	3 V	ESP32-S3
Espressif Systems ESP32-S3-LCD-EV-BOARD		Accessories, Board(s)	Display																				ESP32-S3-WROOM-1, FT5x06, GC9503CV	Accessories, Board(s)	Capacitive Touch Screen	3.95 in	480x480	LCD Touch Screen
Espressif Systems ESP32-S3-WROOM-1-N16R2				2.4 GHz		PCB Trace	Bluetooth, WiFi	97 mA	95 mA	150 Mbps	41-SMD Module	Surface Mount	20.5 dBm	802.11b/g/n, Bluetooth v5.0	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB	-103.5 dBm	355 mA	285 mA	85 °C	-40 °C	3.6 V	3 V	ESP32-S3R2
Espressif Systems ESP32-S3-WROOM-1U-N16R2				2.4 GHz		Antenna Not Included, U.FL	Bluetooth, WiFi	97 mA	95 mA	150 Mbps	41-SMD Module	Surface Mount	20.5 dBm	802.11b/g/n, Bluetooth v5.0	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB	-103.5 dBm	355 mA	285 mA	85 °C	-40 °C	3.6 V	3 V	ESP32-S3R2
Espressif Systems ESP32-S3-WROOM-1U-N8R2				2.4 GHz	2 MB, 8 MB, 384 kB	Antenna Not Included, U.FL	Bluetooth, WiFi	97 mA	95 mA	150 Mbps	41-SMD Module	Surface Mount	20.5 dBm	802.11b/g/n, Bluetooth v5.0	ADC, GPIO, I2C, I2S, PWM, SPI, UART, USB	-103.5 dBm	355 mA	285 mA	85 °C	-40 °C	3.6 V	3 V	ESP32-S3R2
Espressif Systems ESP32-S3-BOX-LITE		Board(s)	Audio																				ESP32-S3	Board(s)				Voice Recognition
Espressif Systems ESP32-S3-KORVO-2-LCD	ESP32-S3	Accessories, Board(s), Cable(s)	802.11 a/b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® 5.x (BLE), Transceiver	2.4 GHz
