PWD5T60TR
ActiveCOMPACT HIGH-VOLTAGE THREE-PHASE POWER STAGE WITH INTEGRATED GATE DRIVER
Deep-Dive with AI
Search across all available documentation for this part.
PWD5T60TR
ActiveCOMPACT HIGH-VOLTAGE THREE-PHASE POWER STAGE WITH INTEGRATED GATE DRIVER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PWD5T60TR |
|---|---|
| Applications | General Purpose |
| Current - Output | 14 A |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Interface | Logic |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Motor Type - Stepper | Multiphase |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Half Bridge (3) |
| Package / Case | 36-PowerVQFN |
| Supplier Device Package | 36-VFQFPN (12x12) |
| Supplier Device Package [x] | 12 |
| Supplier Device Package [y] | 12 |
| Technology | Power MOSFET |
| Voltage - Load [Max] | 400 V |
| Voltage - Load [Min] | 10 V |
| Voltage - Supply [Max] | 20 V |
| Voltage - Supply [Min] | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.99 | |
| 10 | $ 5.47 | |||
| 25 | $ 4.82 | |||
| 100 | $ 4.10 | |||
| 250 | $ 3.75 | |||
| 500 | $ 3.53 | |||
| 1000 | $ 3.35 | |||
| Digi-Reel® | 1 | $ 7.99 | ||
| 10 | $ 5.47 | |||
| 25 | $ 4.82 | |||
| 100 | $ 4.10 | |||
| 250 | $ 3.75 | |||
| 500 | $ 3.53 | |||
| 1000 | $ 3.35 | |||
| Tape & Reel (TR) | 2500 | $ 3.21 | ||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 8.17 | |
| 10 | $ 6.74 | |||
| 25 | $ 6.39 | |||
| 50 | $ 6.20 | |||
| 100 | $ 6.00 | |||
| 250 | $ 5.80 | |||
| 500 | $ 5.65 | |||
Description
General part information
PWD5T60 Series

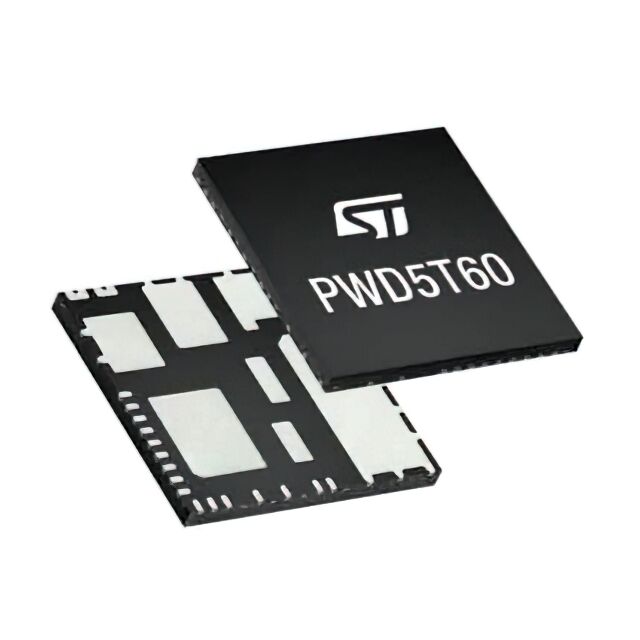

The PWD5T60 is a is a three-phase high-density power driver integrating gate driver and six N-channel power MOSFETs. The PWD5T60 is the optimal solution for motor drive applications such as fans, pumps and small appliances.
The integrated power MOSFETs have RDS(on) of 1.38 Ω and 500 V blocking voltage. The high integration of the device allows to efficiently drive loads with reduced footprint, making PWD5T60 the optimal solution for space constrained applications.
The device has dedicated input pins for each output and a shutdown pin. The logic inputs are CMOS/TTL compatible down to 3.3 V for easy interfacing with control devices. Matched delays between low-side and high-side sections guarantee no cycle distortion and allow high-frequency operation.
