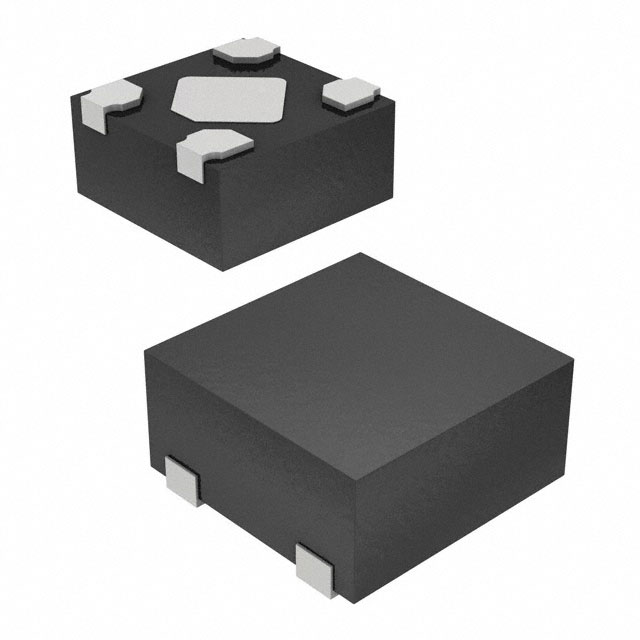

LDLN025PU32R
ActiveSTMicroelectronics
IC REG LINEAR 3.2V 250MA 4DFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LDLN025PU32R
ActiveSTMicroelectronics
IC REG LINEAR 3.2V 250MA 4DFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LDLN025PU32R |
|---|---|
| Control Features | Enable |
| Current - Output | 250 mA |
| Current - Supply (Max) [Max] | 425 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | 4-XDFN Exposed Pad |
| Protection Features | Over Temperature, Short Circuit, Soft Start, Over Current |
| PSRR [Max] | 80 dB |
| PSRR [Min] | 60 dB |
| Supplier Device Package | 4-DFN (1x1) |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Output (Min/Fixed) | 3.2 V |
| Voltage Dropout (Max) [Max] | 0.25 V |
LDLN025 Series
250 mA ultra-low noise LDO
| Part | Current - Output | Current - Supply (Max) [Max] | Control Features | Number of Regulators | Supplier Device Package | PSRR [Max] | PSRR [Min] | Voltage - Output (Min/Fixed) | Voltage - Input (Max) [Max] | Output Type | Mounting Type | Package / Case | Protection Features | Voltage Dropout (Max) [Max] | Output Configuration | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics | 250 mA | 425 µA | Enable | 1 | 4-FlipChip | 80 dB | 60 dB | 3.2 V | 5.5 V | 1.81 mOhm | Surface Mount | 4-XFBGA FCBGA | Over Current Over Temperature Short Circuit Soft Start | 0.2 V | Positive | -40 °C | 125 ¯C |
STMicroelectronics | 250 mA | 425 µA | Enable | 1 | 4-FlipChip | 80 dB | 60 dB | 2.75 V | 5.5 V | 1.81 mOhm | Surface Mount | 4-XFBGA | Over Current Over Temperature Short Circuit Soft Start | 0.25 V | Positive | -40 °C | 125 ¯C |
STMicroelectronics | 250 mA | 425 µA | Enable | 1 | 4-FlipChip | 80 dB | 60 dB | 2.5 V | 5.5 V | 1.81 mOhm | Surface Mount | 4-XFBGA FCBGA | Over Current Over Temperature Short Circuit Soft Start | 0.2 V | Positive | -40 °C | 125 ¯C |
STMicroelectronics | 250 mA | 425 µA | Enable | 1 | 4-DFN (1x1) | 80 dB | 60 dB | 1.2 V | 5.5 V | 1.81 mOhm | Surface Mount | 4-XDFN Exposed Pad | Over Current Over Temperature Short Circuit Soft Start | 0.25 V | Positive | -40 °C | 125 ¯C |
STMicroelectronics | 250 mA | 425 µA | Enable | 1 | 4-FlipChip | 80 dB | 60 dB | 3.3 V | 5.5 V | 1.81 mOhm | Surface Mount | 4-XFBGA FCBGA | Over Current Over Temperature Short Circuit Soft Start | 0.2 V | Positive | -40 °C | 125 ¯C |
STMicroelectronics | 250 mA | 425 µA | Enable | 1 | SOT-23-5 | 80 dB | 60 dB | 5.5 V | 1.81 mOhm | Surface Mount | SC-74A SOT-753 | Over Current Over Temperature Short Circuit Soft Start | 0.2 V | Positive | -40 °C | 125 ¯C | |
STMicroelectronics | 250 mA | 425 µA | Enable | 1 | SOT-23-5 | 80 dB | 60 dB | 4.5 V | 5.5 V | 1.81 mOhm | Surface Mount | SC-74A SOT-753 | Over Current Over Temperature Short Circuit Soft Start | 0.2 V | Positive | -40 °C | 125 ¯C |
STMicroelectronics | 250 mA | 425 µA | Enable | 1 | 4-DFN (1x1) | 80 dB | 60 dB | 3.2 V | 5.5 V | 1.81 mOhm | Surface Mount | 4-XDFN Exposed Pad | Over Current Over Temperature Short Circuit Soft Start | 0.25 V | Positive | -40 °C | 125 ¯C |
STMicroelectronics | 250 mA | 425 µA | Enable | 1 | SOT-23-5 | 80 dB | 60 dB | 3.3 V | 5.5 V | 1.81 mOhm | Surface Mount | SC-74A SOT-753 | Over Current Over Temperature Short Circuit Soft Start | 0.2 V | Positive | -40 °C | 125 ¯C |
STMicroelectronics | 250 mA | 425 µA | Enable | 1 | 4-DFN (1x1) | 80 dB | 60 dB | 2.9 V | 5.5 V | 1.81 mOhm | Surface Mount | 4-XDFN Exposed Pad | Over Current Over Temperature Short Circuit Soft Start | 0.25 V | Positive | -40 °C | 125 ¯C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.53 | |
| 10 | $ 0.45 | |||
| 25 | $ 0.42 | |||
| 100 | $ 0.34 | |||
| 250 | $ 0.31 | |||
| 500 | $ 0.27 | |||
| 1000 | $ 0.21 | |||
| 2500 | $ 0.19 | |||
| Digi-Reel® | 1 | $ 0.53 | ||
| 10 | $ 0.45 | |||
| 25 | $ 0.42 | |||
| 100 | $ 0.34 | |||
| 250 | $ 0.31 | |||
| 500 | $ 0.27 | |||
| 1000 | $ 0.21 | |||
| 2500 | $ 0.19 | |||
| Tape & Reel (TR) | 5000 | $ 0.18 | ||
| 10000 | $ 0.16 | |||
| 25000 | $ 0.15 | |||
| 50000 | $ 0.15 | |||
Description
General part information
LDLN025 Series
The LDLN025 is a 250 mA low-dropout voltage regulator, able to work with an input voltage range from 1.5 V to 5.5 V.
The typical dropout voltage at 250 mA load is 120 mV.
The very low quiescent current, which is just 12 μA at no-load, extends battery-life of applications requiring very long standby time.
Documents
Technical documentation and resources
