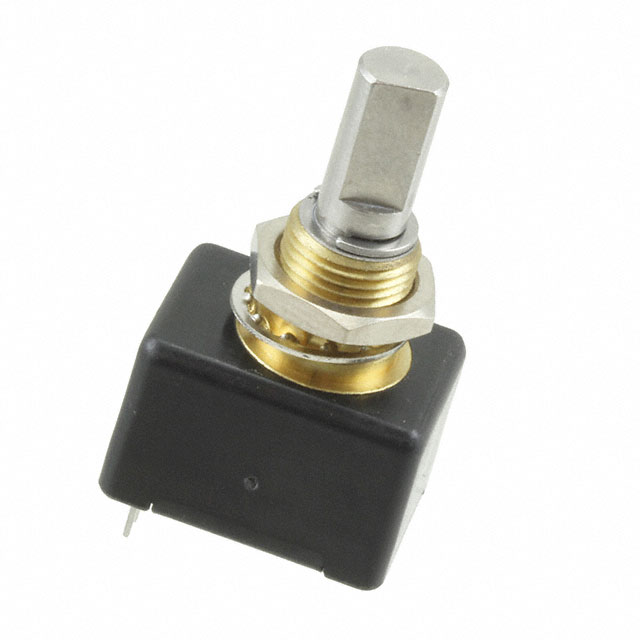

EMS22Q51-C28-LS4

Active

Bourns Inc.

ENCODER - ROTARY MAGNETIC /TRAY PACKAGING

Search across all available documentation for this part.

Active

Bourns Inc.

ENCODER - ROTARY MAGNETIC /TRAY PACKAGING

Technical Specifications

Parameters and characteristics for this part

Part	Orientation	Actuator Type	Termination Style	Output Type	Encoder Type	Pulses per Revolution	Rotational Life (Cycles Min) [Min]	Rotational Life (Cycles Min)	Actuator Type
Bourns Inc. EMS22Q51-D28-LT4	Vertical	1/8" Dia Round End	PC Pin	Quadrature (Incremental)	Magnetic	256 pulses per revolution	50M
Bourns Inc. EMS22Q51-C28-LS4	Vertical	Flatted End	PC Pin	Quadrature (Incremental)	Magnetic	256 pulses per revolution		100M	0.25
Bourns Inc. EMS22Q51-D28-LW4	Vertical	1/8" Dia Round End	PC Pin	Quadrature (Incremental)	Magnetic	256 pulses per revolution	50M
Bourns Inc. EMS22Q51-B28-LS3	Vertical	1/4" Dia Round End	PC Pin	Quadrature (Incremental)	Magnetic	128		100M

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Encoder Magnetic 256 Quadrature (Incremental) Vertical
