General part information

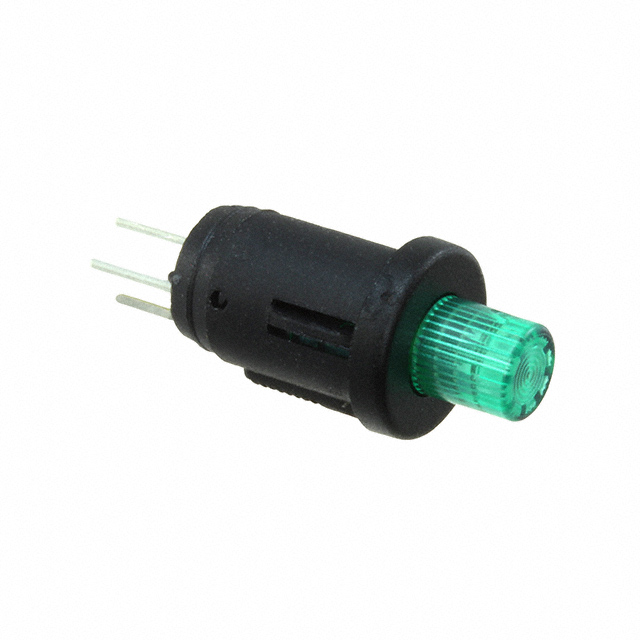

Pushbutton Switches LDS N.O. 1P BEL./ILL
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 0041.9156.5127 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Green |
| Current Rating (Amps) | 200 mA |
| Electrical Life | 10000 Cycles |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 2 VDC |
| Ingress Protection | IP40 |
| Mechanical Life | 10000 Steps |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 8 mm |
| Switch Function | Off-On |
| Termination Style | PC Pin |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 60 V |
| Voltage Rating - DC | 50 VDC |
Pushbutton Switches LDS N.O. 1P BEL./ILL
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Voltage Rating - DC | Mechanical Life | Current Rating (Amps) | Actuator Type | Type | Actuator Marking | Illumination Type, Color | Termination Style | Color - Actuator/Cap | Mounting Type | Illumination Voltage (Nominal) | Electrical Life | Switch Function | Voltage Rating - AC | Panel Cutout Dimensions [diameter] | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. 0041.9156.5127 | -25 °C | 60 °C | SPST-NO | 50 VDC | 10000 Steps | 200 mA | Button, Round | Illuminated, Standard | No Marking | Green, LED | PC Pin | Green | Panel Mount, Front | 2 VDC | 10000 Cycles | Off-On | 60 V | 8 mm | IP40 |
