BQ24780SRUYR
ActiveSMBUS 1-4 CELL BUCK BATTERY CHARGE CONTROLLER TO SUPPORT HYBRID POWER BOOST MODE 28-WQFN -40 TO 85
Deep-Dive with AI
Search across all available documentation for this part.
BQ24780SRUYR
ActiveSMBUS 1-4 CELL BUCK BATTERY CHARGE CONTROLLER TO SUPPORT HYBRID POWER BOOST MODE 28-WQFN -40 TO 85
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24780SRUYR | BQ24780S Series |
|---|---|---|
| Battery Chemistry | Multi-Chemistry | Multi-Chemistry |
| Fault Protection | Over Current, Over Voltage, Short Circuit | Over Current, Over Voltage, Short Circuit |
| Interface | SMBus | SMBus |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Cells [Max] [custom] | 4 | 4 |
| Number of Cells [Min] [custom] | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |

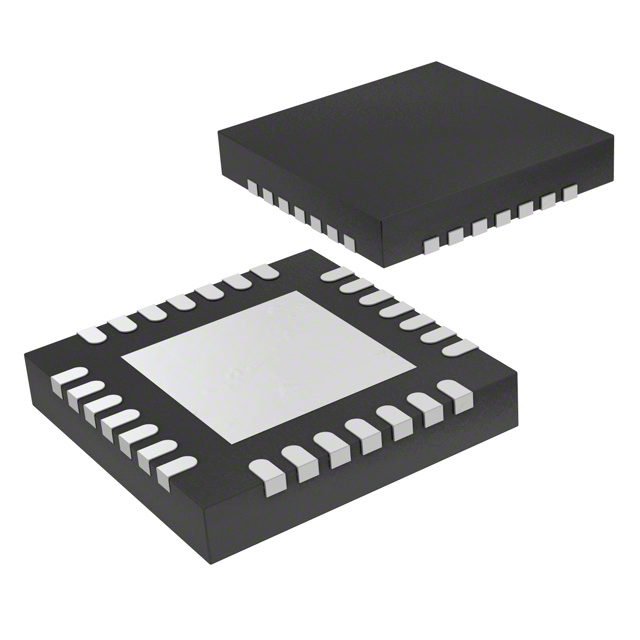

| Package / Case | 28-WFQFN Exposed Pad | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-WQFN (4x4) | 28-WQFN (4x4) |
| Voltage - Supply (Max) [Max] | 24 V | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| CHIPMALL.COM LIMITED | N/A | 50 | $ 0.59 | |
| 150 | $ 0.50 | |||
| 2500 | $ 0.46 | |||
| DigiKey | N/A | 1 | $ 2.76 | |
| 10 | $ 2.05 | |||
| 25 | $ 1.88 | |||
| 100 | $ 1.69 | |||
| 250 | $ 1.59 | |||
| 500 | $ 1.54 | |||
| 1000 | $ 1.49 | |||
| 3000 | $ 1.31 | |||
| Digikey | Cut Tape (CT) | 1 | $ 2.81 | |
| 10 | $ 2.52 | |||
| 25 | $ 2.39 | |||
| 100 | $ 2.07 | |||
| 250 | $ 1.96 | |||
| 500 | $ 1.76 | |||
| 1000 | $ 1.48 | |||
| Digi-Reel® | 1 | $ 2.81 | ||
| 10 | $ 2.52 | |||
| 25 | $ 2.39 | |||
| 100 | $ 2.07 | |||
| 250 | $ 1.96 | |||
| 500 | $ 1.76 | |||
| 1000 | $ 1.48 | |||
| Tape & Reel (TR) | 3000 | $ 1.41 | ||
| 6000 | $ 1.36 | |||
| LCSC | N/A | 1 | $ 1.16 | |
| 1 | $ 1.16 | |||
| 10 | $ 0.94 | |||
| 10 | $ 0.94 | |||
| 30 | $ 0.84 | |||
| 30 | $ 0.84 | |||
| 100 | $ 0.72 | |||
| 100 | $ 0.72 | |||
| 1000 | $ 0.64 | |||
| 1000 | $ 0.64 | |||
| 3000 | $ 0.63 | |||
| 3000 | $ 0.63 | |||
| Mouser Electronics | N/A | 1 | $ 2.75 | |
| 10 | $ 1.88 | |||
| 100 | $ 1.69 | |||
| 250 | $ 1.60 | |||
| 500 | $ 1.54 | |||
| 1000 | $ 1.50 | |||
| 3000 | $ 1.31 | |||
| 6000 | $ 1.29 | |||
| Semour Electronics Co Ltd | N/A | 1 | $ 0.43 | |
| 100 | $ 0.36 | |||
| 750 | $ 0.33 | |||
| 1500 | $ 0.32 | |||
| Texas Instruments | LARGE T&R | 1 | $ 2.12 | |
| 100 | $ 1.86 | |||
| 250 | $ 1.30 | |||
| 1000 | $ 1.05 | |||
| Win Source Electronics | N/A | 115 | $ 0.45 | |
| 240 | $ 0.42 | |||
| 370 | $ 0.41 | |||
| 535 | $ 0.38 | |||
| 690 | $ 0.36 | |||
| 865 | $ 0.35 | |||
BQ24780S Series
SMBus 1-4 cell Buck battery charge controller to support hybrid power boost mode
| Part | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Battery Chemistry | Interface | Fault Protection | Package / Case | Supplier Device Package | Voltage - Supply (Max) [Max] | Number of Cells [Max] [custom] | Number of Cells [Min] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24780SRUYR | Surface Mount | 85 °C | -40 °C | Multi-Chemistry | SMBus | Over Current, Over Voltage, Short Circuit | 28-WFQFN Exposed Pad | 28-WQFN (4x4) | 24 V | 4 | 1 |
Texas Instruments BQ24780SRUYT | Surface Mount | 85 °C | -40 °C | Multi-Chemistry | SMBus | Over Current, Over Voltage, Short Circuit | 28-WFQFN Exposed Pad | 28-WQFN (4x4) | 24 V | 4 | 1 |
Description
General part information
BQ24780S Series
The bq24780S device is a high-efficiency, synchronous battery charger, offering low component count for space-constrained, multi-chemistry battery charging applications.
The bq24780S device supports hybrid power boost mode (previously called "turbo boost mode"). It allows battery discharge energy to system when system power demand is temporarily higher than adapter maximum power level. Therefore, adapter does not crash.
The bq24780S device uses two charge pumps to separately drive N-channel MOSFETs (ACFET, RBFET, and BATFET) for automatic system power source selection.
