10GPTSTRGRE250

Active

Remington Industries

HOOK-UP STRND 10AWG 60V GRN 250'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

10GPTSTRGRE250

Active

Remington Industries

HOOK-UP STRND 10AWG 60V GRN 250'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10GPTSTRGRE250

Cable Type	Hook-Up
Conductor Material	Copper, Bare
Conductor Strand [custom]	19
Conductor Strand [custom]	23 AWG
Features	Chemical Resistant, Oil Resistant, Abrasion Resistant, Solvent Resistant
Jacket (Insulation) Diameter [diameter]	4.45 mm
Jacket (Insulation) Diameter [diameter]	0.175 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Green
Length	3000 "
Length	76.2 m
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Voltage	60 V
Wire Gauge	10 AWG

10GPTSTR Series

Part	Jacket Color	Features	Jacket (Insulation) Material	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Voltage	Length	Length
Remington Industries 10GPTSTRRED100	Red	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Poly-Vinyl Chloride (PVC)	Copper Bare	85 °C	-40 °C	Hook-Up	19	23 AWG	10 AWG	4.45 mm	0.175 in	30.5 m	100 ft	60 V
Remington Industries 10GPTSTRGRE100	Green	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Poly-Vinyl Chloride (PVC)	Copper Bare	85 °C	-40 °C	Hook-Up	19	23 AWG	10 AWG	4.45 mm	0.175 in	30.5 m	100 ft	60 V
Remington Industries 10GPTSTRBLA250	Black	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Poly-Vinyl Chloride (PVC)	Copper Bare	85 °C	-40 °C	Hook-Up	19	23 AWG	10 AWG	4.45 mm	0.175 in			60 V	3000 "	76.2 m
Remington Industries 10GPTSTRGRE250	Green	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Poly-Vinyl Chloride (PVC)	Copper Bare	85 °C	-40 °C	Hook-Up	19	23 AWG	10 AWG	4.45 mm	0.175 in			60 V	3000 "	76.2 m
Remington Industries 10GPTSTRWHI100		Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Poly-Vinyl Chloride (PVC)	Copper Bare	85 °C	-40 °C	Hook-Up	19	23 AWG	10 AWG	4.45 mm	0.175 in	30.5 m	100 ft	60 V
Remington Industries 10GPTSTRWHI250		Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Poly-Vinyl Chloride (PVC)	Copper Bare	85 °C	-40 °C	Hook-Up	19	23 AWG	10 AWG	4.45 mm	0.175 in			60 V	3000 "	76.2 m
Remington Industries 10GPTSTRBLU100	Blue	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Poly-Vinyl Chloride (PVC)	Copper Bare	85 °C	-40 °C	Hook-Up	19	23 AWG	10 AWG	4.45 mm	0.175 in	30.5 m	100 ft	60 V
Remington Industries 10GPTSTRYEL250	Yellow	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Poly-Vinyl Chloride (PVC)	Copper Bare	85 °C	-40 °C	Hook-Up	19	23 AWG	10 AWG	4.45 mm	0.175 in			60 V	3000 "	76.2 m
Remington Industries 10GPTSTRRED250	Red	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Poly-Vinyl Chloride (PVC)	Copper Bare	85 °C	-40 °C	Hook-Up	19	23 AWG	10 AWG	4.45 mm	0.175 in			60 V	3000 "	76.2 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 132.03

Description

General part information

10GPTSTR Series

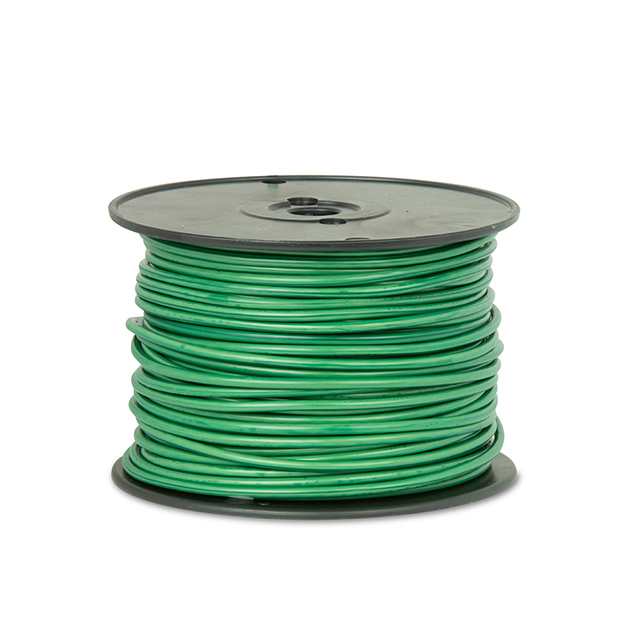

10 AWG Hook-Up Wire 19/23 Green 60V 250.0' (76.2m)

Documents

Technical documentation and resources
