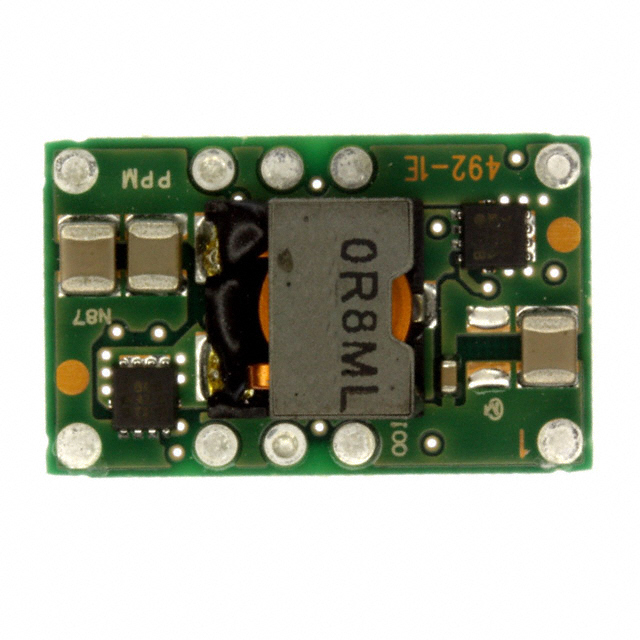

MPDTH05060WAS

Active

Murata Power Solutions Inc.

DC DC CONVERTER 0.8-3.6V 36W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 0.8-3.6V 36W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 0.8-3.6V 36W

Part	Mounting Type	Control Features	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Type	Features	Package / Case	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Number of Outputs	Voltage - Input (Max) [Max]
Murata Power Solutions Inc. MPDTH05060WAS	Surface Mount	Active High, Enable	10 A	4.5 V	85 °C	-40 °C	ITE (Commercial)	Non-Isolated PoL Module	OCP, Remote On/Off, SCP, UVLO	10-SMD Module	0.8 V	3.6 V	94 %	9.6 mm	0.99 in	0.62 "	15.8 mm	25.3 mm	0.38 in	36 W	1	5.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.6V 10A 4.5V - 5.5V Input
