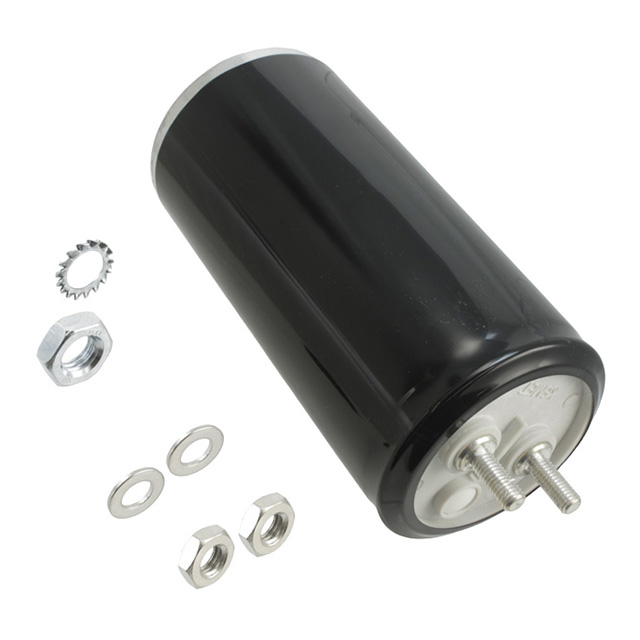

C44UJGT6425A7SK

Active

KEMET

CAP FILM 425UF 10% 700VDC RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP FILM 425UF 10% 700VDC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	C44UJGT6425A7SK

Applications	DC Link, DC Filtering
Capacitance	425 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	3.2 mOhm
Features	Long Life
Height - Seated (Max) [Max] [z]	5.748 in
Height - Seated (Max) [Max] [z]	146 mm
Lead Spacing	1.248 in
Lead Spacing	31.7 mm
Mounting Type	Chassis, Stud Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Size / Dimension [diameter]	2.992 in
Size / Dimension [diameter]	76 mm
Termination	Threaded, Female
Tolerance	10 %
Voltage Rating - DC	700 VDC

Part	Capacitance	Features	Termination	Lead Spacing	Lead Spacing	Tolerance	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Dielectric Material	ESR (Equivalent Series Resistance)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage Rating - DC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET C44UJGT6120A7TK	120 µF	Long Life	Threaded Female	1.248 in	31.7 mm	10 %	Radial Can	61 mm	2.402 in	Metallized Polypropylene (PP)	1.1 mOhms	85 °C	-40 °C	Chassis Stud Mount	DC Filtering DC Link	2.992 in	76 mm	700 VDC
KEMET C44UJGT6425A7SK	425 µF	Long Life	Threaded Female	1.248 in	31.7 mm	10 %	Radial Can			Metallized Polypropylene (PP)	3.2 mOhm	85 °C	-40 °C	Chassis Stud Mount	DC Filtering DC Link	2.992 in	76 mm	700 VDC	5.748 in	146 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

425 µF Film Capacitor 700V Polypropylene (PP), Metallized Radial, Can
