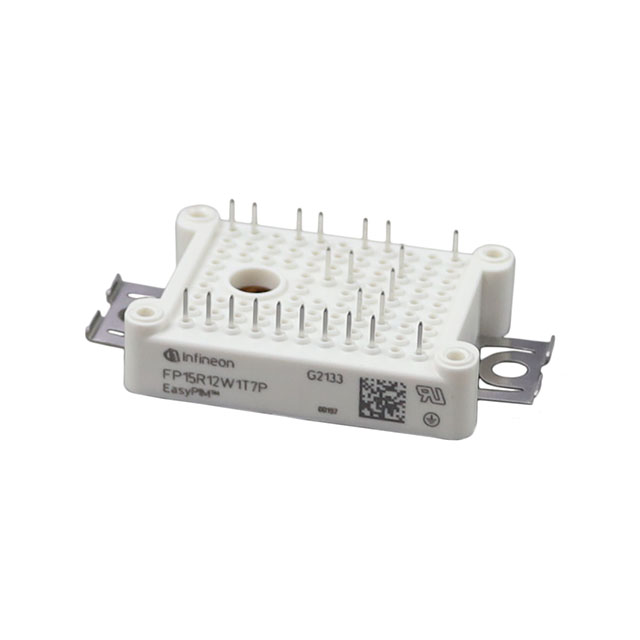

FP15R12W1T7PBPSA1

Active

Infineon Technologies

THE FP15R12W1T7P IS A PIM IGBT7 - T7 MODULE IN A EASYPIM™ 1B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 15 A.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FP15R12W1T7PBPSA1

Active

Infineon Technologies

THE FP15R12W1T7P IS A PIM IGBT7 - T7 MODULE IN A EASYPIM™ 1B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 15 A.

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FP15R12W1T7PBPSA1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max) [Max]	15 A
IGBT Type	Trench Field Stop
Input	Three Phase Bridge Rectifier
Input Capacitance (Cies) @ Vce	2.82 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C
Package / Case	Module
Supplier Device Package	AG-EASY1B
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

FP15R12 Series

Part	Input	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Power - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Collector (Ic) (Max) [Max]	Vce(on) (Max) @ Vge, Ic	Supplier Device Package	Package / Case	Mounting Type	Configuration	Input Capacitance (Cies) @ Vce	IGBT Type	Current - Collector (Ic) (Max)	Operating Temperature
Infineon Technologies FP15R12KS4CBOSA1	Standard	1200 V	5 mA	180 W	125 °C	-40 °C	30 A	3.7 V	Module	Module	Chassis Mount	Single	1 nF
Infineon Technologies FP15R12W1T4BOMA1	Standard	1200 V	1 mA	130 W			28 A	2.25 V	Module	Module	Chassis Mount	Three Phase Inverter	890 pF	Trench Field Stop
Infineon Technologies FP15R12W1T7PB3BPSA1
Infineon Technologies FP15R12KE3GBOSA1	Standard	1200 V	1 mA	105 W	125 °C	-40 °C	25 A		Module	Module	Chassis Mount	Three Phase Inverter	1.1 nF	Trench Field Stop
Infineon Technologies FP15R12W1T4PBPSA1	Three Phase Bridge Rectifier	1200 V	1 mA	20 mW			30 A	2.25 V	Module	Module	Chassis Mount	Three Phase Inverter	890 pF	Trench Field Stop
Infineon Technologies FP15R12W1T4B3BOMA1	Standard	1200 V	1 mA	130 W			28 A	2.25 V	Module	Module	Chassis Mount	Three Phase Inverter	890 pF	Trench Field Stop
Infineon Technologies FP15R12W1T7PBPSA1	Three Phase Bridge Rectifier	1200 V			175 °C	-40 C	15 A		AG-EASY1B	Module	Chassis Mount	Three Phase Inverter	2.82 nF	Trench Field Stop
Infineon Technologies FP15R12KT3BOSA1	Standard	1200 V	5 mA	83.5 W	125 °C	-40 °C		2.45 V	Module	Module	Chassis Mount	Three Phase Inverter	600 pF		18 A
Infineon Technologies FP15R12W1T7B3BOMA1	Standard	1200 V							AG-EASY1B-2	Module	Chassis Mount	Half Bridge Inverter		Trench Field Stop		175 °C
Infineon Technologies FP15R12W1T7B11BOMA1	Standard	1200 V							AG-EASY1B-2	Module	Chassis Mount	Half Bridge Inverter		Trench Field Stop		175 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 45.36
		30	$ 31.63

Description

General part information

FP15R12 Series

EasyPIM™1B 1200 V, 15 A three phase input rectifier PIM (Power Integrated Modules)IGBT modulewithTRENCHSTOP™ IGBT7, Emitter Controlled 7 diode, NTC and pre-appliedThermal Interface Material.

Documents

Technical documentation and resources
