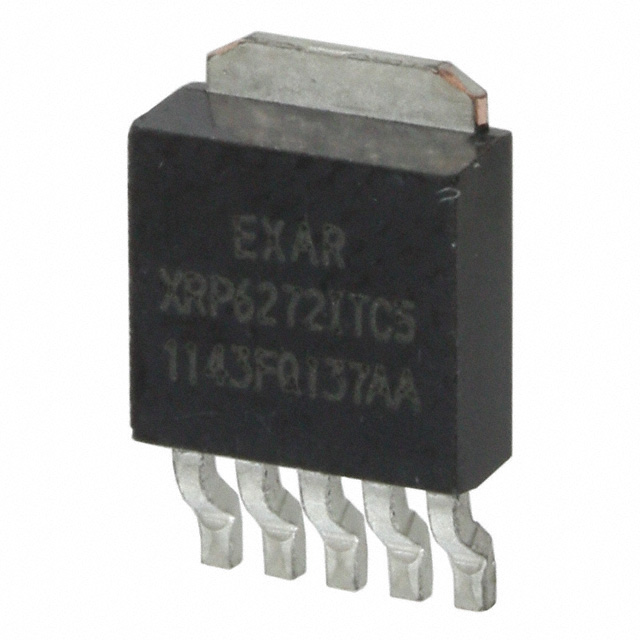

XRP6272ITC5TR-F

Active

MaxLinear, Inc.

IC REG LIN POS ADJ 2A TO252-5

Search across all available documentation for this part.

Active

MaxLinear, Inc.

IC REG LIN POS ADJ 2A TO252-5

Technical Specifications

Parameters and characteristics for this part

Specification	XRP6272ITC5TR-F

Control Features	Enable, Power Good
Current - Output	2 A
Current - Quiescent (Iq)	50 çA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	Adjustable (Fixed)
Package / Case	TO-252-6, DPAK (5 Leads + Tab)
Protection Features	Soft Start, Over Temperature, Over Current
PSRR	70 dB
Supplier Device Package	TO-252-5
Voltage - Input (Max) [Max]	6 V
Voltage - Output (Max) [Max]	5.4 V
Voltage - Output (Min/Fixed)	5 V
Voltage - Output (Min/Fixed) [Min]	0.7 V
Voltage Dropout (Max) [Max]	0.6 V

IC REG LIN POS ADJ 2A TO252-5

Part	Protection Features	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Current - Quiescent (Iq)	Current - Output	Output Configuration	Package / Case	PSRR	Voltage Dropout (Max) [Max]	Voltage - Output (Max) [Max]	Mounting Type	Output Type	Voltage - Input (Max) [Max]	Number of Regulators	Voltage - Output (Min/Fixed)	Voltage - Output (Min/Fixed) [Min]
MaxLinear, Inc. XRP6272ITC5TR-F	Over Current, Over Temperature, Soft Start	TO-252-5	85 °C	-40 °C	Enable, Power Good	50 çA	2 A	Positive	TO-252-6, DPAK (5 Leads + Tab)	70 dB	0.6 V	5.4 V	Surface Mount	Adjustable (Fixed)	6 V	1	5 V	0.7 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Adjustable (Fixed) 1 Output 2A TO-252-5
