ALZN1F24W
Panasonic Electric Works

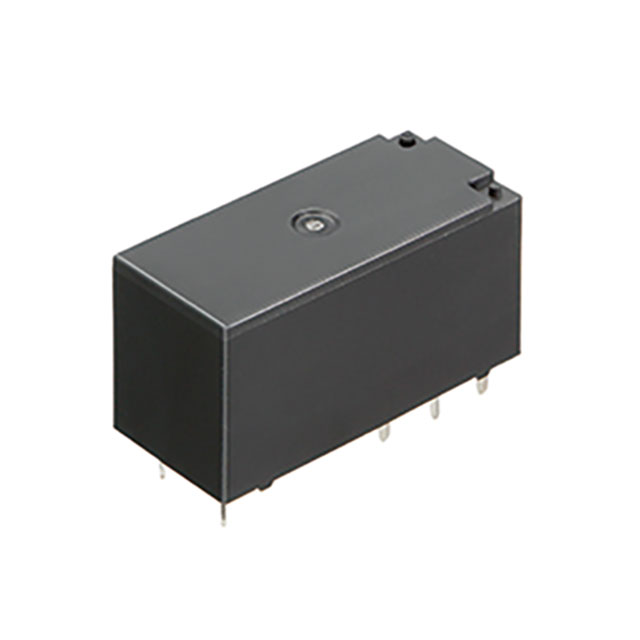

RELAY GEN PURPOSE SPDT 16A 24V
Deep-Dive with AI
Search across all available documentation for this part.
ALZN1F24W
Panasonic Electric Works
RELAY GEN PURPOSE SPDT 16A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ALZN1F24W |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 16.7 mA |
| Coil Insulation | Class F |
| Coil Resistance | 1440 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 16 A |
| Load - Max Switching | 7040 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Seal Rating | Sealed - Flux Protection |
| Switching Voltage | 440 VAC |
| Termination Style | PC Pin |
