DWM-19-58-L-S-405

Active

Samtec Inc.

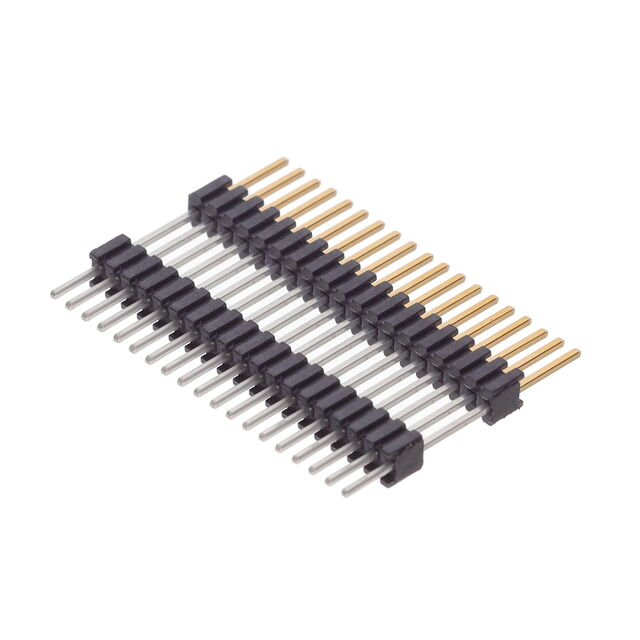

CONN HDR 19POS 0.05 STACK T/H

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 19POS 0.05 STACK T/H

Technical Specifications

Parameters and characteristics for this part

Specification	DWM-19-58-L-S-405

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin	17.907 mm
Length - Overall Pin	0.705 in
Length - Post (Mating) [x]	4.572 mm
Length - Post (Mating) [x]	0.18 in
Length - Stack Height [x]	0.405 in
Length - Stack Height [x]	10.287 mm
Length - Tail [x]	0.12 in
Length - Tail [x]	3.048 mm
Mounting Type	Through Hole
Number of Positions	19
Number of Rows	1
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Termination	Solder

Part	Number of Positions	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Color	Mounting Type	Length - Overall Pin	Length - Overall Pin	Row Spacing [x]	Row Spacing	Length - Tail [x]	Length - Tail [x]	Termination	Pitch [x]	Pitch [x]	Contact Finish - Post (Mating)	Length - Stack Height [x]	Length - Stack Height [x]	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Number of Rows	Length - Overall Pin [x]	Length - Overall Pin [x]
Samtec Inc. DWM-19-52-G-D-250	38	0.25 Ám	10 Áin	Black	Through Hole	10.8 mm	0.425 in	0.1 in	2.54 mm	0.12 in	3.048 mm	Solder	0.05 in	1.27 mm	Gold	0.25 in	6.35 mm	1.397 mm	0.055 in	2
Samtec Inc. DWM-19-61-S-D-810	38	0.76 µm	30 µin	Black	Through Hole			0.1 in	2.54 mm	0.12 in	3.048 mm	Solder	0.05 in	1.27 mm	Gold	0.81 in	20.574 mm	3.048 mm	0.12 in	2	1.05 in	26.67 mm
Samtec Inc. DWM-19-61-G-D-250	38	0.25 Ám	10 Áin	Black	Through Hole			0.1 in	2.54 mm	0.12 in	3.048 mm	Solder	0.05 in	1.27 mm	Gold	0.25 in	6.35 mm	17.272 mm	0.68 in	2	1.05 in	26.67 mm
Samtec Inc. DWM-19-58-L-S-405	19	0.25 Ám	10 Áin	Black	Through Hole	17.907 mm	0.705 in			0.12 in	3.048 mm	Solder	0.05 in	1.27 mm	Gold	0.405 in	10.287 mm	4.572 mm	0.18 in	1
Samtec Inc. DWM-19-59-L-D-485	38	0.25 Ám	10 Áin	Black	Through Hole			0.1 in	2.54 mm	0.12 in	3.048 mm	Solder	0.05 in	1.27 mm	Gold	0.485 in	12.319 mm	3.81 mm	0.15 in	2	0.755 in	19.177 mm
