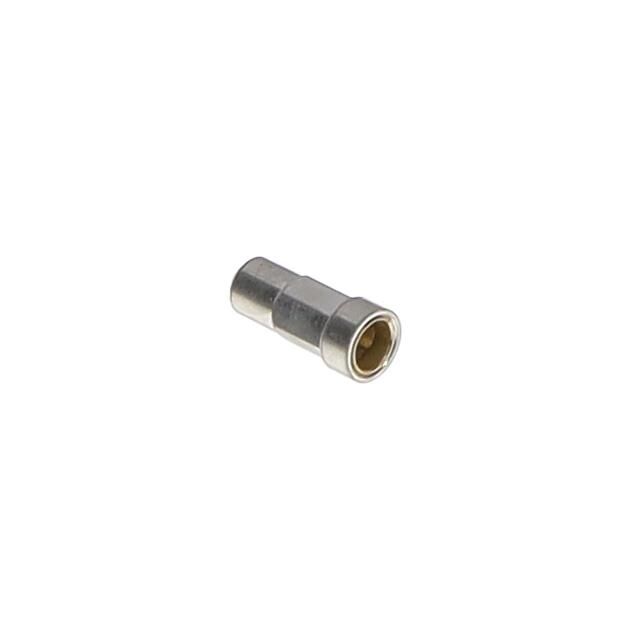

0342-0-15-01-42-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Technical Specifications

Parameters and characteristics for this part

Specification	0342-0-15-01-42-27-10-0

Accepts Pin Diameter [Max]	0.063 in
Accepts Pin Diameter [Max]	1.6 mm
Accepts Pin Diameter [Min]	0.059 in
Accepts Pin Diameter [Min]	1.5 mm
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	0.106 in
Flange Diameter [diameter]	2.69 mm
Length - Overall	6.1 mm
Length - Overall [x]	0.24 "
Mounting Hole Diameter [diameter]	0.09 in
Mounting Hole Diameter [diameter]	2.29 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Socket Depth	5.33 mm
Socket Depth	0.21 in
Tail Type	No Tail
Termination	Press-Fit, Hex

Part	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination	Socket Depth	Socket Depth	Contact Finish	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall [x]	Length - Overall	Tail Type	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Insertion Force	Operating Temperature [Min]	Operating Temperature [Max]
Mill-Max Manufacturing Corp. 0342-0-15-15-42-27-10-0	0.106 in	2.69 mm	Press-Fit Hex	5.33 mm	0.21 in	Gold	0.09 in	2.29 mm	0.24 "	6.1 mm	No Tail	0.059 in	0.063 in	1.6 mm	1.5 mm	Beryllium Copper	0.76 Ám	30 Áin	20 N	-55 °C	125 °C
Mill-Max Manufacturing Corp. 0342-0-15-01-42-27-10-0	0.106 in	2.69 mm	Press-Fit Hex	5.33 mm	0.21 in	Gold	0.09 in	2.29 mm	0.24 "	6.1 mm	No Tail	0.059 in	0.063 in	1.6 mm	1.5 mm	Beryllium Copper	0.76 Ám	30 Áin		-55 °C	125 °C
Mill-Max Manufacturing Corp. 0342-0-15-80-42-27-10-0	0.106 in	2.69 mm	Press-Fit Hex	5.33 mm	0.21 in	Gold	0.09 in	2.29 mm	0.24 "	6.1 mm	No Tail	0.059 in	0.063 in	1.6 mm	1.5 mm	Beryllium Copper	0.76 Ám	30 Áin		-55 °C	125 °C
Mill-Max Manufacturing Corp. 0342-0-15-01-42-01-10-0	0.106 in	2.69 mm	Press-Fit Hex	5.33 mm	0.21 in		0.09 in	2.29 mm	0.24 "	6.1 mm	No Tail	0.059 in	0.063 in	1.6 mm	1.5 mm	Beryllium Copper	0.76 Ám	30 Áin		-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.98

General part information

Pin Receptacle Connector 0.059" ~ 0.063" (1.50mm ~ 1.60mm) No Tail Press-Fit, Hex
