6-1437020-8

Active

TE Connectivity AMP Connectors

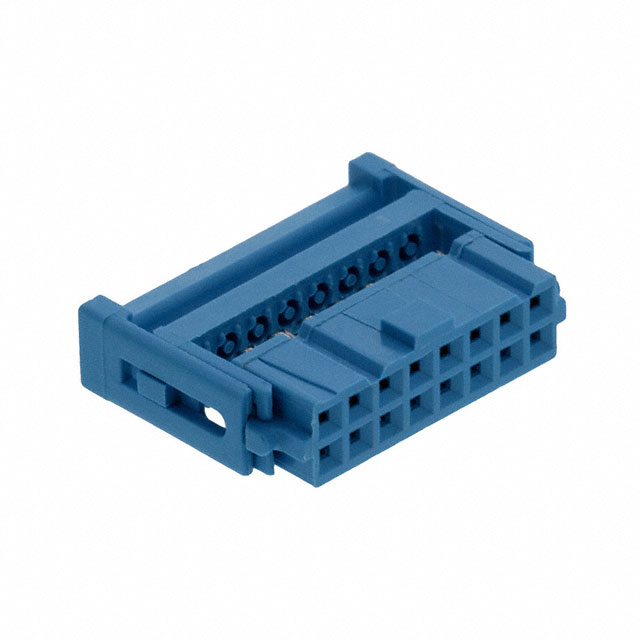

CONN RCPT 16P IDC 28-30AWG GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6-1437020-8

Active

TE Connectivity AMP Connectors

CONN RCPT 16P IDC 28-30AWG GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 6.41

Description

General part information

1437020 Series

16 Position Rectangular Receptacle Connector IDC Gold 28-30 AWG

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6-1437020-8	1437020 Series

Accessory Type	-	Strain Relief
Cable Termination	IDC	IDC
Color	Blue	Blue
Connector Type	Receptacle	Receptacle
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Contact Type	Female Socket	Female Socket
Features	Feed Through, Polarizing Key, Strain Relief	Polarizing Key, Feed Through, Strain Relief
For Use With/Related Products	-	AMP-LATCH Series
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	16	16
Number of Positions	-	10 - 26
Number of Rows	2	2
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in
Row Spacing	2.54 mm	2.54 mm
Row Spacing [x]	0.1 in	0.1 in
Wire Gauge [Max]	30 AWG	30 AWG
Wire Gauge [Min]	27.5 AWG	27.5 AWG
Wire Type	Ribbon Cable	Ribbon Cable

1437020 Series

CONN RCPT 14P IDC 28-30AWG GOLD

Part	Connector Type	Mounting Type	Contact Type	Color	Pitch [x]	Pitch [x]	Cable Termination	Number of Positions	Contact Finish	Number of Rows	Features	Row Spacing [x]	Row Spacing	Wire Gauge [Max]	Wire Gauge [Min]	Wire Type	Contact Finish Thickness	Contact Finish Thickness	For Use With/Related Products	Accessory Type	Number of Positions
TE Connectivity AMP Connectors 4-1437020-6	Receptacle	Free Hanging (In-Line)	Female Socket	Blue	2.54 mm	0.1 in	IDC	14	Gold	2	Feed Through, Polarizing Key	0.1 in	2.54 mm	30 AWG	27.5 AWG	Ribbon Cable	0.76 Ám	30 Áin
TE Connectivity AMP Connectors 1437020-2	Receptacle	Free Hanging (In-Line)	Female Socket	Blue	2.54 mm	0.1 in	IDC	26	Gold	2	Feed Through, Strain Relief	0.1 in	2.54 mm	30 AWG	27.5 AWG	Ribbon Cable	0.76 Ám	30 Áin
TE Connectivity AMP Connectors 4-1437020-9								14											AMP-LATCH Series	Strain Relief
TE Connectivity AMP Connectors 3-1437020-9	Receptacle	Free Hanging (In-Line)	Female Socket	Blue	2.54 mm	0.1 in	IDC	10	Gold	2	Feed Through, Polarizing Key, Strain Relief	0.1 in	2.54 mm	30 AWG	27.5 AWG	Ribbon Cable	0.76 Ám	30 Áin
TE Connectivity AMP Connectors 5-1437020-1								14											AMP-LATCH Series	Strain Relief
TE Connectivity AMP Connectors 6-1437020-1	Receptacle	Free Hanging (In-Line)	Female Socket	Blue	2.54 mm	0.1 in	IDC		Gold	2	Feed Through, Polarizing Key	0.1 in	2.54 mm	30 AWG	27.5 AWG	Ribbon Cable	0.76 Ám	30 Áin			16
TE Connectivity AMP Connectors 3-1437020-5								10											AMP-LATCH Series	Strain Relief
TE Connectivity AMP Connectors 3-1437020-7								10											AMP-LATCH Series	Strain Relief
TE Connectivity AMP Connectors 9-1437020-4								24											AMP-LATCH Series	Strain Relief
TE Connectivity AMP Connectors 6-1437020-8	Receptacle	Free Hanging (In-Line)	Female Socket	Blue	2.54 mm	0.1 in	IDC		Gold	2	Feed Through, Polarizing Key, Strain Relief	0.1 in	2.54 mm	30 AWG	27.5 AWG	Ribbon Cable	0.76 Ám	30 Áin			16
