HTAT-32/8-0-SP

Obsolete

TE Connectivity Raychem Cable Protection

HEAT SHRINK TUBING 1=1M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HTAT-32/8-0-SP

Obsolete

TE Connectivity Raychem Cable Protection

HEAT SHRINK TUBING 1=1M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HTAT-32/8-0-SP

Color	Black
Features	Flame Retardant, Fluid Resistant, Adhesive Lined
Inner Diameter - Recovered [diameter]	0.315 in
Inner Diameter - Recovered [diameter]	8 mm
Inner Diameter - Supplied [diameter]	1.26 in
Inner Diameter - Supplied [diameter]	32 mm
Length [x]	1 m
Length [x]	3.28 ft
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.098 in
Recovered Wall Thickness	2.49 mm
Shelf Life	36 Months
Shrink Temperature	80 °C
Shrinkage Ratio	4 to 1
Storage/Refrigeration Temperature [Max]	35 °C
Storage/Refrigeration Temperature [Min]	0 °C
Type	Semi-Flexible, Tubing

RAYCHEM HTAT Series

Part	Storage/Refrigeration Temperature [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Length [x]	Length [x]	Shrinkage Ratio	Operating Temperature [Min]	Operating Temperature [Max]	Features	Shrink Temperature	Material	Color	Shelf Life	Type	Length	Length	Length	Inner Diameter - Recovered	Inner Diameter - Recovered	Length [x]
TE Connectivity Raychem Cable Protection HTAT-4/1-0-STK	35 °C	0.158 in	4.01 mm	0.039 in	0.99 mm	0.99 mm	0.039 in	1.22 m	4 ft	4 to 1	-55 °C	125 °C	Adhesive Lined Flame Retardant Fluid Resistant	80 °C	Polyolefin (PO) Irradiated	Black	36 Months	Semi-Flexible Tubing
TE Connectivity Raychem Cable Protection HTAT-32/8-0-42MM	35 °C	1.26 in	32 mm	0.315 in	8 mm	2.49 mm	0.098 in			4 to 1	-55 °C	125 °C	Adhesive Lined Flame Retardant Fluid Resistant	80 °C	Polyolefin (PO) Irradiated	Black	36 Months	Semi-Flexible Tubing
TE Connectivity Raychem Cable Protection HTAT-12/3-0-SP	35 °C	0.472 in	11.99 mm	0.118 in	2.99 mm	1.4 mm	0.055 in	1 m	3.28 ft	4 to 1	-55 °C	125 °C	Adhesive Lined Flame Retardant Fluid Resistant	80 °C	Polyolefin (PO) Irradiated	Black	36 Months	Semi-Flexible Tubing
TE Connectivity Raychem Cable Protection HTAT-24/6-0-45MM	35 °C	0.945 "	24 mm			2.24 mm	0.088 in			4 to 1	-55 °C	125 °C	Adhesive Lined Flame Retardant Fluid Resistant	80 °C	Polyolefin (PO) Irradiated	Black	36 Months	Semi-Flexible Tubing	45 mm	0.147 ft	1.77 "	5.99 mm	0.236 in
TE Connectivity Raychem Cable Protection HTAT-4/1-0-35MM	35 °C	0.157 in	3.99 mm	0.039 in	0.99 mm	0.99 mm	0.039 in			4 to 1	-55 °C	125 °C	Adhesive Lined Flame Retardant Fluid Resistant	80 °C	Polyolefin (PO) Irradiated	Black	36 Months	Semi-Flexible Tubing	35 mm	0.114 '	1.37 "
TE Connectivity Raychem Cable Protection HTAT-12/3-0-STK	35 °C	0.472 in	11.99 mm	0.118 in	2.99 mm	1.4 mm	0.055 in	1.22 m	4 ft	4 to 1	-55 °C	125 °C	Adhesive Lined Flame Retardant Fluid Resistant	80 °C	Polyolefin (PO) Irradiated	Black	36 Months	Semi-Flexible Tubing
TE Connectivity Raychem Cable Protection HTAT-32/8-0-STK	35 °C	1.26 in	32 mm	0.315 in	8 mm	2.49 mm	0.098 in	1.22 m	4 ft	4 to 1	-55 °C	125 °C	Flame Retardant Fluid Resistant	80 °C	Polyolefin (PO) Irradiated	Black	36 Months	Semi-Flexible Tubing
TE Connectivity Raychem Cable Protection HTAT-16/4-0-STK	35 °C	0.63 in	16 mm	0.157 in	3.99 mm	1.75 mm	0.068 "	1.22 m	4 ft	4 to 1	-55 °C	125 °C	Adhesive Lined Flame Retardant Fluid Resistant	80 °C	Polyolefin (PO) Irradiated	Black	36 Months	Semi-Flexible Tubing
TE Connectivity Raychem Cable Protection HTAT-12/3-0-40MM	35 °C	0.472 in	11.99 mm			1.4 mm	0.055 in	40 mm	0.131 '	4 to 1	-55 °C	125 °C	Adhesive Lined Flame Retardant Fluid Resistant	80 °C	Polyolefin (PO) Irradiated	Black	36 Months	Semi-Flexible Tubing				3 mm	0.118 in	1.57 "
TE Connectivity Raychem Cable Protection HTAT-32/8-0-SP	35 °C	1.26 in	32 mm	0.315 in	8 mm	2.49 mm	0.098 in	1 m	3.28 ft	4 to 1	-55 °C	125 °C	Adhesive Lined Flame Retardant Fluid Resistant	80 °C	Polyolefin (PO) Irradiated	Black	36 Months	Semi-Flexible Tubing

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RAYCHEM HTAT Series

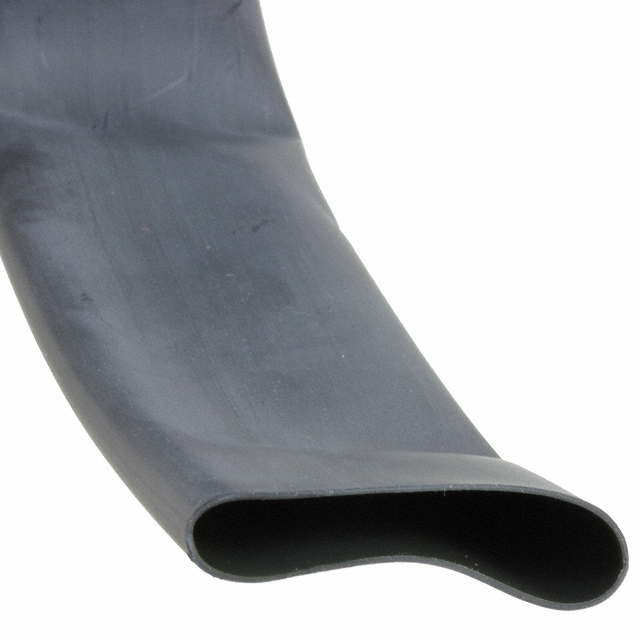

Heat Shrink Tubing, Semi-Flexible 1.260" (32.00mm) 4 to 1 Black 3.28' (1.00m)

Documents

Technical documentation and resources
