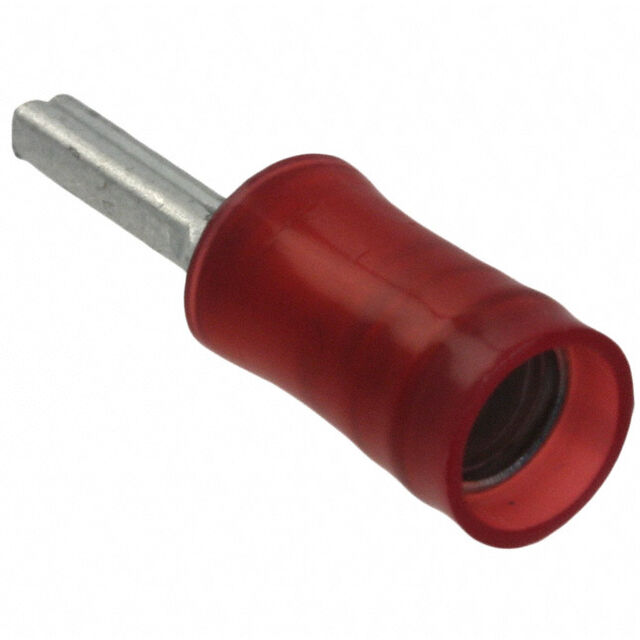

165142
ActiveTE Connectivity Raychem Cable Protection
TERMINALS PIN WIRE 22-16 AWG TIN
Deep-Dive with AI
Search across all available documentation for this part.
165142
ActiveTE Connectivity Raychem Cable Protection
TERMINALS PIN WIRE 22-16 AWG TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 165142 |
|---|---|
| Color | Red |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Insulated |
| Insulation Diameter [diameter] | 3.61 mm |
| Insulation Diameter [diameter] | 0.142 in |
| Length - Overall [x] | 0.795 in |
| Length - Overall [x] | 20.19 mm |
| Length - Pin [x] | 6.71 mm |
| Length - Pin [x] | 0.264 in |
| Material - Insulation | Nylon, Polyamide (PA) |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
130008 Series
Wire Pin, 1.8 mm [.07 in] Pin Diameter, 22 – 16 AWG, .3 – 1.42 mm² Wire, 493 – 3158 CMA, Closed Barrel, Tin Plating, 20.2 mm [.8 in] Length, PIDG
