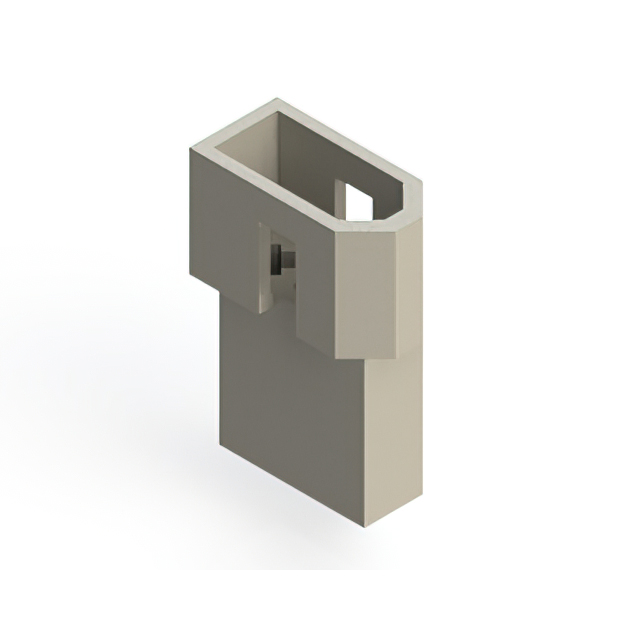

556-003-000-201 - 556-003-000-201

556-003-000-201

Active
EDAC Inc.

CONNECTOR HOUSING, 556 SERIES, PLUG, 3 POSITIONS, 3.96 MM, EDAC 516 SERIES CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetInterconnect Solutions Brochure+1
556-003-000-201 - 556-003-000-201

556-003-000-201

Active
EDAC Inc.

CONNECTOR HOUSING, 556 SERIES, PLUG, 3 POSITIONS, 3.96 MM, EDAC 516 SERIES CONTACTS

Deep-Dive with AI

DocumentsDatasheetInterconnect Solutions Brochure+1

Technical Specifications

Parameters and characteristics for this part

Specification556-003-000-201
ColorNatural
Connector TypeReceptacle
Contact TerminationCrimp
Fastening TypeDetent Lock
Insulation MaterialPolyamide (PA), Nylon
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Rows1
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
Pitch [x]0.156 in
Pitch [x]3.96 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 0.92
10$ 0.70
25$ 0.63
50$ 0.58
100$ 0.54
250$ 0.48
500$ 0.45
1000$ 0.42
2500$ 0.38
NewarkEach 25$ 0.99
100$ 0.90
250$ 0.81
500$ 0.74
1000$ 0.72
2500$ 0.65

Description

General part information

556-003 Series

3 Rectangular Connectors - Housings Receptacle Natural 0.156" (3.96mm)
