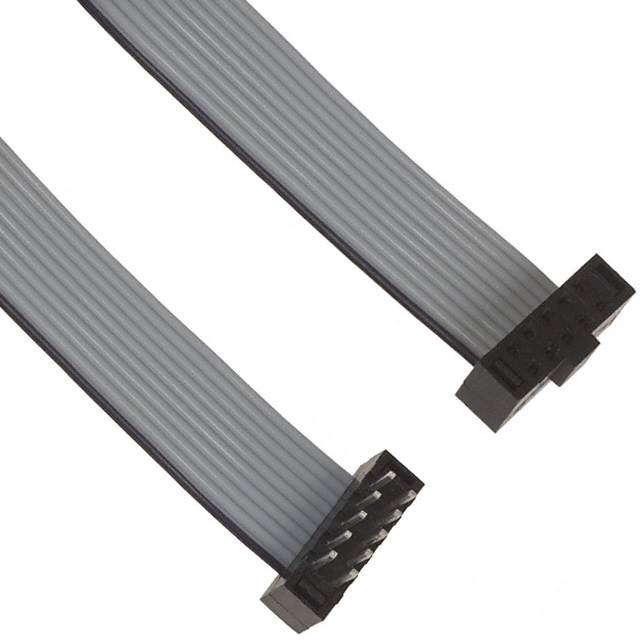

TCMD-05-T-03.00-01-N

Active

Samtec Inc.

2MM DOUBLE ROW MALE IDC ASSEMBLY

Search across all available documentation for this part.

Active

Samtec Inc.

2MM DOUBLE ROW MALE IDC ASSEMBLY

Technical Specifications

Parameters and characteristics for this part

Ribbon Cables / IDC Cables

...

Part	Cable Termination	Shielding	Number of Positions	Contact Finish	Number of Rows	Connector Type	Pitch - Cable	Pitch - Cable [custom]	Pitch - Connector	Pitch - Connector	Length	Length	Length
Samtec Inc. TCMD-20-D-10.00-01	IDC	Unshielded	40	Gold	2	Plug to Plug	1 mm	0.039 "	2 mm	0.079 in
Samtec Inc. TCMD-10-T-06.00-01-N-R	IDC	Unshielded	20	Gold	2	Socket to Plug Reversed	1 mm	0.039 "	2 mm	0.079 in
Samtec Inc. TCMD-13-T-04.00-01-N-SR	IDC	Unshielded	26	Gold	2	Socket to Plug	1 mm	0.039 "	2 mm	0.079 in
Samtec Inc. TCMD-03-D-10.00-01	IDC	Unshielded	6	Gold	2	Plug to Plug	1 mm	0.039 "	2 mm	0.079 in
Samtec Inc. TCMD-05-D-19.50-01	IDC	Unshielded	10	Gold	2	Plug to Plug	1 mm	0.039 "	2 mm	0.079 in
Samtec Inc. TCMD-12-T-03.00-01-N	IDC	Unshielded	24	Gold	2	Socket to Plug	1 mm	0.039 "	2 mm	0.079 in
Samtec Inc. TCMD-07-D-04.00-01	IDC	Unshielded	14	Gold	2	Plug to Plug	1 mm	0.039 "	2 mm	0.079 in
Samtec Inc. TCMD-22-T-24.00-01-N	IDC	Unshielded	44	Gold	2	Socket to Plug	1 mm	0.039 "	2 mm	0.079 in
Samtec Inc. TCMD-05-S-36.00-01	IDC	Unshielded	10	Gold	2	Plug to Cable	1 mm	0.039 "	2 mm	0.079 in
Samtec Inc. TCMD-05-T-03.00-01-N	IDC	Unshielded	10	Gold	2	Socket to Plug	1 mm	0.039 "	2 mm	0.079 in	3 "	76.2 mm	0.25 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ribbon Cables / IDC Cables

Technical documentation and resources
