N/MS3057-8A

Active

JAE Electronics

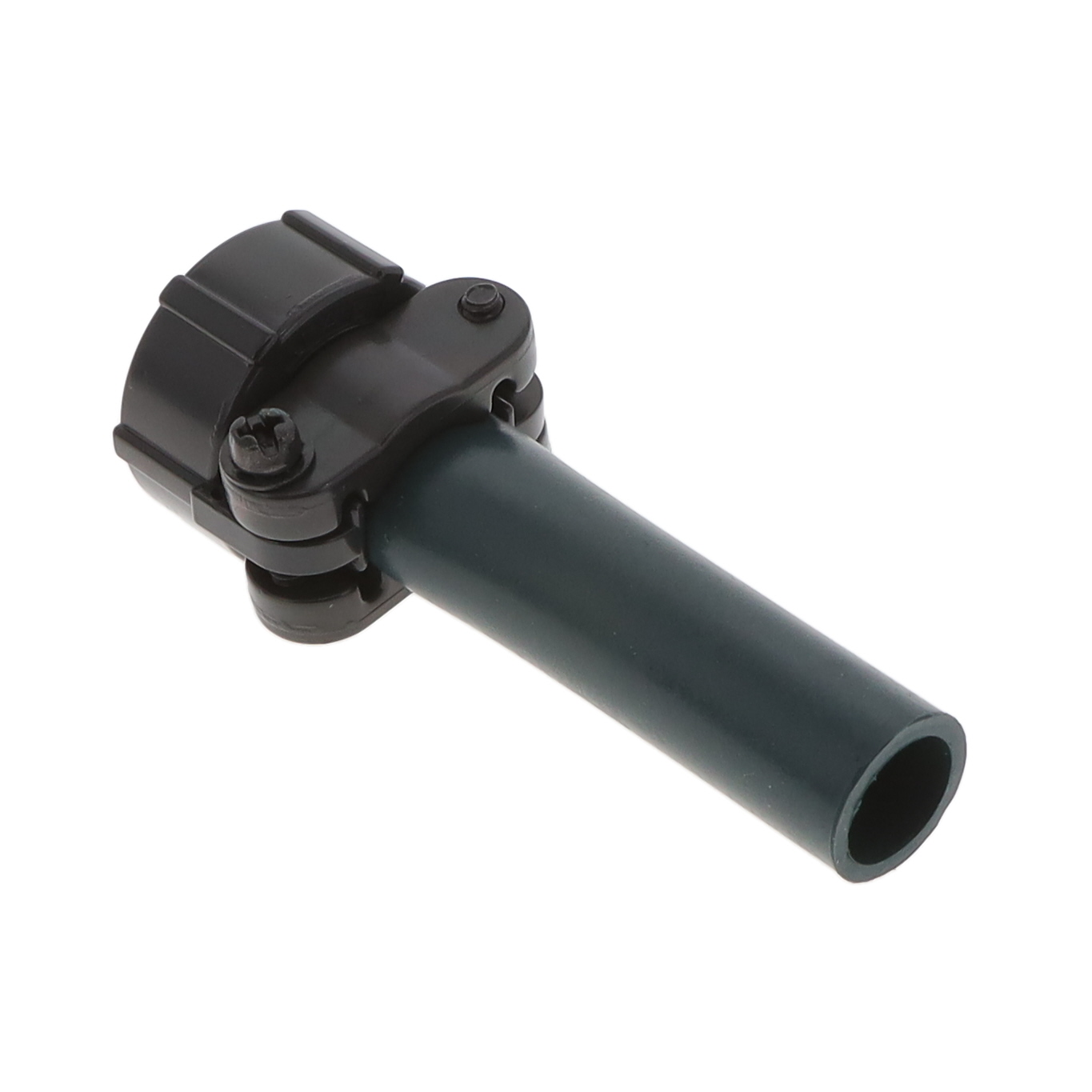

CONNECTOR ACCESSORY, CABLE CLAMP, ALUMINIUM ALLOY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

N/MS3057-8A

Active

JAE Electronics

CONNECTOR ACCESSORY, CABLE CLAMP, ALUMINIUM ALLOY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	N/MS3057-8A

Cable Exit	180 °
Cable Opening [custom]	14.27 mm
Cable Opening [custom]	0.562 in
Color	Black
Diameter - Outside [diameter]	27.79 mm
Diameter - Outside [diameter]	1.094 "
Features	Washers, Bushing, Clamp Screws
For Use With/Related Products	N/MS Series Connectors
Includes	3 pc Cable Clamp, 1 Bushing, 2 Screws, 2 Washers
Material	Aluminum Alloy
Plating	Zinc
Thread Size	7/8-20 UNEF-2B
Type	Cable Clamp

N/MS3057 Series

Part	Color	For Use With/Related Products	Cable Exit	Cable Opening [diameter]	Cable Opening [diameter]	Shell Size - Insert	Plating	Includes	Type	Features	Material	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Thread Size	Cable Opening [custom]	Cable Opening [custom]	Shell Size - Insert
JAE Electronics N/MS3057-4A	Black	N/MS Series Connectors	180 °	0.311 in	7.9 mm	10SL 12 12S	Zinc	1 Bushing 2 Screws 2 Washers 3 pc Cable Clamp	Cable Clamp	Bushing Clamp Screws Washers	Aluminum Alloy
JAE Electronics N/MS3057-12A	Black	N/MS Series Connectors	180 °	0.74 in	18.8 mm	20 22	Zinc	1 Bushing 1 Compression Nut 2 Screws 2 Washers 8 pcs - 2 pc Cable Clamp	Cable Clamp	Bushing Clamp Screws Washers	Aluminum Alloy	1.374 in	34.9 mm	1 3/16-18 UNEF-2B
JAE Electronics N/MS3057-8A	Black	N/MS Series Connectors	180 °				Zinc	1 Bushing 2 Screws 2 Washers 3 pc Cable Clamp	Cable Clamp	Bushing Clamp Screws Washers	Aluminum Alloy	1.094 "	27.79 mm	7/8-20 UNEF-2B	14.27 mm	0.562 in
JAE Electronics N/MS3057-16A	Black	N/MS Series Connectors	180 °			24 28	Zinc	1 Bushing 2 Screws 2 Washers 3 pc Cable Clamp	Cable Clamp	Bushing Clamp Screws Washers	Aluminum Alloy	1.657 in	42.1 mm	1 7/16-18 UNEF-2B	23.83 mm	0.938 in
JAE Electronics N/MS3057-20A	Black	N/MS Series Connectors	180 °	1.252 in	31.8 mm		Zinc	1 Bushing 2 Screws 2 Washers 3 pc Cable Clamp	Cable Clamp	Bushing Clamp Screws Washers	Aluminum Alloy	2.031 "	51.59 mm	1 3/4-18 UNS-2B			32
JAE Electronics N/MS3057-10A	Black	N/MS Series Connectors	180 °				Zinc	1 Bushing 2 Screws 2 Washers 3 pc Cable Clamp	Cable Clamp	Bushing Clamp Screws Washers	Aluminum Alloy	1.189 "	30.2 mm	1-20 UNEF-2B	15.9 mm	0.626 in	18

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.57
		10	$ 7.71
		100	$ 6.89
		1000	$ 5.11

Description

General part information

N/MS3057 Series

Black Connector Cable Clamp 7/8-20 UNEF-2B 16, 16S

Documents

Technical documentation and resources
