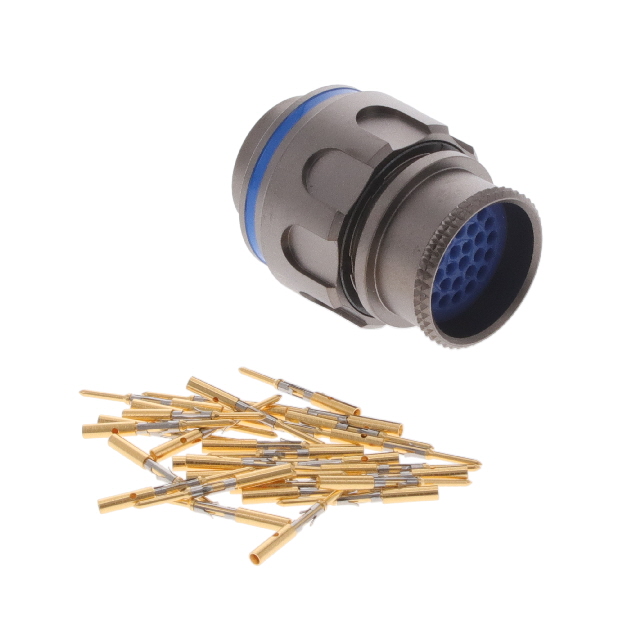

FGN.3M.330.XLCT

Active

LEMO

CONN PLUG MALE 30POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG MALE 30POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FGN.3M.330.XLCT	FGN.3M Series

Applications	Military, Aerospace, Automotive, Aviation	Military, Aerospace, Automotive, Aviation
Cable Opening [custom]	0.591 in	0.591 in
Cable Opening [custom]	15 mm	15 mm
Color	Gray	Gray
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	3.5 A	3.5 A
Features	Coupling Nut	Coupling Nut
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	30	30
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	N	N
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Aluminum Alloy	Aluminum Alloy
Shell Size - Insert	330	330
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

CONN PLUG MALE 30POS GOLD CRIMP

Part	Shielding	Orientation	Ingress Protection	Shell Material	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Features	Connector Type	Mounting Type	Primary Material	Insert Material	Shell Finish	Shell Size - Insert	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Contact Material	Current Rating (Amps)	Contact Finish - Mating	Color	Cable Opening [custom]	Cable Opening [custom]
LEMO FGN.3M.330.XLCM	Shielded	N	IP68 - Dust Tight, Waterproof	Aluminum Alloy	Aerospace, Automotive, Aviation, Military	-55 °C	200 °C	Crimp	Coupling Nut	Male Pins, Plug	Free Hanging (In-Line)	Metal	Polyetheretherketone (PEEK)	Nickel	330	1 µm	39.4 µin	30	Brass	3.5 A	Gold	Gray
LEMO FGN.3M.330.XLCT	Shielded	N	IP68 - Dust Tight, Waterproof	Aluminum Alloy	Aerospace, Automotive, Aviation, Military	-55 °C	200 °C	Crimp	Coupling Nut	Male Pins, Plug	Free Hanging (In-Line)	Metal	Polyetheretherketone (PEEK)	Nickel	330	1 µm	39.4 µin	30	Brass	3.5 A	Gold	Gray	0.591 in	15 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Position Circular Connector Plug, Male Pins Crimp
