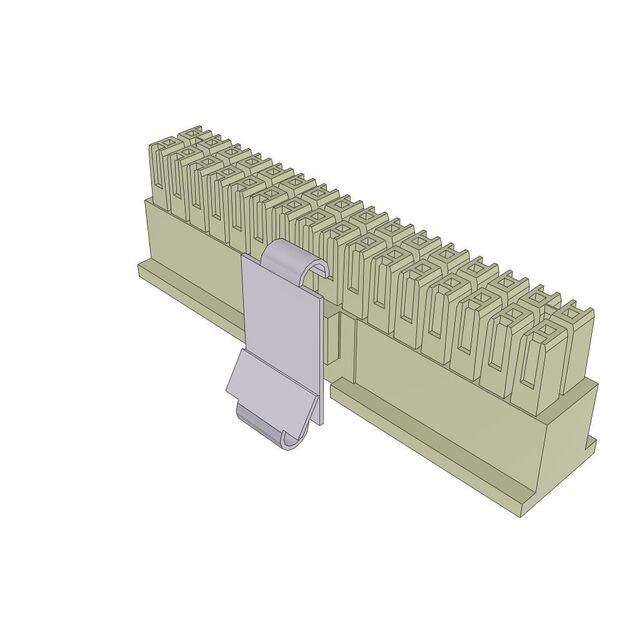

IPD1-16-D-K-M

Active

Samtec Inc.

CONN RCPT HSG 32POS 2.54MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT HSG 32POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Part	Fastening Type	Note	Row Spacing [x]	Row Spacing	Pitch [x]	Pitch [x]	Contact Type	Contact Termination	Insulation Material	Color	Mounting Type	Number of Rows	Connector Type	Features	Number of Positions
Samtec Inc. IPD1-16-D-K	Latch Lock	Contacts Not Included	0.1 in	2.54 mm	2.54 mm	0.1 in	Female Socket	Crimp	Polyamide (PA66) Nylon 6/6	White	Free Hanging (In-Line)	2	Receptacle	Polarizing Key
Samtec Inc. IPD1-16-D-GP	Latch Lock	Contacts Not Included	0.1 in	2.54 mm	2.54 mm	0.1 in	Female Socket	Crimp	Polyamide (PA66) Nylon 6/6	White	Free Hanging (In-Line)	2	Receptacle	Guide Post
Samtec Inc. IPD1-16-D-P	Latch Lock	Contacts Not Included	0.1 in	2.54 mm	2.54 mm	0.1 in	Female Socket	Crimp	Polyamide (PA66) Nylon 6/6	White	Free Hanging (In-Line)	2	Receptacle	Polarizing Key
Samtec Inc. IPD1-16-S-K-M	Latch Lock	Contacts Not Included			2.54 mm	0.1 in	Female Socket	Crimp	Polyamide (PA66) Nylon 6/6	White	Free Hanging (In-Line)	1	Receptacle	Polarizing Key	16
Samtec Inc. IPD1-16-D-K-M	Latch Lock	Contacts Not Included	0.1 in	2.54 mm	2.54 mm	0.1 in	Female Socket	Crimp	Polyamide (PA66) Nylon 6/6	White	Free Hanging (In-Line)	2	Receptacle	Polarizing Key
Samtec Inc. IPD1-16-D-R	Latch Lock	Contacts Not Included	0.1 in	2.54 mm	2.54 mm	0.1 in	Female Socket	Crimp	Polyamide (PA66) Nylon 6/6	White	Free Hanging (In-Line)	2	Receptacle
