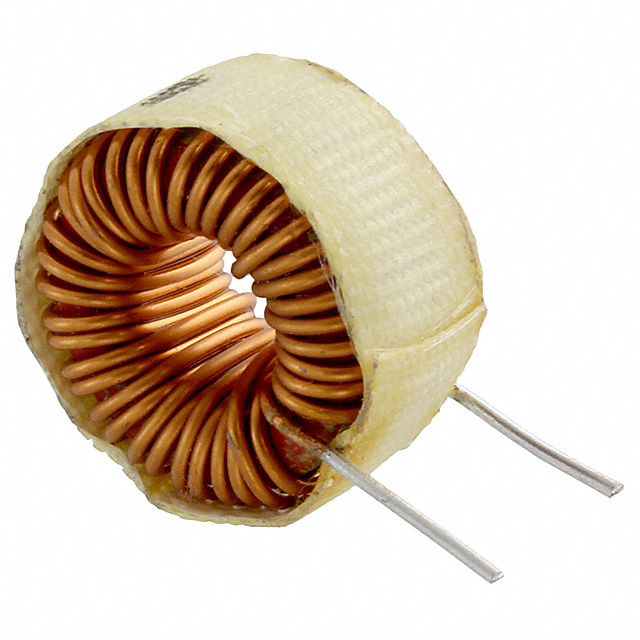

2000-270-H-RC

Active

Bourns Inc.

INDUCTOR, TOROIDAL /TRAY PACKAGING ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2000-270-H-RC

Active

Bourns Inc.

INDUCTOR, TOROIDAL /TRAY PACKAGING ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	360	$ 1.36
Newark	Each	100	$ 1.55
		500	$ 1.40
		1000	$ 1.21
		2500	$ 1.09

Description

General part information

2000 Series

27 µH Unshielded Toroidal Inductor 4.1 A 39mOhm Max Radial, Horizontal (Open)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2000-270-H-RC	2000 Series

Current Rating (Amps)	4.1 A	3.2 - 20.2 A
DC Resistance (DCR)	39 mOhm	2 - 64 mOhm
DC Resistance (DCR)	-	1.7 - 54 mOhm
Height - Seated (Max) [Max]	0.41 in	0.41 in
Height - Seated (Max) [Max]	10.41 mm	10.41 mm
Inductance	27 µH	1.2 - 47 µH
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Radial, Horizontal (Open)	Radial, Vertical (Open), Radial, Horizontal (Open)
Shielding	Unshielded	Unshielded
Size / Dimension	-	0.68 "
Size / Dimension	-	17.27 mm
Size / Dimension	-	10.41 mm
Size / Dimension	-	0.41 "
Tolerance	15 %	15 - 20 %
Type	Toroidal	Toroidal

2000 Series

FIXED IND 1.5UH 18.7A 2 MOHM TH

Part	Inductance	Shielding	DC Resistance (DCR)	Operating Temperature [Max]	Operating Temperature [Min]	Type	Tolerance	Package / Case	Mounting Type	Current Rating (Amps)	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]
Bourns Inc. 2000-1R5-V-RC	1.5 µH	Unshielded	2 mOhm	105 ░C	-55 °C	Toroidal	20 %	Radial, Vertical (Open)	Through Hole	18.7 A	0.68 "	17.27 mm	10.41 mm	0.41 "
Bourns Inc. 2000-330-H-RC	33 µH	Unshielded		105 ░C	-55 °C	Toroidal	15 %	Radial, Horizontal (Open)	Through Hole	3.5 A					0.41 in	10.41 mm	54 mOhm
Bourns Inc. 2000-270-H-RC	27 µH	Unshielded	39 mOhm	105 ░C	-55 °C	Toroidal	15 %	Radial, Horizontal (Open)	Through Hole	4.1 A					0.41 in	10.41 mm
Bourns Inc. 2000-180-V-RC	18 µH	Unshielded		105 ░C	-55 °C	Toroidal	15 %	Radial, Vertical (Open)	Through Hole	4.5 A	0.68 "	17.27 mm	10.41 mm	0.41 "			32 mOhm
Bourns Inc. 2000-270-V-RC	27 µH	Unshielded	39 mOhm	105 ░C	-55 °C	Toroidal	15 %	Radial, Vertical (Open)	Through Hole	4.1 A	0.68 "	17.27 mm	10.41 mm	0.41 "
Bourns Inc. 2000-4R7-V-RC	4.7 ÁH	Unshielded		105 ░C	-55 °C	Toroidal	20 %	Radial, Vertical (Open)	Through Hole	10.1 A	0.68 "	17.27 mm	10.41 mm	0.41 "			6.4 mOhm
Bourns Inc. 2000-150-H-RC	15 µH	Unshielded		105 ░C	-55 °C	Toroidal	15 %	Radial, Horizontal (Open)	Through Hole	4.7 A					0.41 in	10.41 mm	29 mOhm
Bourns Inc. 2000-4R7-H-RC	4.7 ÁH	Unshielded		105 ░C	-55 °C	Toroidal	20 %	Radial, Horizontal (Open)	Through Hole	10.1 A					0.41 in	10.41 mm	6.4 mOhm
Bourns Inc. 2000-2R7-H-RC	2.7 µH	Unshielded		105 ░C	-55 °C	Toroidal	20 %	Radial, Horizontal (Open)	Through Hole	14.7 A					0.41 in	10.41 mm	3 mOhm
Bourns Inc. 2000-5R6-V-RC	5.6 µH	Unshielded		105 ░C	-55 °C	Toroidal	20 %	Radial, Vertical (Open)	Through Hole	9.7 A	0.68 "	17.27 mm	10.41 mm	0.41 "			6.9 mOhm
