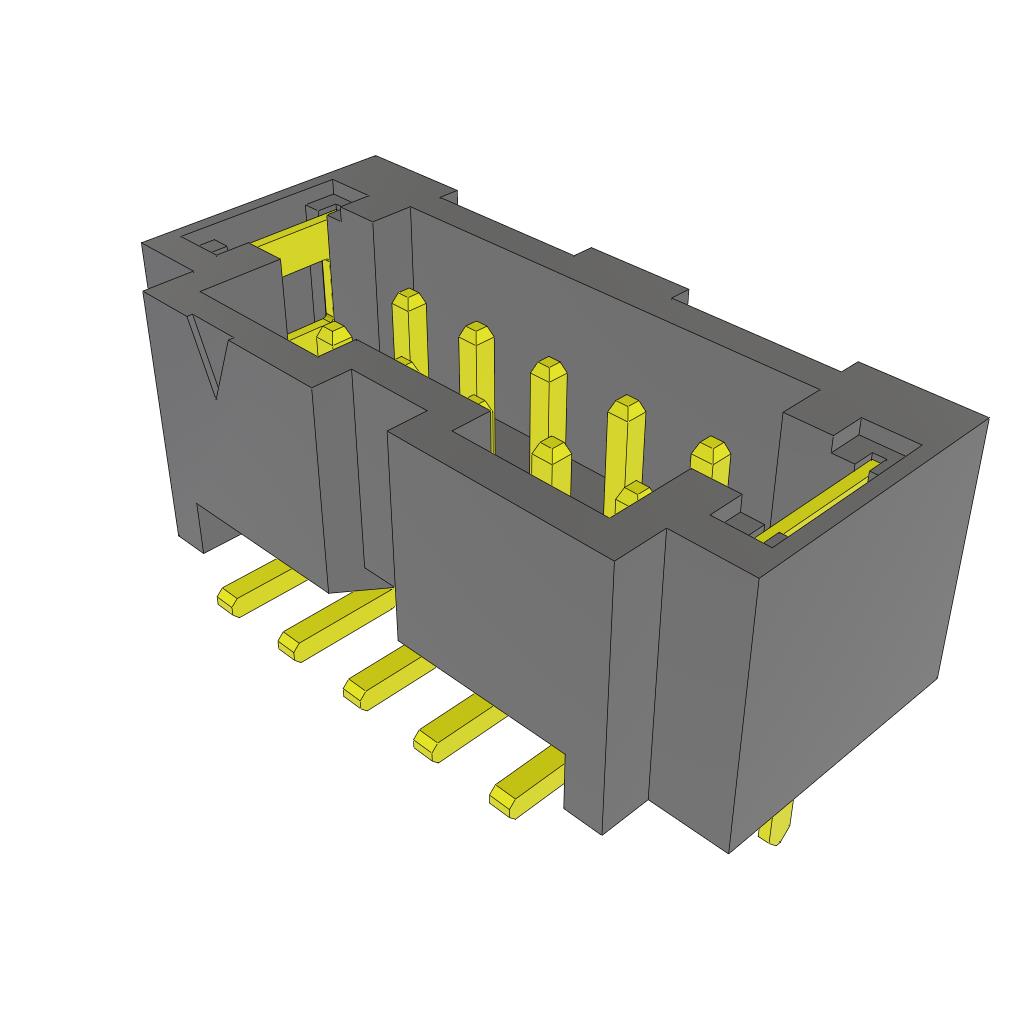

T2M-105-01-S-D-SM-WT - T2M-105-01-S-D-SM-WT

T2M-105-01-S-D-SM-WT

Active
Samtec Inc.

CONN HEADER SMD 10POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHigh Reliability Tiger Eye™ Discrete Wire Header, 2.00 mm PitchDatasheet+2
T2M-105-01-S-D-SM-WT - T2M-105-01-S-D-SM-WT

T2M-105-01-S-D-SM-WT

Active
Samtec Inc.

CONN HEADER SMD 10POS 2MM

Deep-Dive with AI

DocumentsHigh Reliability Tiger Eye™ Discrete Wire Header, 2.00 mm PitchDatasheet+2

Technical Specifications

Parameters and characteristics for this part

SpecificationT2M-105-01-S-D-SM-WT
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating30 Áin
Contact Finish Thickness - Mating0.76 Ám
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)3.8 A
Fastening TypePush-Pull
FeaturesSolder Retention
Insulation ColorBlack
Insulation Height5.8 mm
Insulation Height0.228 in
Insulation MaterialLiquid Crystal Polymer (LCP)
Mounting TypeSurface Mount
Number of Positions10
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating [x]0.079 in
Pitch - Mating [x]2 mm
Row Spacing - Mating0.079 in
Row Spacing - Mating2 mm
ShroudingShrouded - 4 Wall
StyleBoard to Board, Cable
TerminationSolder

T2M-105 Series

PartConnector TypeStyleNumber of PositionsContact MaterialContact TypeNumber of Positions LoadedOperating Temperature [Min]Operating Temperature [Max]TerminationContact Finish - MatingNumber of RowsContact Finish - PostInsulation MaterialMounting TypeInsulation HeightInsulation HeightRow Spacing - MatingRow Spacing - MatingInsulation ColorCurrent Rating (Amps)Pitch - Mating [x]Pitch - Mating [x]FeaturesContact Finish Thickness - MatingContact Finish Thickness - MatingFastening TypeContact ShapeShroudingOverall Contact LengthOverall Contact LengthContact Length - PostContact Length - PostInsulation Height [z]Insulation Height [z]
Samtec Inc.
T2M-105-01-S-D-SM-DS-TR
Header
Board to Board
Cable
10
Phosphor Bronze
Male Pin
All
-55 °C
125 °C
Solder
Gold
2
Tin
Liquid Crystal Polymer (LCP)
Surface Mount
5.8 mm
0.228 in
0.079 in
2 mm
Black
3.8 A
0.079 in
2 mm
Mating Flange
30 Áin
0.76 Ám
Push-Pull
Square
Shrouded - 4 Wall
Samtec Inc.
T2M-105-01-L-D-TH-DS
Header
Board to Board
Cable
10
Phosphor Bronze
Male Pin
All
-55 °C
125 °C
Solder
Gold
2
Tin
Liquid Crystal Polymer (LCP)
Through Hole
5.8 mm
0.228 in
0.079 in
2 mm
Black
3.8 A
0.079 in
2 mm
Mating Flange
10 çin
0.25 çm
Push-Pull
Square
Shrouded - 4 Wall
0.302 in
7.67 mm
0.117 in
2.97 mm
Samtec Inc.
T2M-105-01-S-D-SM-WT-K-TR
Header
Board to Board
Cable
10
Phosphor Bronze
Male Pin
All
-55 °C
125 °C
Solder
Gold
2
Tin
Liquid Crystal Polymer (LCP)
Surface Mount
5.8 mm
0.228 in
0.079 in
2 mm
Black
3.8 A
0.079 in
2 mm
Pick and Place
Solder Retention
30 Áin
0.76 Ám
Push-Pull
Square
Shrouded - 4 Wall
Samtec Inc.
T2M-105-01-L-D-SM-K-TR
Header
Board to Board
Cable
10
Phosphor Bronze
Male Pin
All
-55 °C
125 °C
Solder
Gold
2
Tin
Liquid Crystal Polymer (LCP)
Surface Mount
5.8 mm
0.228 in
0.079 in
2 mm
Black
3.8 A
0.079 in
2 mm
Pick and Place
10 çin
0.25 çm
Push-Pull
Square
Shrouded - 4 Wall
Samtec Inc.
T2M-105-01-S-D-TH-DS
Header
Board to Board
Cable
10
Phosphor Bronze
Male Pin
All
-55 °C
125 °C
Solder
Gold
2
Tin
Liquid Crystal Polymer (LCP)
Through Hole
5.8 mm
0.228 in
0.079 in
2 mm
Black
3.8 A
0.079 in
2 mm
Mating Flange
30 Áin
0.76 Ám
Push-Pull
Square
Shrouded - 4 Wall
0.302 in
7.67 mm
0.117 in
2.97 mm
Samtec Inc.
T2M-105-01-S-D-SM
Header
Board to Board
Cable
10
Phosphor Bronze
Male Pin
All
-55 °C
125 °C
Solder
Gold
2
Tin
Liquid Crystal Polymer (LCP)
Surface Mount
5.8 mm
0.228 in
0.079 in
2 mm
Black
3.8 A
0.079 in
2 mm
30 Áin
0.76 Ám
Push-Pull
Square
Shrouded - 4 Wall
Samtec Inc.
T2M-105-01-S-D-SM-WT-K
Header
Board to Board
Cable
10
Phosphor Bronze
Male Pin
All
-55 °C
125 °C
Solder
Gold
2
Tin
Liquid Crystal Polymer (LCP)
Surface Mount
5.8 mm
0.228 in
0.079 in
2 mm
Black
3.8 A
0.079 in
2 mm
Pick and Place
Solder Retention
30 Áin
0.76 Ám
Push-Pull
Square
Shrouded - 4 Wall
Samtec Inc.
T2M-105-01-S-D-SM-WT
Header
Board to Board
Cable
10
Phosphor Bronze
Male Pin
All
-55 °C
125 °C
Solder
Gold
2
Tin
Liquid Crystal Polymer (LCP)
Surface Mount
5.8 mm
0.228 in
0.079 in
2 mm
Black
3.8 A
0.079 in
2 mm
Solder Retention
30 Áin
0.76 Ám
Push-Pull
Square
Shrouded - 4 Wall
Samtec Inc.
T2M-105-01-S-D-RA
Header
Board to Board
Cable
10
Phosphor Bronze
Male Pin
All
-55 °C
125 °C
Solder
Gold
2
Tin
Liquid Crystal Polymer (LCP)
Through Hole
Right Angle
0.079 in
2 mm
Black
3.8 A
0.079 in
2 mm
30 Áin
0.76 Ám
Push-Pull
Square
Shrouded - 4 Wall
0.09 "
2.29 mm
7.44 mm
0.293 in
Samtec Inc.
T2M-105-01-L-D-SM-DS
Header
Board to Board
Cable
10
Phosphor Bronze
Male Pin
All
-55 °C
125 °C
Solder
Gold
2
Tin
Liquid Crystal Polymer (LCP)
Surface Mount
5.8 mm
0.228 in
0.079 in
2 mm
Black
3.8 A
0.079 in
2 mm
Mating Flange
10 çin
0.25 çm
Push-Pull
Square
Shrouded - 4 Wall

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 1$ 4.82
25$ 4.36
50$ 4.05
100$ 3.86
500$ 3.60

Description

General part information

T2M-105 Series

Connector Header Surface Mount 10 position 0.079" (2.00mm)
